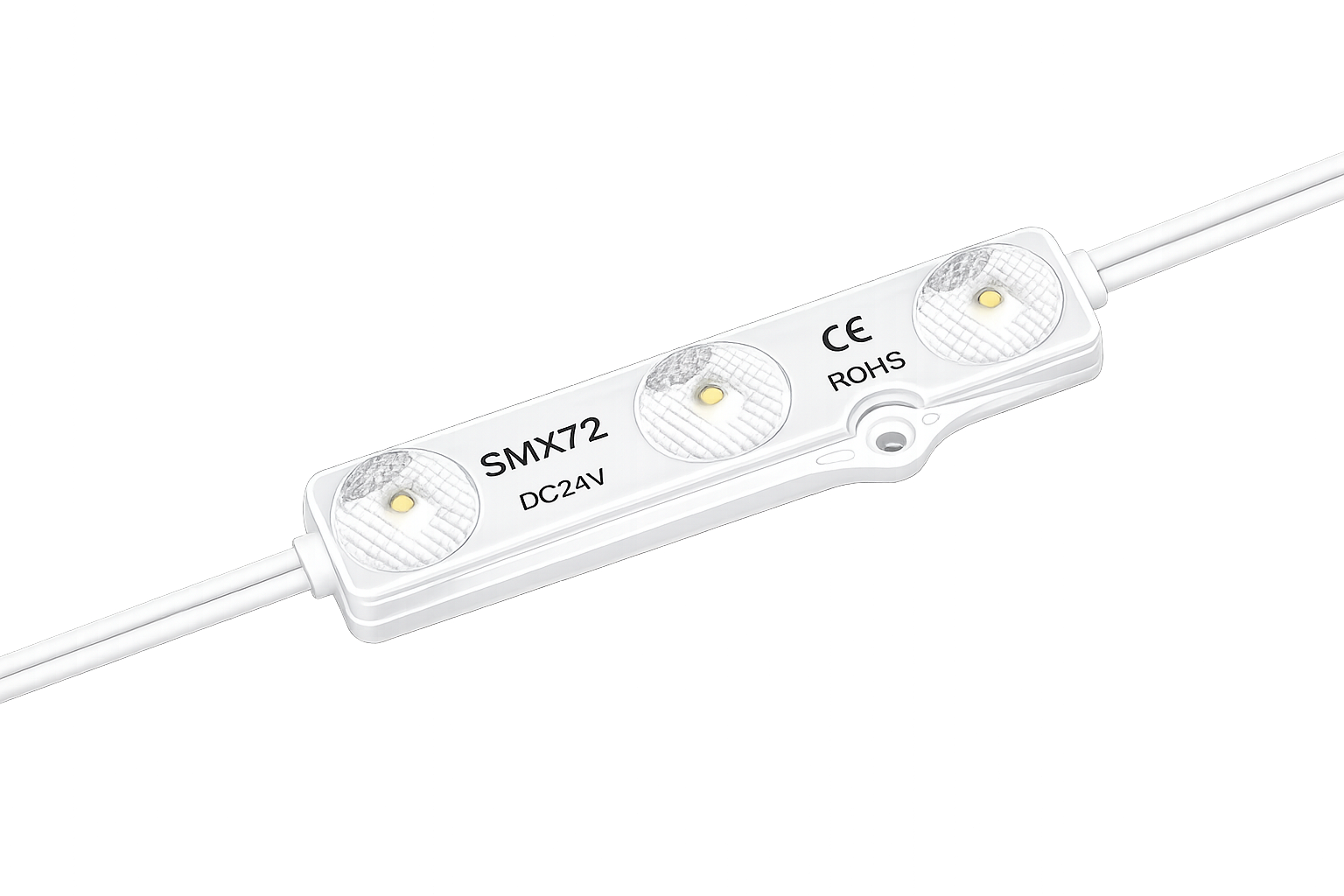

Signage White Module
72
The SMX72 is a compact, white-only LED module for signage, light boxes, and shallow illuminated surfaces, with an integrated lens for consistent diffusion. IP66-rated with UV-resistant housing and simple PWM control — individually cuttable, adhesive or screw mounted for depth-critical 10–25 cm installs.
| Electrical | |
|---|---|
| Power Consumption | 1.08 W / pc (White) |
| Operating Voltage | 24 V DC |
| Operating Temperature | −20°C to +60°C (−4°F to +140°F) |
| Storage Temperature | −20°C to +70°C (−4°F to +158°F) |
| Physical | |
| Module Dimensions | 72 mm (L) × 20 mm (W) × 10.2 mm (H) |
| LED Qty / pc | 3 LEDs |
| CRI | 70+ |
| Mounting Options | Adhesive Tape, Screws |
| Max Run | 70 pcs |
| Standard Run | 60 pcs |
| Spacing | 153 mm (centre to centre) |
| Optical | |
| Beam Angle | 175° |
| LED Type | SMD LEDs |
| Colour Range |
White
|
| White CCT |
3000K
4000K
5000K
6000K
6500K
7000K
8000K
9000K
10000K
|
| Luminous Flux | 216 lm / pc |
| Control | |
| Control Protocols | PWM ON/OFF |
| Ratings | |
| Ingress Rating |
IP66
|
| Warranty | 5 Years (Extendable Warranty Available) |
Note: Specification summary for quick evaluation and layout planning. Module quantity, CCT, and run length are configurable to suit your white signage installation.
