Booster Pair
T/R

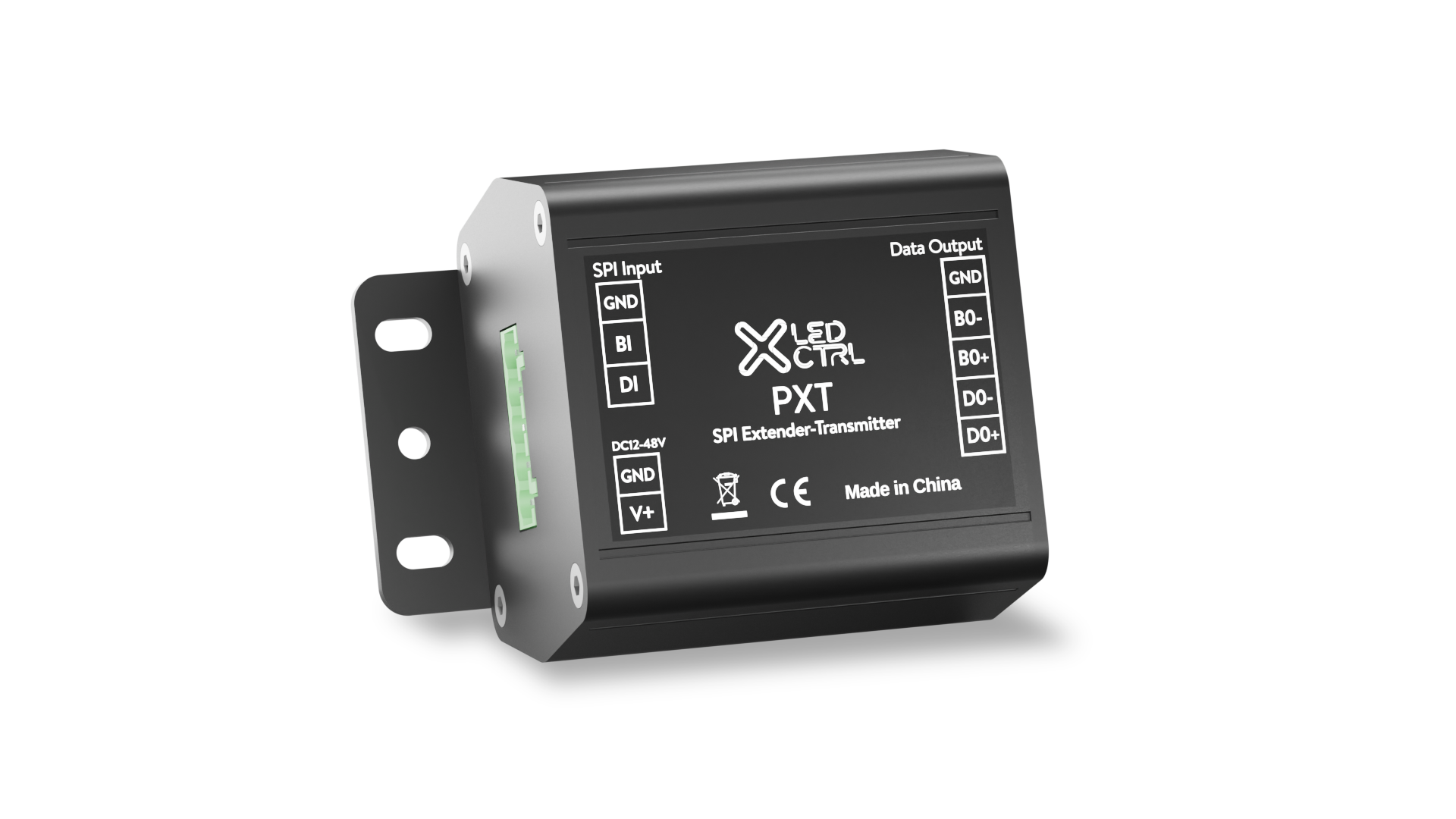

SPI extender pair. The PXT/R transmitter and receiver convert standard SPI signals to differential X-Stream and back — extending pixel data up to 100 m with redundant data lines, a wide 12–48 V DC input and a compact footprint that drops into any installation.
| Function | |
|---|---|
| Signal |
X-Stream
SPI
|
| Range | Up to 100 m between PXT and PXR |
| PXT Path | SPI / X-Stream input → X-Stream differential output |
| PXR Path | X-Stream differential input → SPI / X-Stream output |
| Data Inputs | D1 standard + B1 backup (data redundancy) |
| Power | |
| Input Voltage | 12–48 V DC |
| Max Current | 6 A per unit |
| Physical | |
| Dimensions | 93 × 64.6 × 30 mm (each unit, incl. mounting tabs) |
| IP Rating | IP20 · indoor |
| Mounting | Surface (4× Ø4.5 mm holes) |
| Box Contents | |
| Pair | 1× PXT transmitter + 1× PXR receiver |
Note: Specifications listed for quick evaluation and integration planning. Both PXT and PXR units share identical electrical specs — differing only in their input/output role.
