C 10

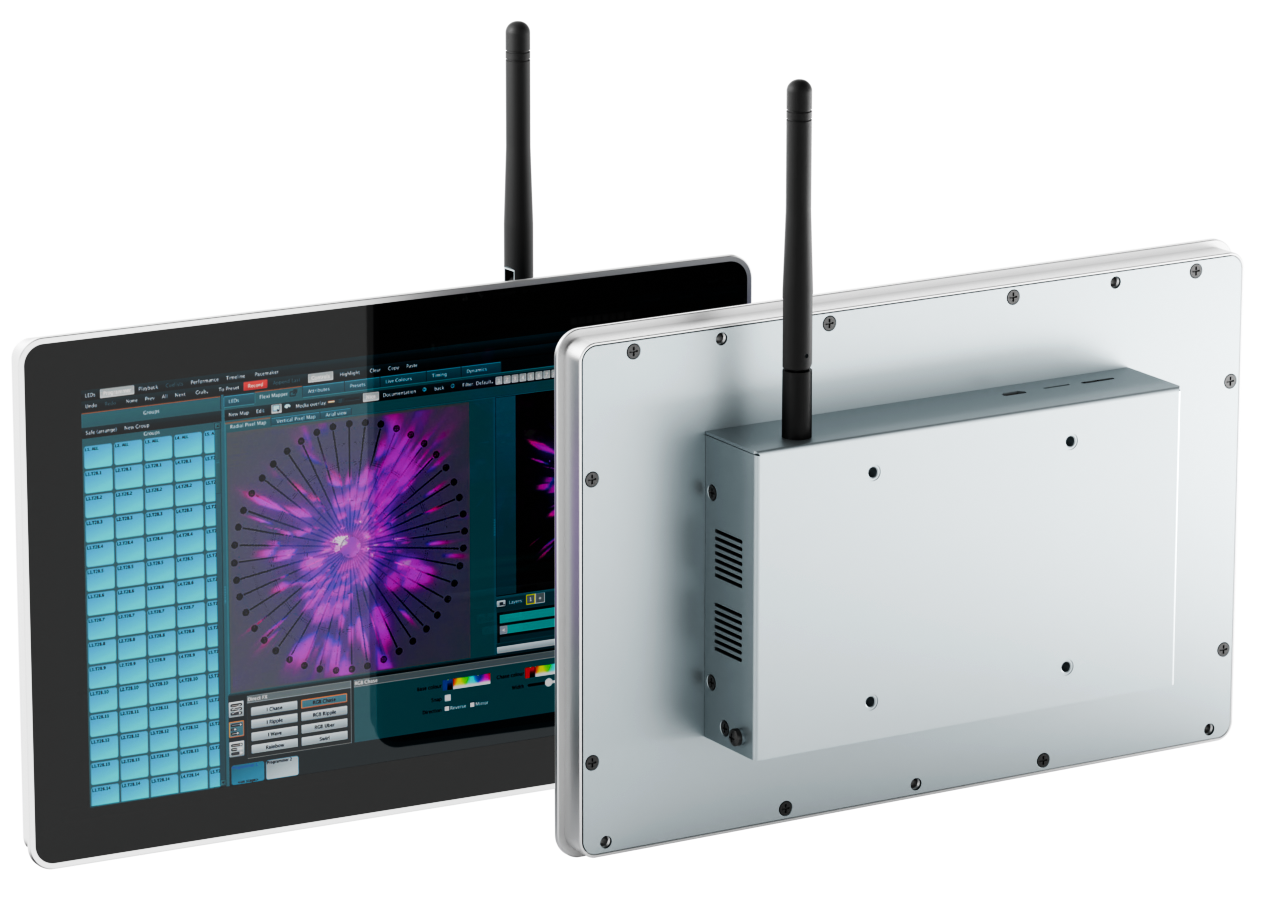

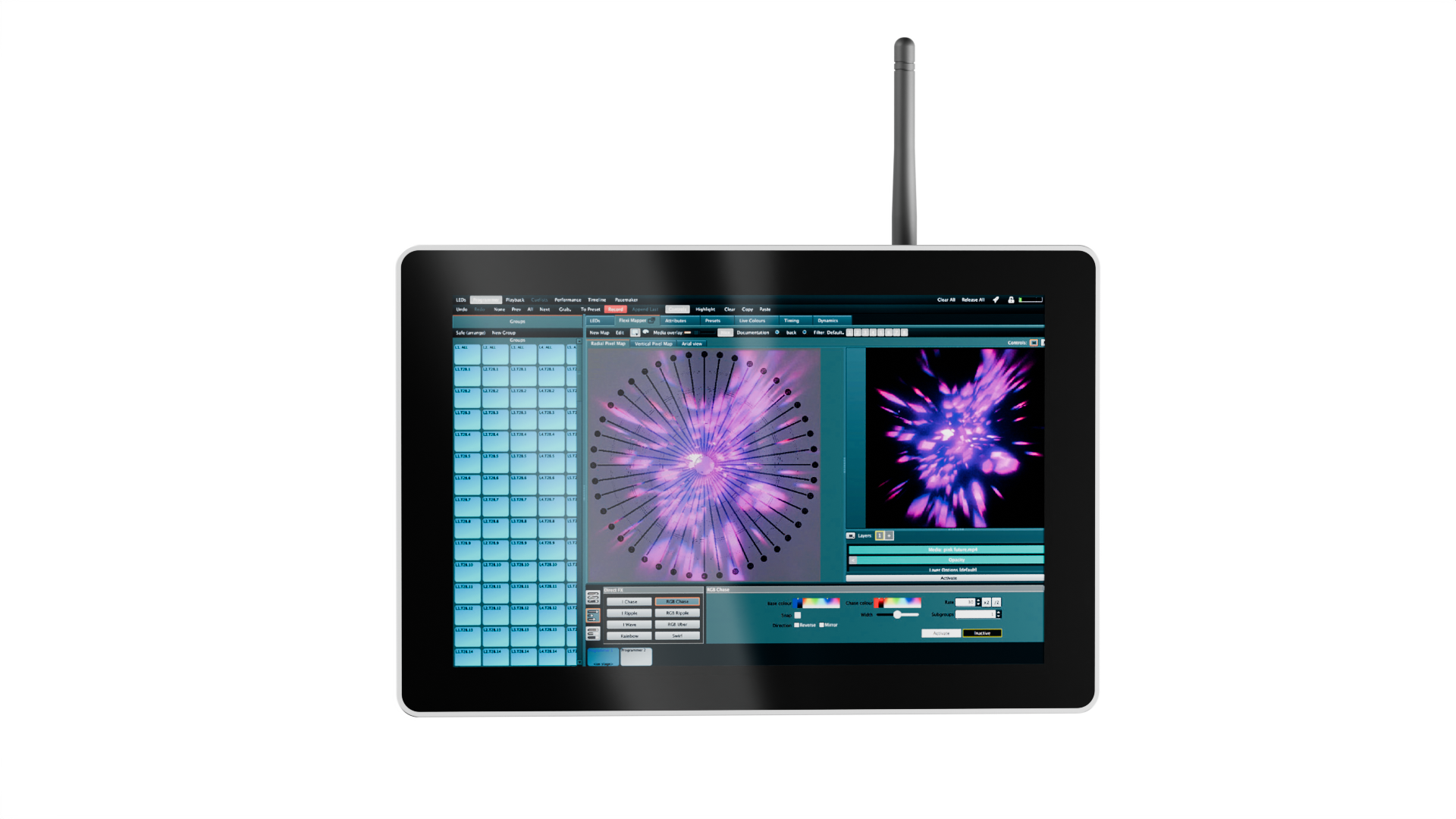

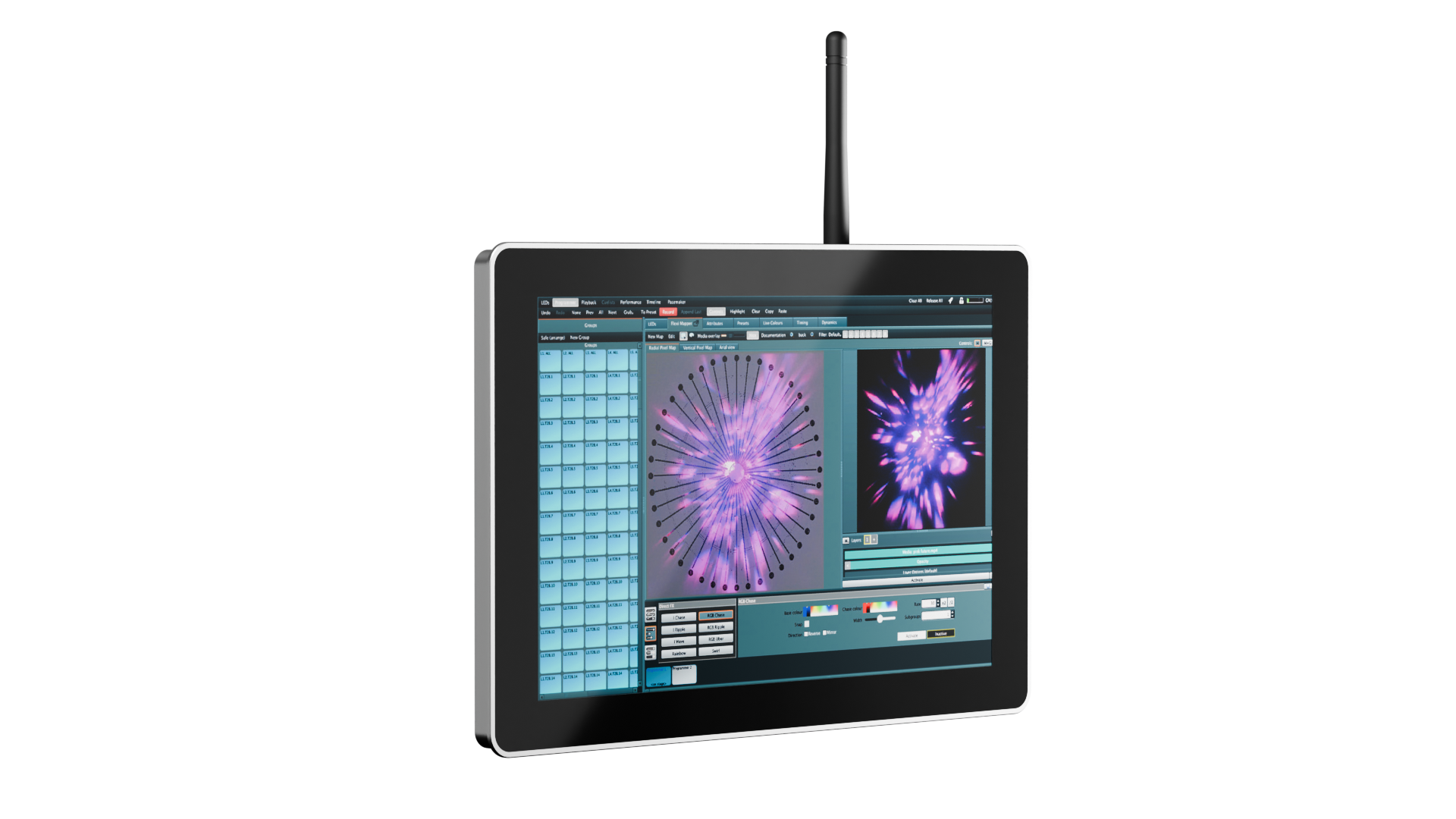

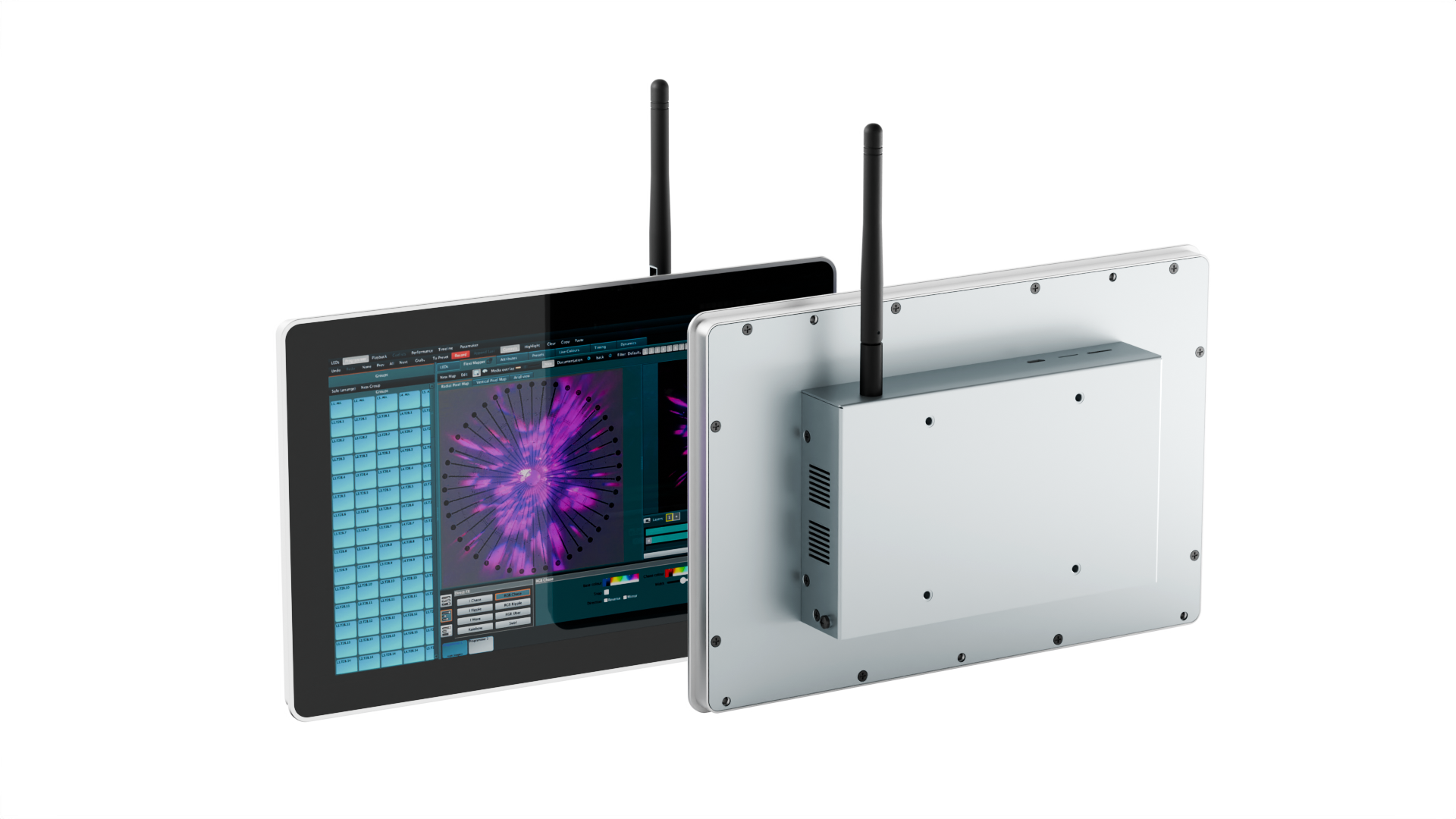

Compact and pre-configured, the CX10 is a computing head-end unit optimised for LED CTRL projects, delivering reliable out-of-the-box performance backed by a 3-year warranty and support.

10″ Capacitive Touch
10 Universes License
Dual-band Wi-Fi/BLE + Antenna
2× Ethernet (GbE + 100M)

Features Specifications Downloads Accessories

CX10 Standalone Compute Unit Key Specifications

Led Ctrl 10 Universe License Installed
128 GB NVMe SSD and 16 GB eMMC, expandable via micro-SD slot for additional storage.
Dual Ethernet ports (1× Gigabit & 1× Fast Ethernet) with built-in surge protection.
Four serial control ports: two isolated RS-485 and two RS-232 with ESD protection.
Two USB 2.0 Type-A and one HDMI 2.1 output supporting up to 4K 60 Hz.
10.1" capacitive touchscreen (1280×800) with 6H hardness and wide viewing angles.
9–36 V DC input via screw terminal; max 24 W consumption; includes universal AC adapter.
Weight: 1.2 kg.
Dimensions: 258 × 172 × 42 mm (W × D × H, excluding antennas).
Mounting: Table placement or VESA wall mount compatible.
Operating range: –20 °C to +60 °C; 5–95 % RH (non-condensing).
Wireless: Dual-band Wi-Fi, Bluetooth 5.0, optional 4G LTE via NanoSIM.
Hardware firewall, secure boot, FCC (NA) and CE (EU) certified.
On-board temperature and voltage sensors for real-time monitoring.
Integrated real-time clock (RTC) with battery backup option for precise scheduling.

CX10 Standalone Compute Unit Key Specifications

Led Ctrl 10 Universe License Installed
128 GB NVMe SSD and 16 GB eMMC, expandable via micro-SD slot for additional storage.
Dual Ethernet ports (1× Gigabit & 1× Fast Ethernet) with built-in surge protection.
Four serial control ports: two isolated RS-485 and two RS-232 with ESD protection.
Two USB 2.0 Type-A and one HDMI 2.1 output supporting up to 4K 60 Hz.
10.1" capacitive touchscreen (1280×800) with 6H hardness and wide viewing angles.
9–36 V DC input via screw terminal; max 24 W consumption; includes universal AC adapter.
Weight: 1.2 kg.
Dimensions: 258 × 172 × 42 mm (W × D × H, excluding antennas).
Mounting: Table placement or VESA wall mount compatible.
Operating range: –20 °C to +60 °C; 5–95 % RH (non-condensing).
Wireless: Dual-band Wi-Fi, Bluetooth 5.0, optional 4G LTE via NanoSIM.
Hardware firewall, secure boot, FCC (NA) and CE (EU) certified.
On-board temperature and voltage sensors for real-time monitoring.
Integrated real-time clock (RTC) with battery backup option for precise scheduling.

CX10 Standalone Compute Unit Key Specifications

Led Ctrl 10 Universe License Installed
128 GB NVMe SSD and 16 GB eMMC, expandable via micro-SD slot for additional storage.
Dual Ethernet ports (1× Gigabit & 1× Fast Ethernet) with built-in surge protection.
Four serial control ports: two isolated RS-485 and two RS-232 with ESD protection.
Two USB 2.0 Type-A and one HDMI 2.1 output supporting up to 4K 60 Hz.
10.1" capacitive touchscreen (1280×800) with 6H hardness and wide viewing angles.
9–36 V DC input via screw terminal; max 24 W consumption; includes universal AC adapter.
Weight: 1.2 kg.
Dimensions: 258 × 172 × 42 mm (W × D × H, excluding antennas).
Mounting: Table placement or VESA wall mount compatible.
Operating range: –20 °C to +60 °C; 5–95 % RH (non-condensing).
Wireless: Dual-band Wi-Fi, Bluetooth 5.0, optional 4G LTE via NanoSIM.
Hardware firewall, secure boot, FCC (NA) and CE (EU) certified.
On-board temperature and voltage sensors for real-time monitoring.
Integrated real-time clock (RTC) with battery backup option for precise scheduling.

CX10 Standalone Compute Unit Downloads

Specifications

CX10_Specifications_Sheet.pdf
