D 10

The DX10 is a compact 1U half-rack converter delivering 10 universes of DMX/RDM from Art-Net or sACN, featuring dual power options (PoE or 12–24 V DC), mirrored service ports, RJ45 DMX outputs, and simple web-based configuration.

  • 10 DMX/RDM Ports
  • Art-Net / sACN / eDMX
  • HTP/LTP 2-Source Merge
  • PoE or 12–24 V DC

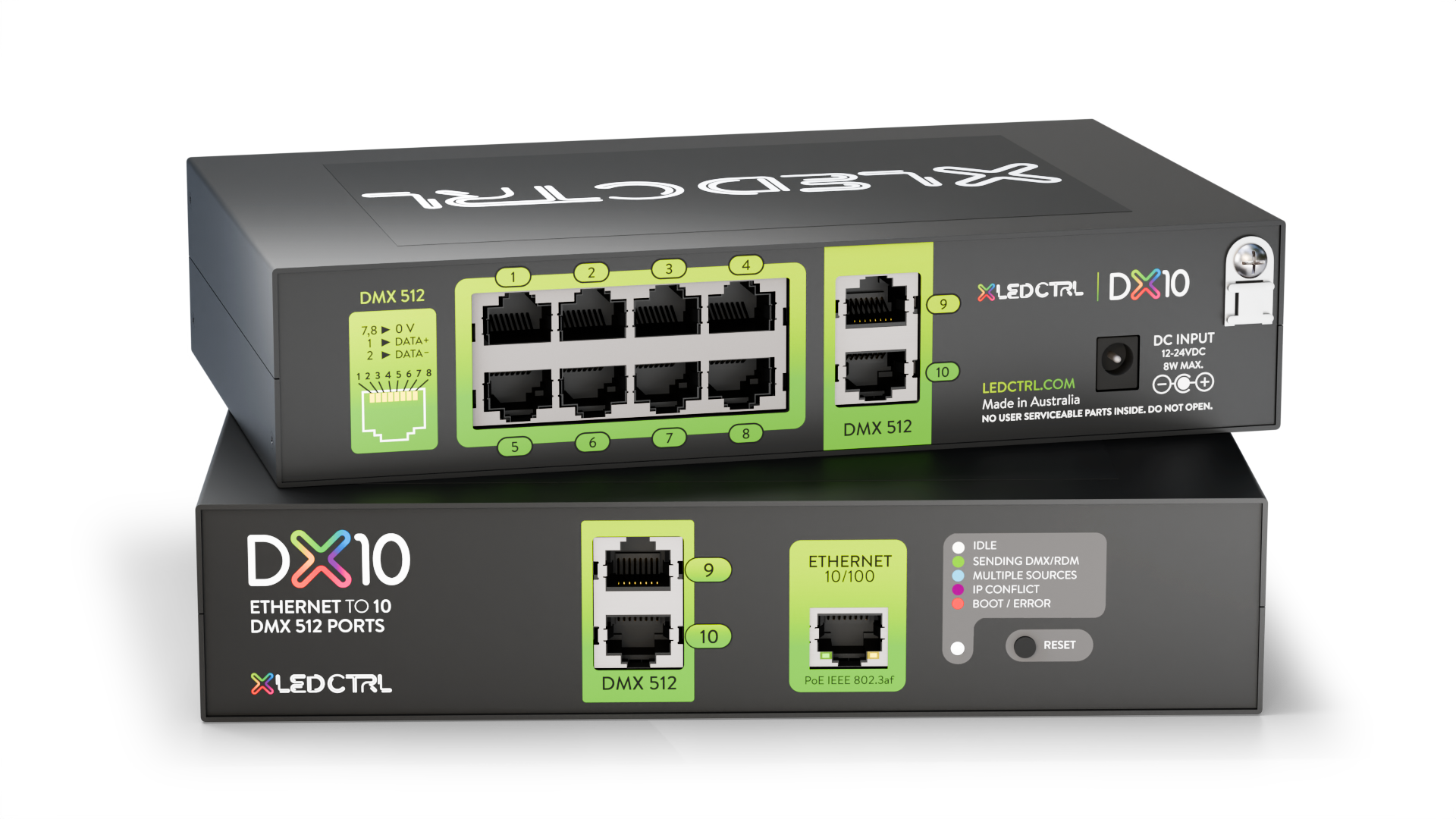

DX10 gateway render

DX10 Key Specifications

  • 10-port Ethernet-DMX/RDM gateway supporting Art-Net, sACN & ESP protocols
  • Up to 10 rear + 2 front-facing DMX/RDM outputs (RJ45)
  • 1× 10/100 Mbps Ethernet input with LED link/activity indicator
  • DHCP or static IP configuration; default 192.168.0.10
  • Dual power: PoE (IEEE 802.3af) or 12–24 V DC with surge & reverse-polarity protection
  • HTP/LTP merging of up to 2 Ethernet-DMX sources
  • Web-based interface for configuration, firmware updates & real-time status monitoring
  • Max output channels: 5.120 (10 universes of DMX512)
  • Operating: –20 °C to +50 °C; 5 %–95 % RH (non-condensing)
  • Enclosure: ABS & anodised aluminium; IP20 rating
  • Dimensions: 200 × 120 × 42 mm (L × W × H); Weight: 0.46 kg/1.01 lbs
DX10 Top view dimensions DX10 Side view dimensions DX10 Mounting dimensions

DX10 Key Specifications

  • 10-port Ethernet-DMX/RDM gateway supporting Art-Net, sACN & ESP protocols
  • Up to 10 rear + 2 front-facing DMX/RDM outputs (RJ45)
  • 1× 10/100 Mbps Ethernet input with LED link/activity indicator
  • DHCP or static IP configuration; default 192.168.0.10
  • Dual power: PoE (IEEE 802.3af) or 12–24 V DC with surge & reverse-polarity protection
  • HTP/LTP merging of up to 2 Ethernet-DMX sources
  • Web-based interface for configuration, firmware updates & real-time status monitoring
  • Max output channels: 5.120 (10 universes of DMX512)
  • Operating: –20 °C to +50 °C; 5 %–95 % RH (non-condensing)
  • Enclosure: ABS & anodised aluminium; IP20 rating
  • Dimensions: 200 × 120 × 42 mm (L × W × H); Weight: 0.46 kg / 1.01 lbs
DX10 Top view dimensions
DX10 Side view dimensions
DX10 Mounting dimensions

DX10 Key Specifications

  • 10-port Ethernet-DMX/RDM gateway supporting Art-Net, sACN & ESP protocols
  • Up to 10 rear + 2 front-facing DMX/RDM outputs (RJ45)
  • 1× 10/100 Mbps Ethernet input with LED link/activity indicator
  • DHCP or static IP configuration; default 192.168.0.10
  • Dual power: PoE (IEEE 802.3af) or 12–24 V DC with surge & reverse-polarity protection
  • HTP/LTP merging of up to 2 Ethernet-DMX sources
  • Web-based interface for configuration, firmware updates & real-time status monitoring
  • Max output channels: 5.120 (10 universes of DMX512)
  • Operating: –20 °C to +50 °C; 5 %–95 % RH (non-condensing)
  • Enclosure: ABS & anodised aluminium; IP20 rating
  • Dimensions: 200 × 120 × 42 mm (L × W × H); Weight: 0.46 kg/1.01 lbs
DX10 Top view dimensions DX10 Side view dimensions DX10 Mounting dimensions

DX10 Controller Downloads

Specifications

DX10_Specifications_Sheet.pdf

User Manual

DX10_User_Manual.pdf

Firmware

DX10_Firmware.pdf

DX10 Accessories

Mounting options to fit racks, walls, DIN rails, and surfaces.
