Pixel Controller

P 24

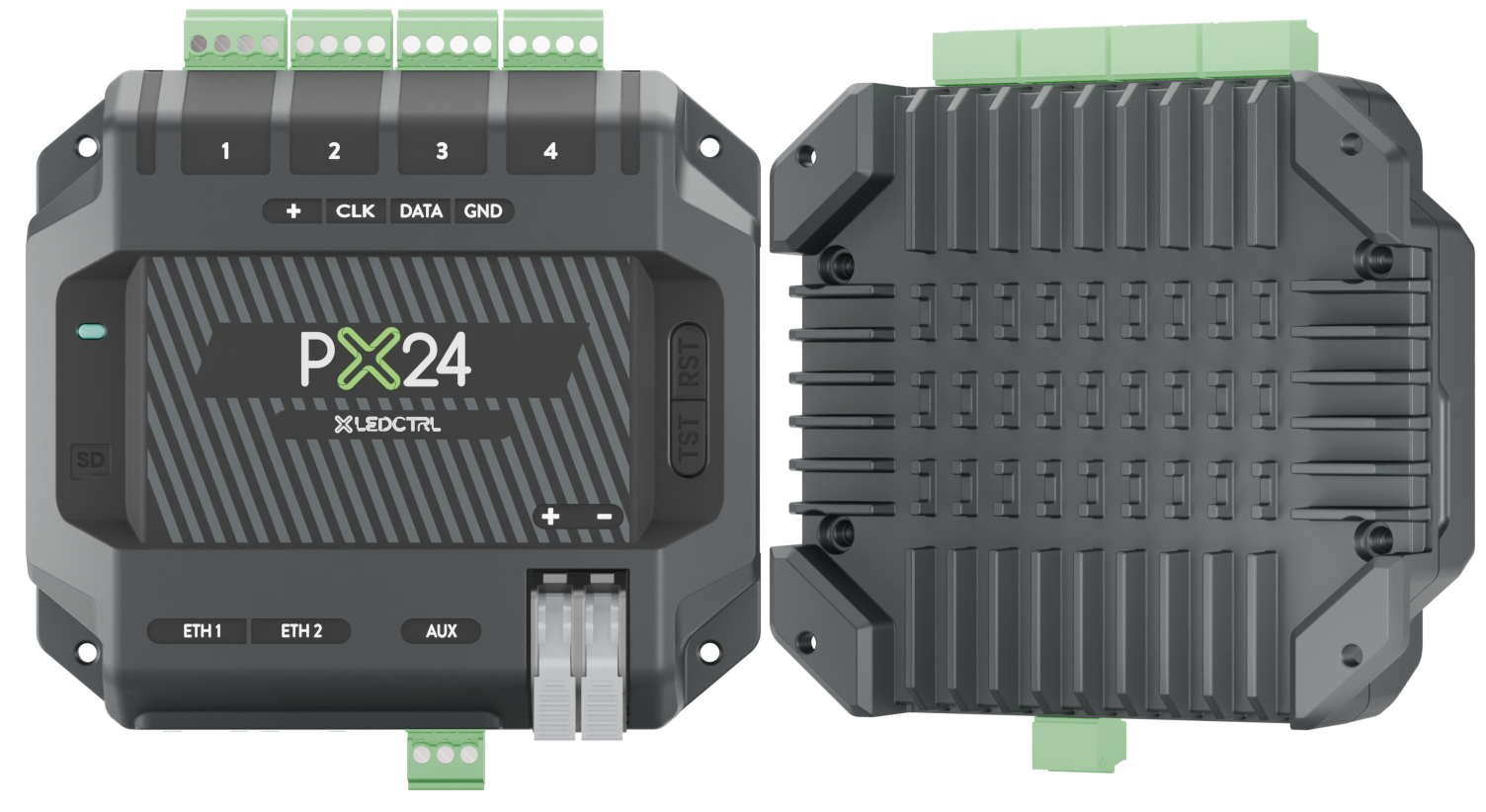

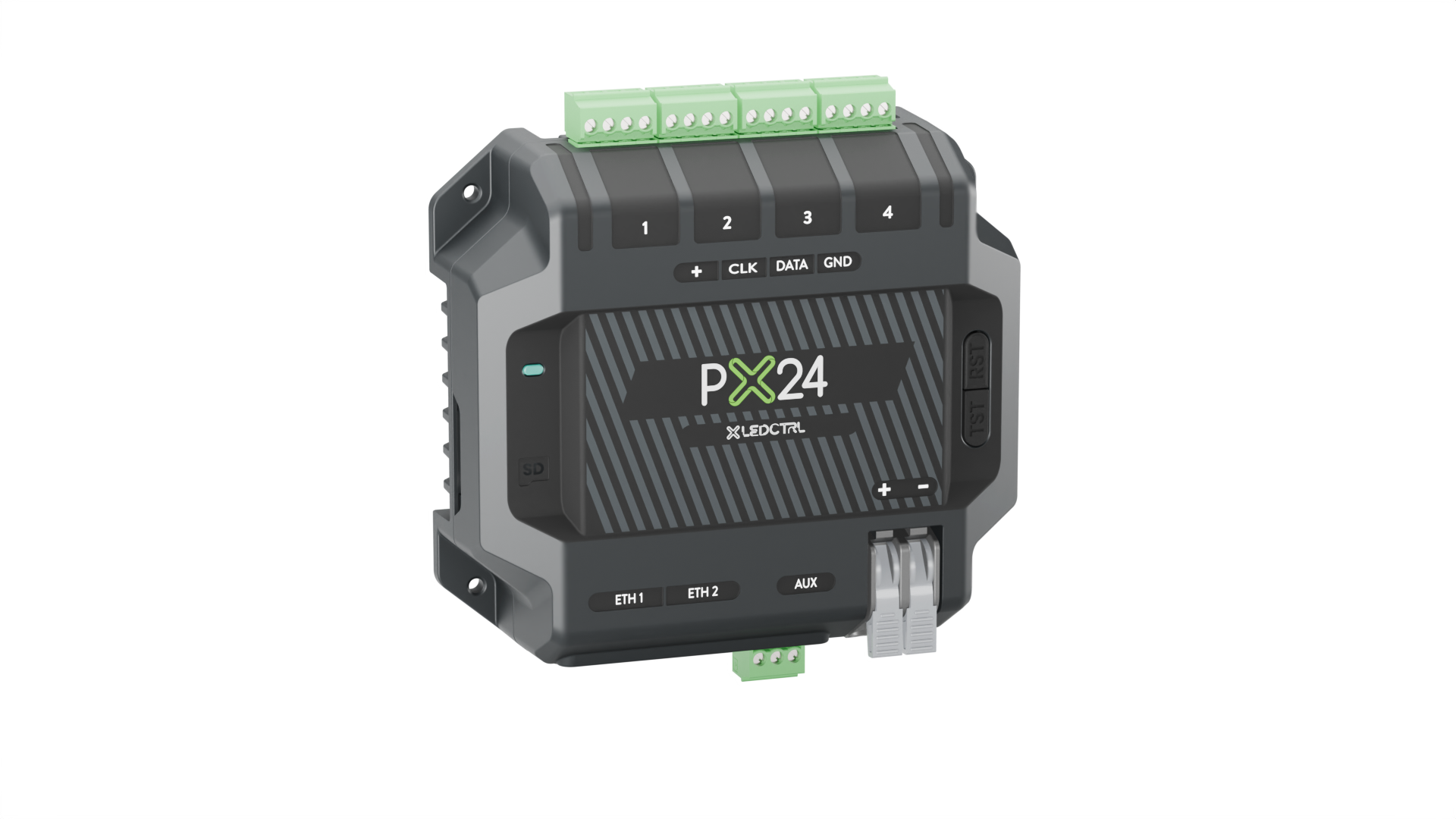

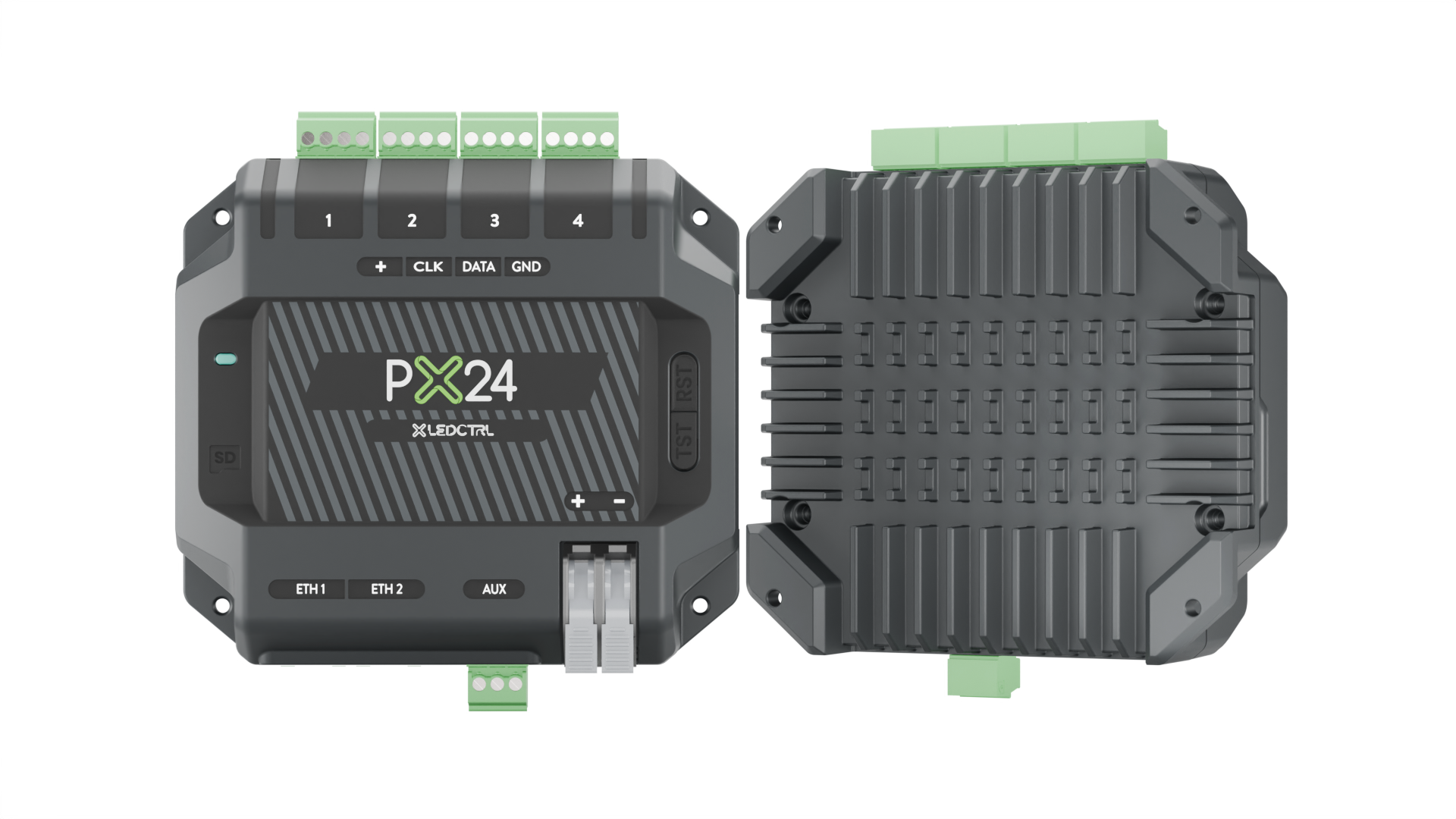

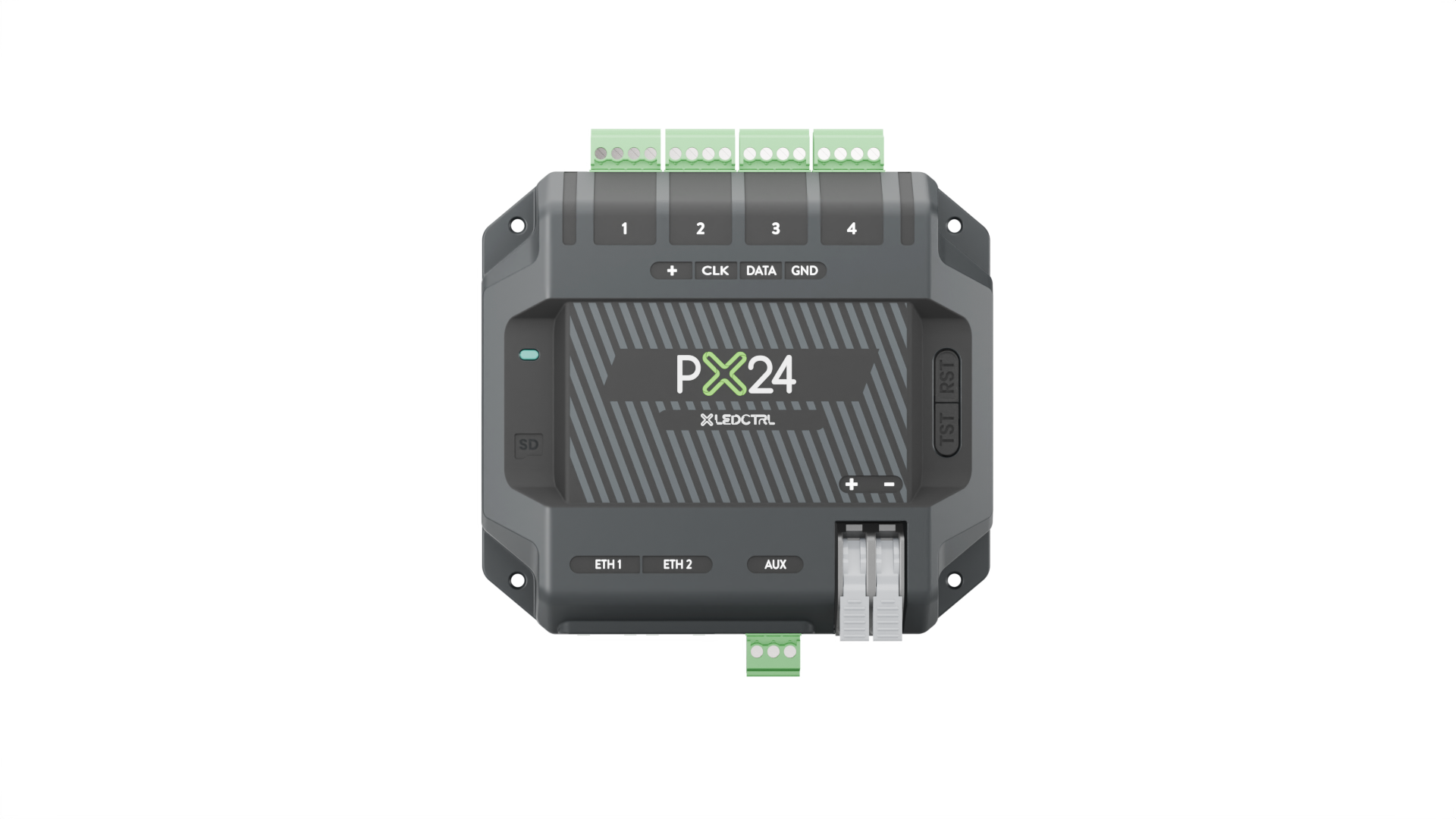

Small but powerful. The PX24 drives up to 6 universes of data on each of its 4 outputs — 24 universes of LED pixel control in a compact, wall- or DIN-rail-mountable enclosure. Smart Electronic Fusing on every output means you’ll never replace a fuse again.

Universes 24 (Art-Net / sACN)
Outputs 4 powered, 7A each
Network Dual GbE
Aux RS485 DMX In/Out

Download Datasheet View Specifications

1 / 3

Specifications Downloads Accessories

Key Specifications · PX24 Pixel Controller

Pixel Data
Universes	Art-Net / sACN
Pixel Outputs	4 Powered (8 in expanded mode)
Max Pixels / Output	1020 RGB · 768 RGBW
Pixel Protocols	60+ supported
Network & Control
Ethernet	2× Gigabit (Daisy-chain & redundant)
Auxiliary Port	RS485 · DMX512 In or Out
Storage	microSD · Record & Playback
Control Protocols	DMX X-Stream SPI
Power
Input Voltage	5–24 V DC
Output Current	Up to 7 A per output (Smart Electronic Fuse)
Physical
Dimensions	126.5 × 119 × 42 mm
Weight	0.3 kg
Mounting	Wall & DIN-rail
Operating Temp.	−20°C to +70°C
Warranty
Warranty	5 Years (Extendable Warranty Available)

Note: Specifications listed for quick evaluation and integration planning. Configuration of universes, outputs, pixel protocols, and DMX behaviour is fully managed via the web dashboard or LED CTRL software.
