S 2

Designed for versatility, the SX2 operates with the MX96 Master to receive up to 12 universes of X-DATA™ over Ethernet up to 300 m, supporting 5–36 V DC and delivering 15 A across two ports.

  • 12 Universes
  • X-Data 300 m
  • 2× Fused SPI (7.5 A)
  • 5–24 V DC Input

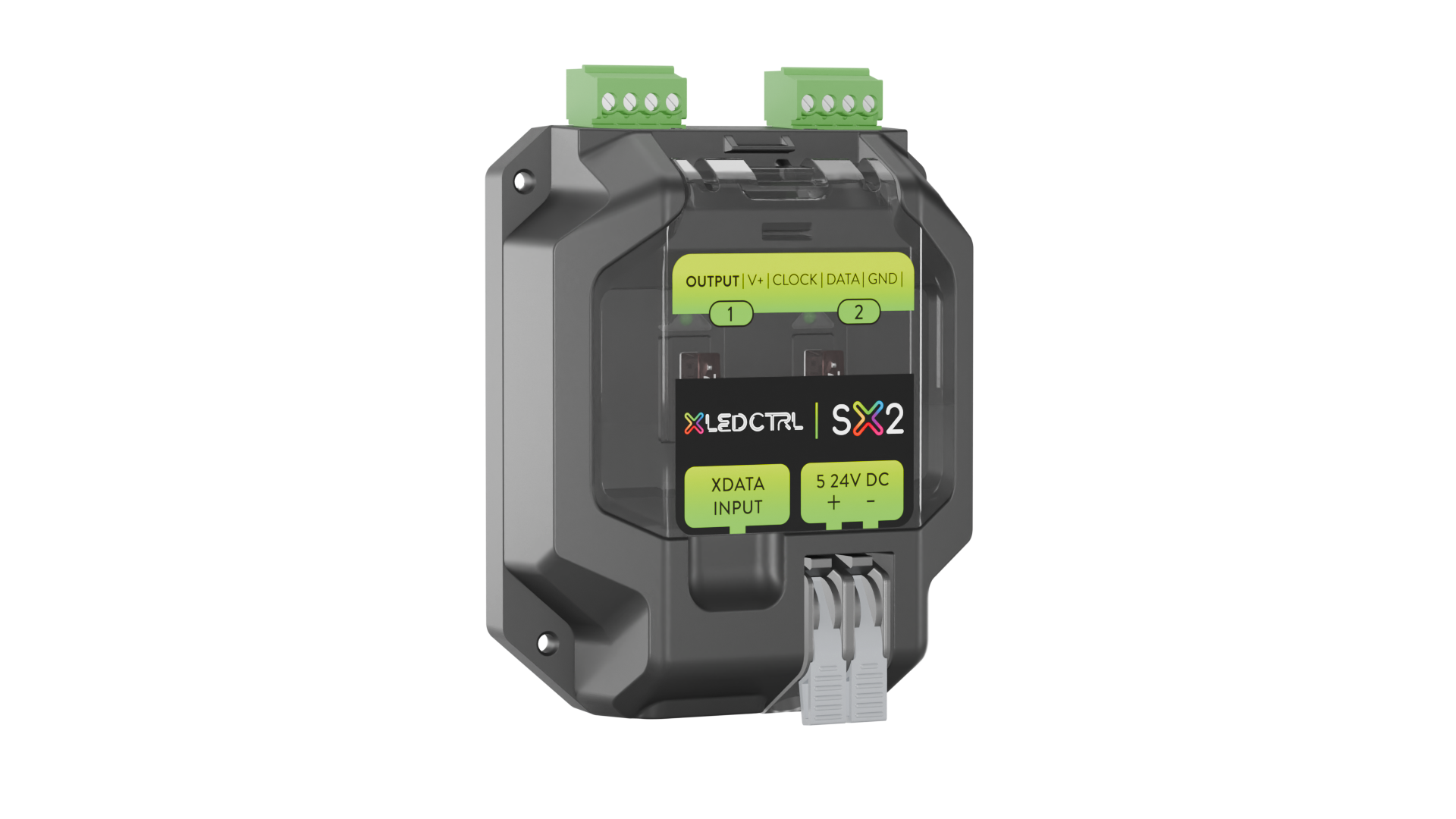

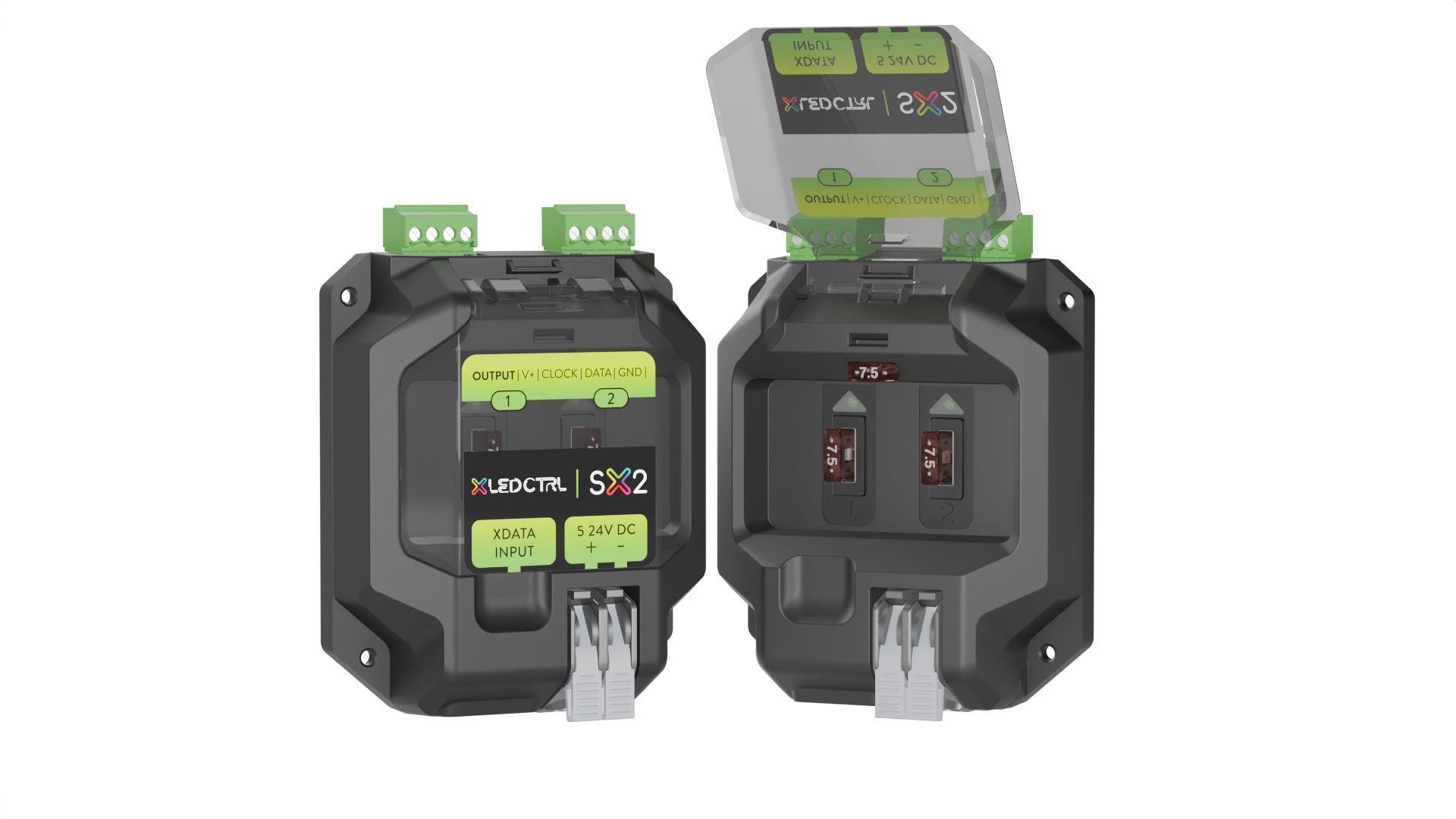

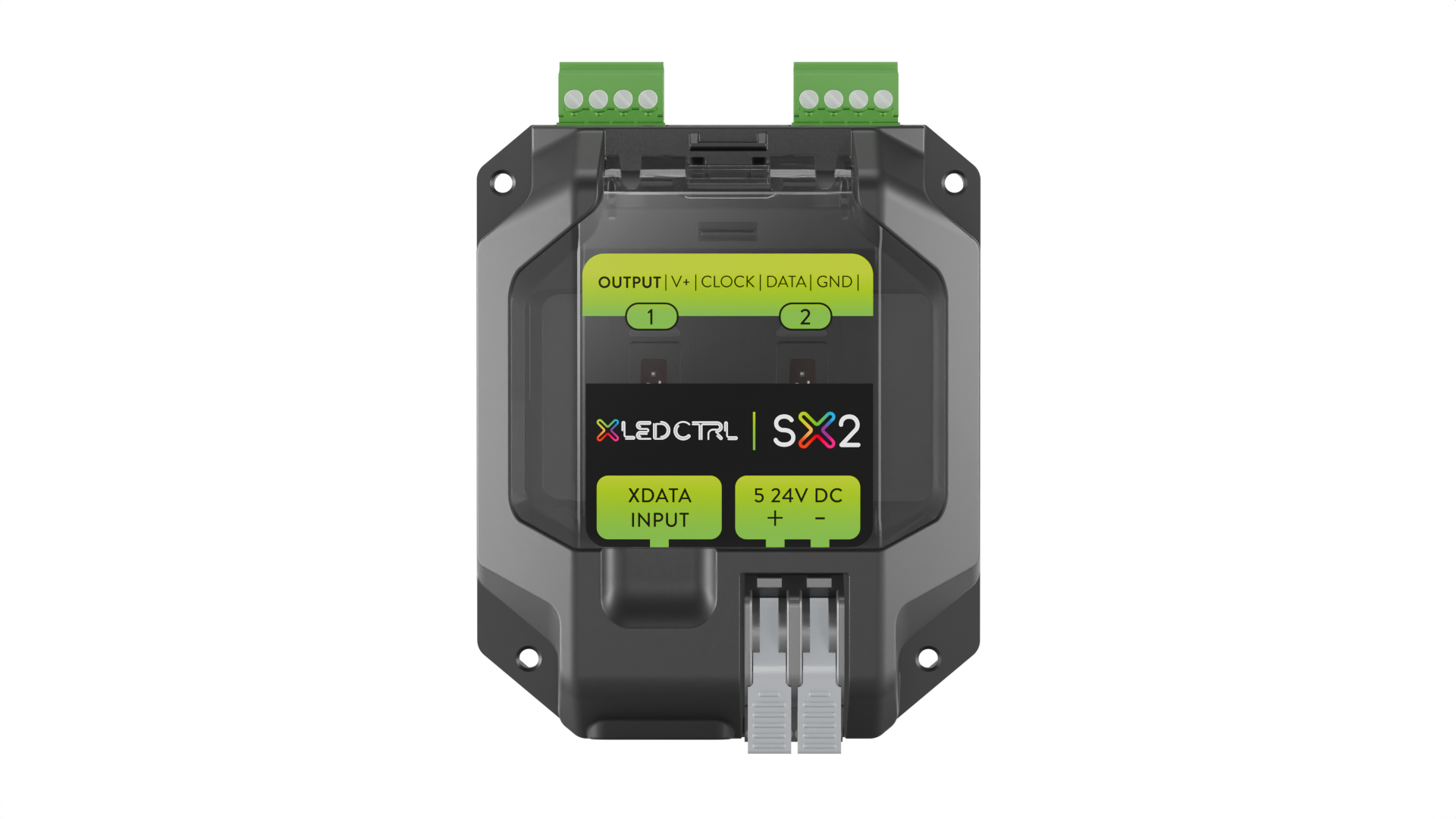

SX2 receiver render

SX2 Long-Range Receiver Key Specifications

  • Two outputs each protected by a 7.5 A blade fuse for safe operation.
  • Supports up to 1,020 RGB or 768 RGBW LEDs per channel for high-density installations.
  • Handles up to 12 Art-Net or sACN universes (6 per output) for complex multi-zone control.
  • Differential input from the MX96PRO transmitter with signal integrity maintained over distances up to 300 m.
  • Operates from 5 V to 24 V DC.
  • 95 × 78 × 33 mm (L × W × H) for flexible placement.
  • Rated for –20 °C to +55 °C .
  • Includes ±24 V DC surge protection, over-current and short-circuit shutdown, plus ESD safeguards on all ports.
  • Supplied wall-bracket mounting with optional DIN-rail clip for versatile installation.
  • Ideal for medium-to-large LED installations requiring reliable long-distance signal reception.
SX2 overall dimensions SX2 mounting dimensions

SX2 Long-Range Receiver Key Specifications

  • Two outputs each protected by a 7.5 A blade fuse for safe operation.
  • Supports up to 1,020 RGB or 768 RGBW LEDs per channel for high-density installations.
  • Handles up to 12 Art-Net or sACN universes (6 per output) for complex multi-zone control.
  • Differential input from the MX96PRO transmitter with signal integrity maintained over distances up to 300 m.
  • Operates from 5 V to 24 V DC.
  • 95 × 78 × 33 mm (L × W × H) for flexible placement.
  • Rated for –20 °C to +55 °C and 5 %–95 % RH (non-condensing) in indoor and covered outdoor settings.
  • Includes ±24 V DC surge protection, over-current and short-circuit shutdown, plus ESD safeguards on all ports.
  • Supplied wall-bracket mounting with optional DIN-rail clip for versatile installation.
  • Ideal for medium-to-large LED installations requiring reliable long-distance signal reception.
SX2 overall dimensions SX2 mounting dimensions

SX2 Long-Range Receiver Key Specifications

  • Two outputs each protected by a 7.5 A blade fuse for safe operation.
  • Supports up to 1,020 RGB or 768 RGBW LEDs per channel for high-density installations.
  • Handles up to 12 Art-Net or sACN universes (6 per output) for complex multi-zone control.
  • Differential input from the MX96PRO transmitter with signal integrity maintained over distances up to 300 m.
  • Operates from 5 V to 24 V DC.
  • 95 × 78 × 33 mm (L × W × H) for flexible placement.
  • Rated for –20 °C to +55 °C and 5 %–95 % RH (non-condensing) in indoor and covered outdoor settings.
  • Includes ±24 V DC surge protection, over-current and short-circuit shutdown, plus ESD safeguards on all ports.
  • Supplied wall-bracket mounting with optional DIN-rail clip for versatile installation.
  • Ideal for medium-to-large LED installations requiring reliable long-distance signal reception.
SX2 overall dimensions SX2 mounting dimensions

SX2 Long-Range Receiver Downloads

Specifications

SX2_Receiver_Specifications_Sheet.pdf

SX2 Long-Range Receiver Accessories

Mounting and add-ons designed to make installations faster and cleaner.
