M 96

The MX96PRO converts 96 universes of Art-Net or sACN to X-DATA™ across 8 ports, providing powerful long-distance pixel control up to 300 m within the MX–SX ecosystem for large-scale façade and architectural installations.

  • 96 Universes
  • Dual GbE (ETH1/ETH2)
  • RS485 DMX In/Out
  • microSD Record/Playback

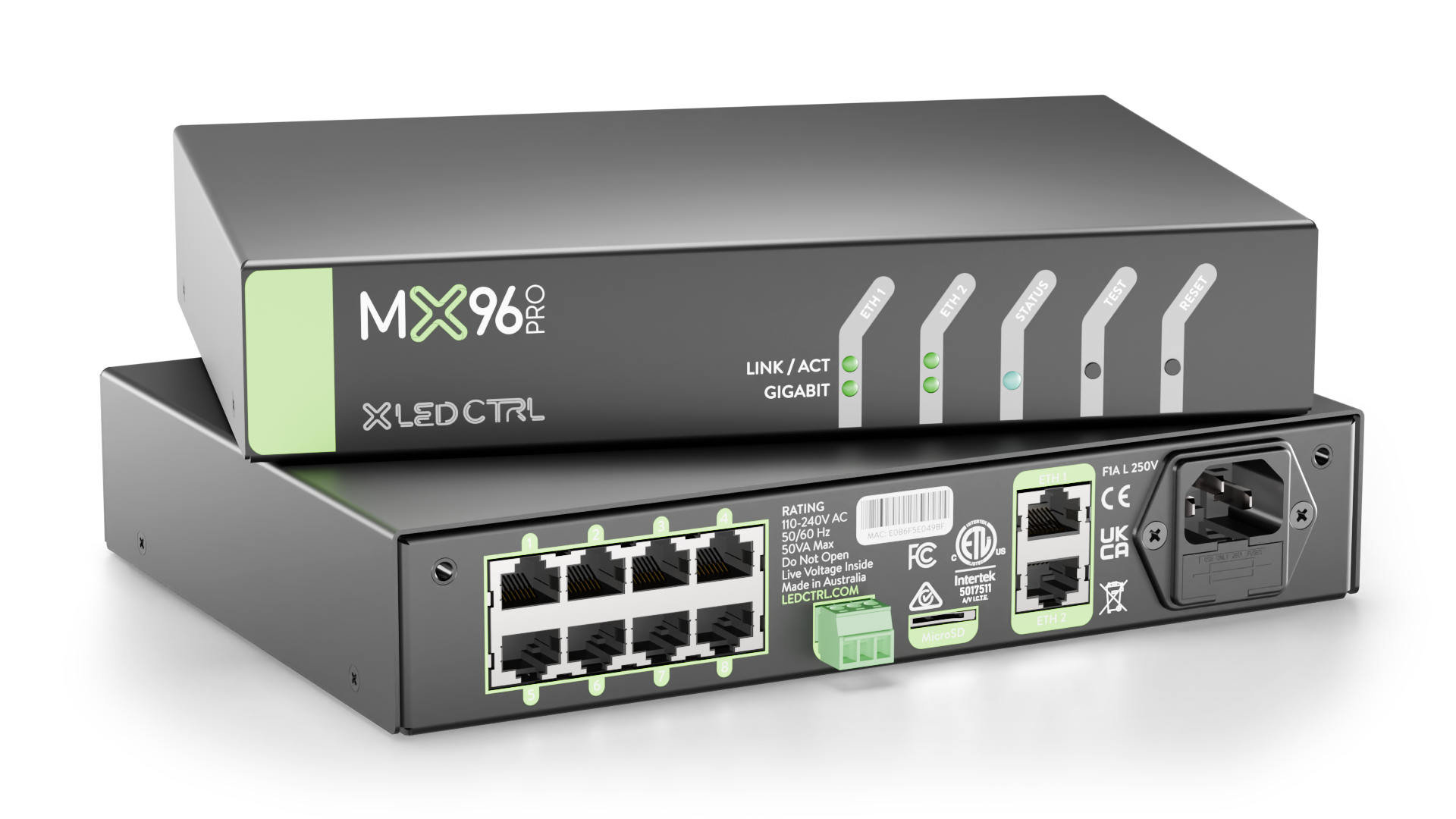

MX96PRO transmitter render

MX96PRO Long-Range Transmitter Key Specifications

  • RJ45 data outputs: 8 independent channels
  • Ethernet ports: 2× 10/100/1000 Mbit/s
  • Micro-SD card slot for record & playback
  • Auxiliary port: 1× RS-485 (DMX 512 In/Out)
  • Input power: 100 – 240 V DC
  • AC fuse: 1 A M205
  • Dimensions (inc. connectors): 221 × 169 × 42 mm (L × W × H)
  • Weight: 1.1 kg
  • Enclosure: aluminium chassis
  • Ambient operating temperature: –10 °C to +60 °C
  • Mounting: direct panel, wall & rack mountable
MX96PRO Side view dimensions MX96PRO Overall dimensions

MX96PRO Long-Range Transmitter Key Specifications

  • RJ45 data outputs: 8 independent channels
  • Ethernet ports: 2× 10/100/1000 Mbit/s
  • Micro-SD card slot for record & playback
  • Auxiliary port: 1× RS-485 (DMX512 In/Out)
  • Input power: 100–240 V AC
  • AC fuse: 1 A M205
  • Dimensions (inc. connectors): 221 × 169 × 42 mm (L × W × H)
  • Weight: 1.1 kg
  • Enclosure: aluminium chassis
  • Ambient operating temperature: –10 °C to +60 °C
  • Mounting: direct panel, wall & rack mountable
MX96PRO Side view dimensions
MX96PRO Overall dimensions

MX96PRO Long-Range Transmitter Downloads

Specifications

MX96PRO_Long-Range_Transmitter_Specifications_Sheet.pdf

Setup Manual

MX96PRO_Long-Range_Transmitter_Setup_Manual.pdf

Firmware

MX96PRO_Long-Range_Transmitter_Firmware_Package.fw

MX96PRO Long-Range Transmitter Accessories

Mounting solutions designed for professional rack and surface installations.
