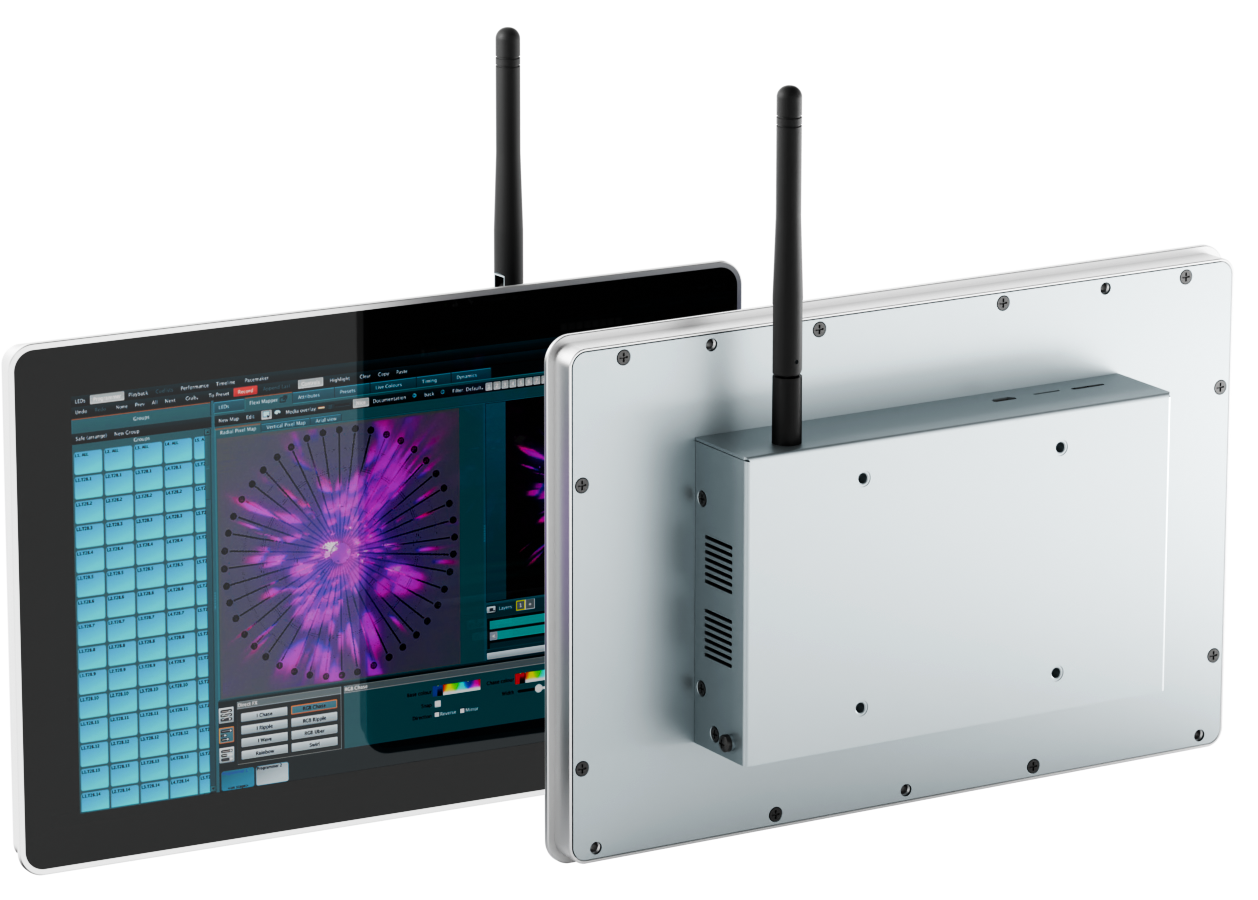

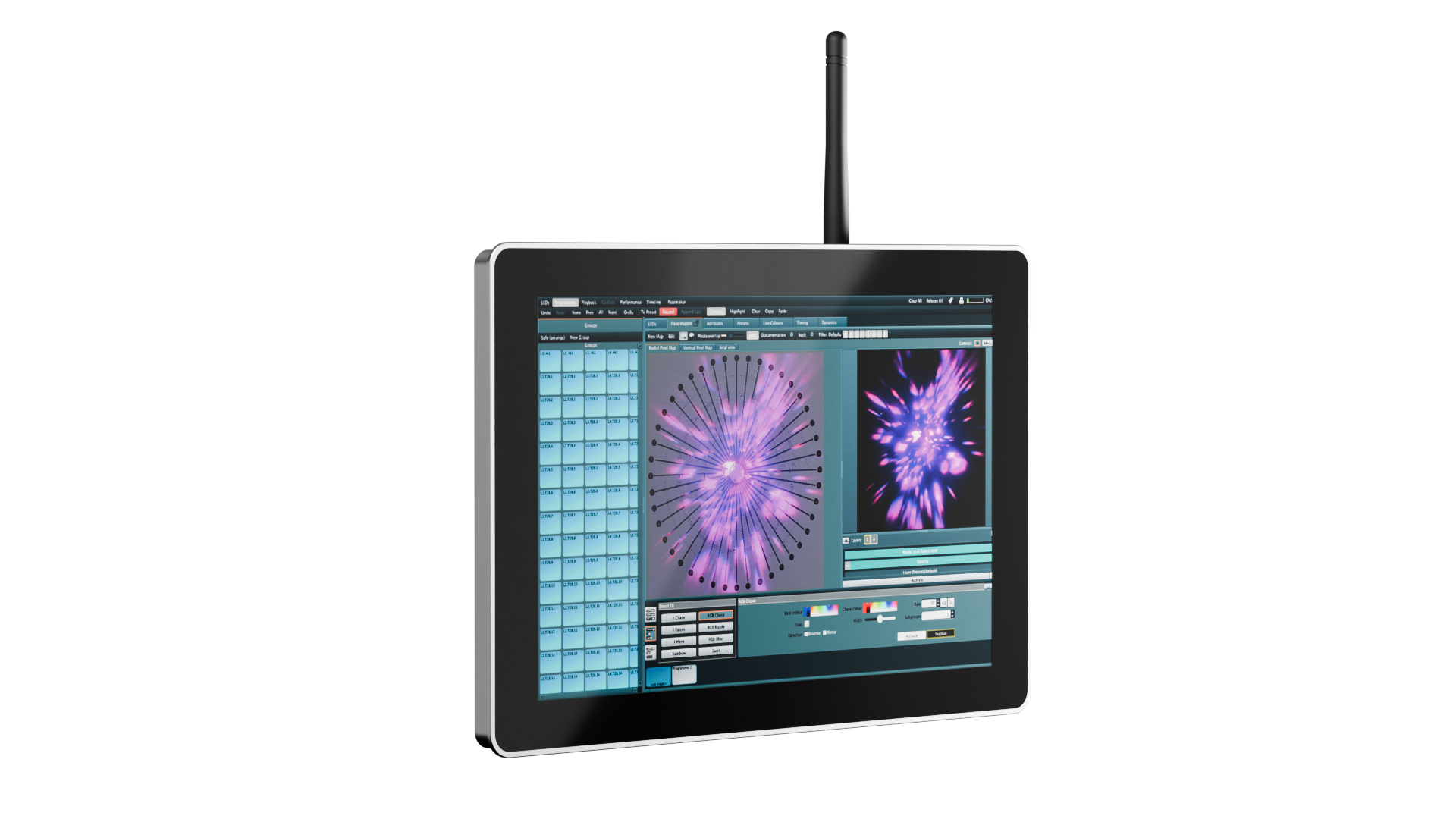

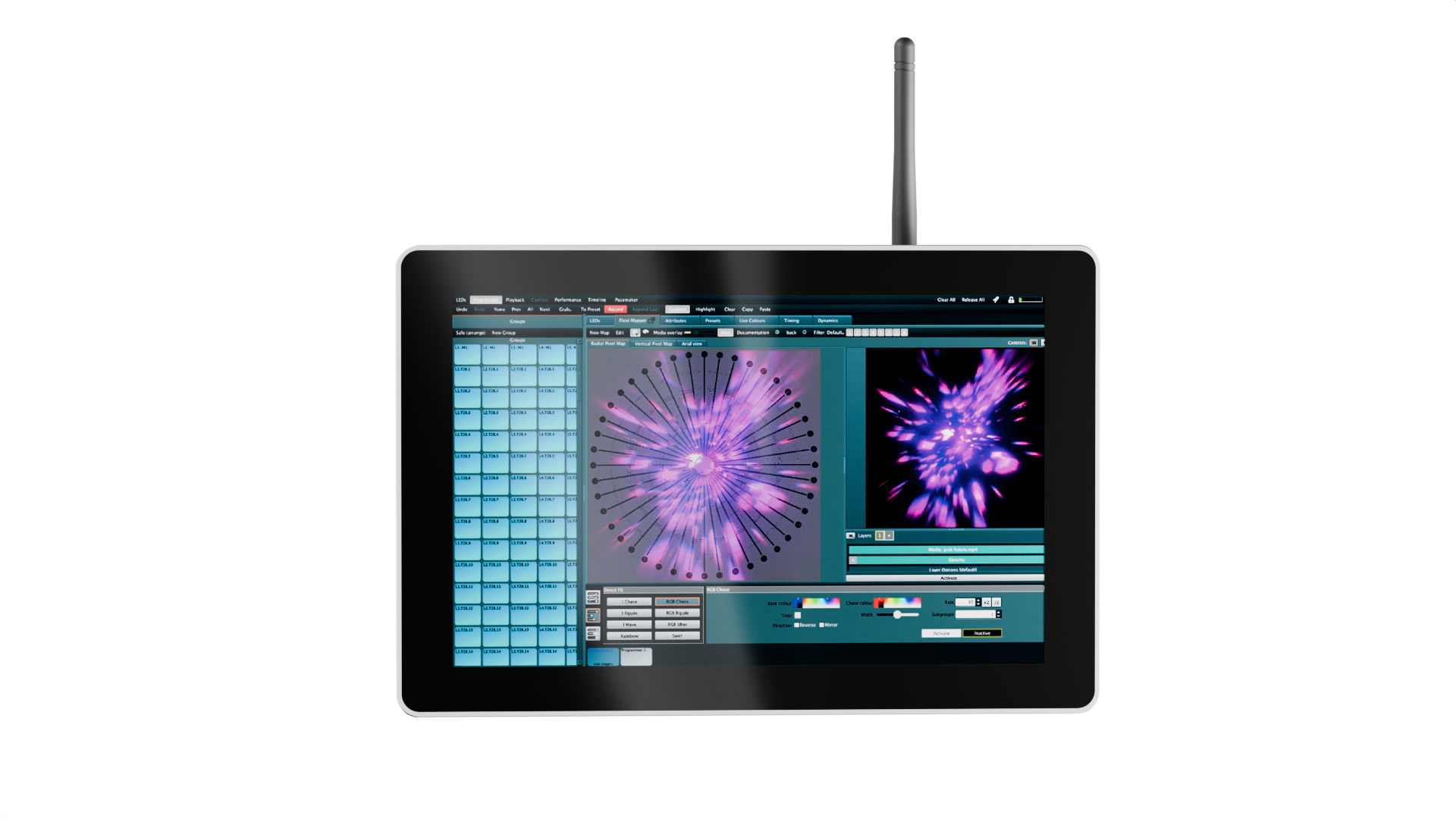

C 24

The CX24 offers enhanced processing power in a pre-configured head-end unit, tuned by LED CTRL for scalable performance, reliability, and long-term stability with 3-year warranty coverage.

24 Universe License
Dual Ethernet Ports
2.4 & 5 GHz Wi-Fi + Bluetooth
10″ Capacitive Touch Display

Features Specifications Downloads accessories

Features Specifications Downloads Accessories

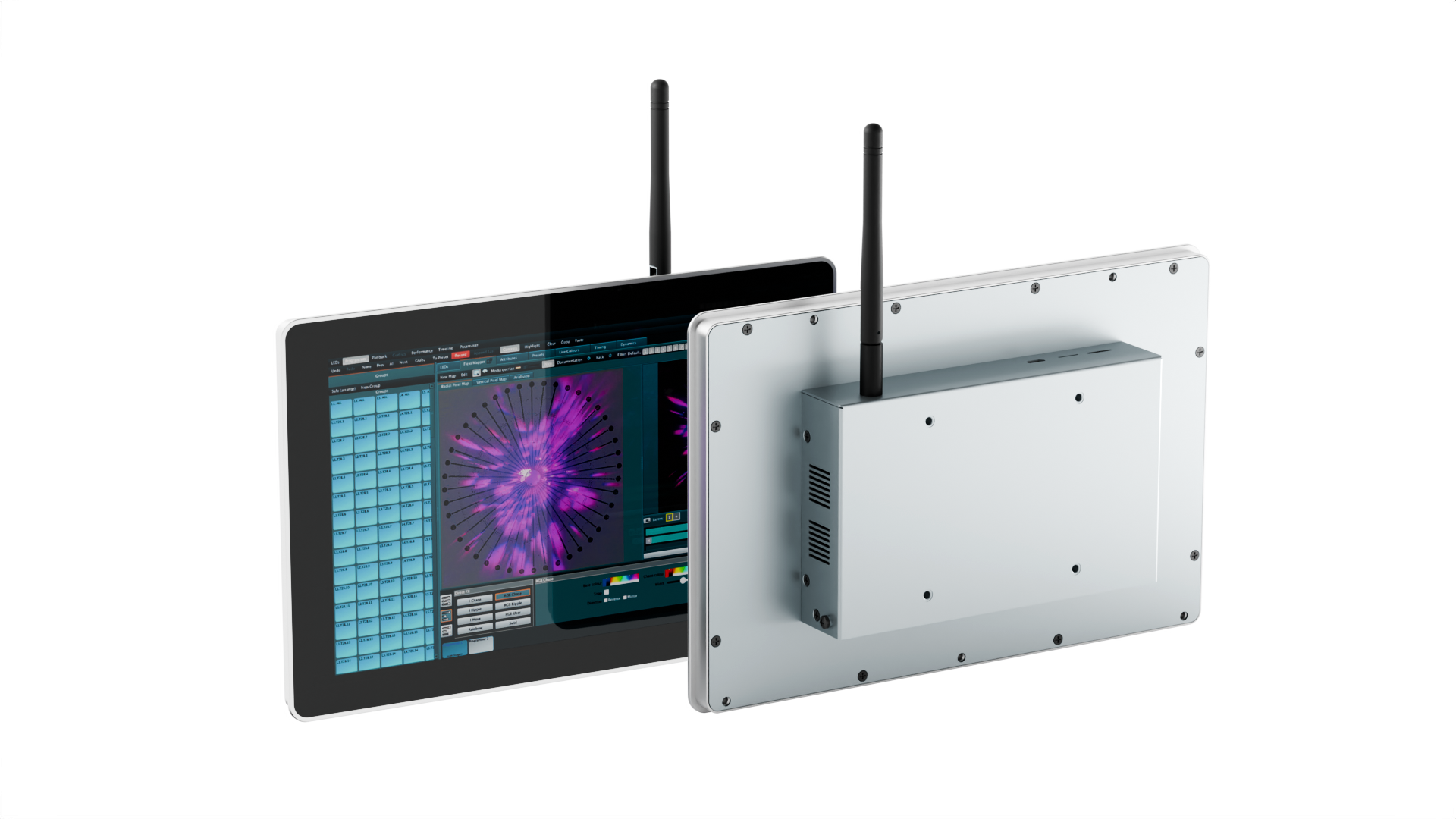

CX24 Standalone Compute Unit Key Specifications

Led Ctrl 24 Universe License Installed
128 GB NVMe SSD and 16 GB eMMC, expandable via micro-SD slot for additional storage.
Dual Ethernet ports (1× Gigabit & 1× Fast Ethernet) with built-in surge protection.
Four serial control ports: two isolated RS-485 and two RS-232 with ESD protection.
Two USB 2.0 Type-A and one HDMI 2.1 output supporting up to 4K 60 Hz.
10.1" capacitive touchscreen (1280×800) with 6H hardness and wide viewing angles.
9–36 V DC input via screw terminal; max 24 W consumption; includes universal AC adapter.
Weight: 1.2 kg.
Dimensions: 258 × 172 × 42 mm (W × D × H, excluding antennas).
Mounting: Table placement or VESA wall mount compatible.
Operating range: –20 °C to +60 °C; 5–95 % RH (non-condensing).
Wireless: Dual-band Wi-Fi, Bluetooth 5.0, optional 4G LTE via NanoSIM.
Hardware firewall, secure boot, FCC (NA) and CE (EU) certified.
On-board temperature and voltage sensors for real-time monitoring.
Integrated real-time clock (RTC) with battery backup option for precise scheduling.

CX24 Standalone Compute Unit Key Specifications

Led Ctrl 24 Universe License Installed
128 GB NVMe SSD and 16 GB eMMC, expandable via micro-SD slot for additional storage.
Dual Ethernet ports (1× Gigabit & 1× Fast Ethernet) with built-in surge protection.
Four serial control ports: two isolated RS-485 and two RS-232 with ESD protection.
Two USB 2.0 Type-A and one HDMI 2.1 output supporting up to 4K 60 Hz.
10.1" capacitive touchscreen (1280×800) with 6H hardness and wide viewing angles.
9–36 V DC input via screw terminal; max 24 W consumption; includes universal AC adapter.
Weight: 1.2 kg.
Dimensions: 258 × 172 × 42 mm (W × D × H, excluding antennas).
Mounting: Table placement or VESA wall mount compatible.
Operating range: –20 °C to +60 °C; 5–95 % RH (non-condensing).
Wireless: Dual-band Wi-Fi, Bluetooth 5.0, optional 4G LTE via NanoSIM.
Hardware firewall, secure boot, FCC (NA) and CE (EU) certified.
On-board temperature and voltage sensors for real-time monitoring.
Integrated real-time clock (RTC) with battery backup option for precise scheduling.

CX24 Standalone Compute Unit Key Specifications

Led Ctrl 24 Universe License Installed
128 GB NVMe SSD and 16 GB eMMC, expandable via micro-SD slot for additional storage.
Dual Ethernet ports (1× Gigabit & 1× Fast Ethernet) with built-in surge protection.
Four serial control ports: two isolated RS-485 and two RS-232 with ESD protection.
Two USB 2.0 Type-A and one HDMI 2.1 output supporting up to 4K 60 Hz.
10.1" capacitive touchscreen (1280×800) with 6H hardness and wide viewing angles.
9–36 V DC input via screw terminal; max 24 W consumption; includes universal AC adapter.
Weight: 1.2 kg.
Dimensions: 258 × 172 × 42 mm (W × D × H, excluding antennas).
Mounting: Table placement or VESA wall mount compatible.
Operating range: –20 °C to +60 °C; 5–95 % RH (non-condensing).
Wireless: Dual-band Wi-Fi, Bluetooth 5.0, optional 4G LTE via NanoSIM.
Hardware firewall, secure boot, FCC (NA) and CE (EU) certified.
On-board temperature and voltage sensors for real-time monitoring.
Integrated real-time clock (RTC) with battery backup option for precise scheduling.

CX24 Standalone Compute Unit Downloads

Specifications

CX24_Specifications_Sheet.pdf
