T 10

The TX10 is a compact, cost-effective LED touch trigger featuring 8 scene buttons, a dimmer slider, and On/Off control, designed to work with PX or MX devices via AUX to trigger SD-stored lighting effects.

  • 8 Zones
  • DMX Control
  • 12–24V DC Input
  • 85.5 × 85.5 × 15 mm

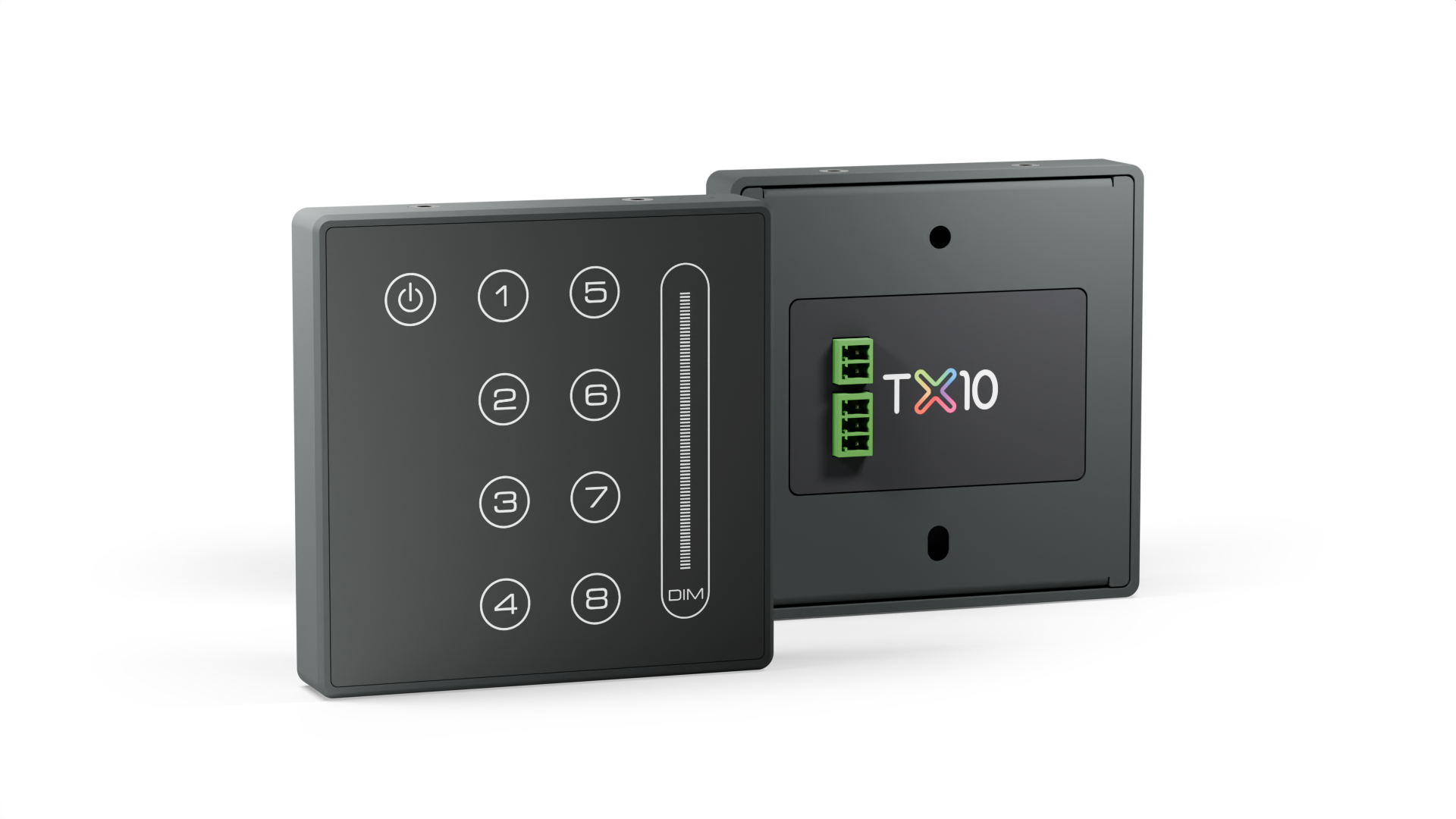

TX10 trigger panel render

TX10 Touch Trigger Key Specifications

  • Input Voltage: DC 12 V – DC 24 V
  • Operating Temperature: –30 °C to +50 °C
  • Dimensions: 85.5 × 85.5 × 15 mm (L × W × H)
  • Certifications: CE
  • Housing Colour: Black / White / Grey. Housing Material: Aluminium
  • Environment: Indoor. IP Rating: IP20
  • Functions: Scene select (8 zones), Dimmer slider, On/Off
  • Control Protocol: DMX
  • Zones: 8 independent zones/effects. Number of Channels: 9
  • Product Type: DMX Trigger Panel
  • Power Supply Mounting: External. Mounting: Built-in
TX10 overall dimensions

TX10 Touch Trigger Downloads

Specifications

TX10_Touch_Trigger_Specifications_Sheet.pdf

Configuration Guide

TX10_Touch_Trigger_Configuration_Guide.pdf
