C 64

Built for demanding installations, the CX64 delivers high-capacity, pre-configured computing power optimised by LED CTRL for unmatched scalability, reliability, and peace of mind with a 3-year warranty and dedicated support.

  • 64 Universes
  • Dual Ethernet (GbE + FE)
  • 10″ Touch Display
  • Wi-Fi + Bluetooth

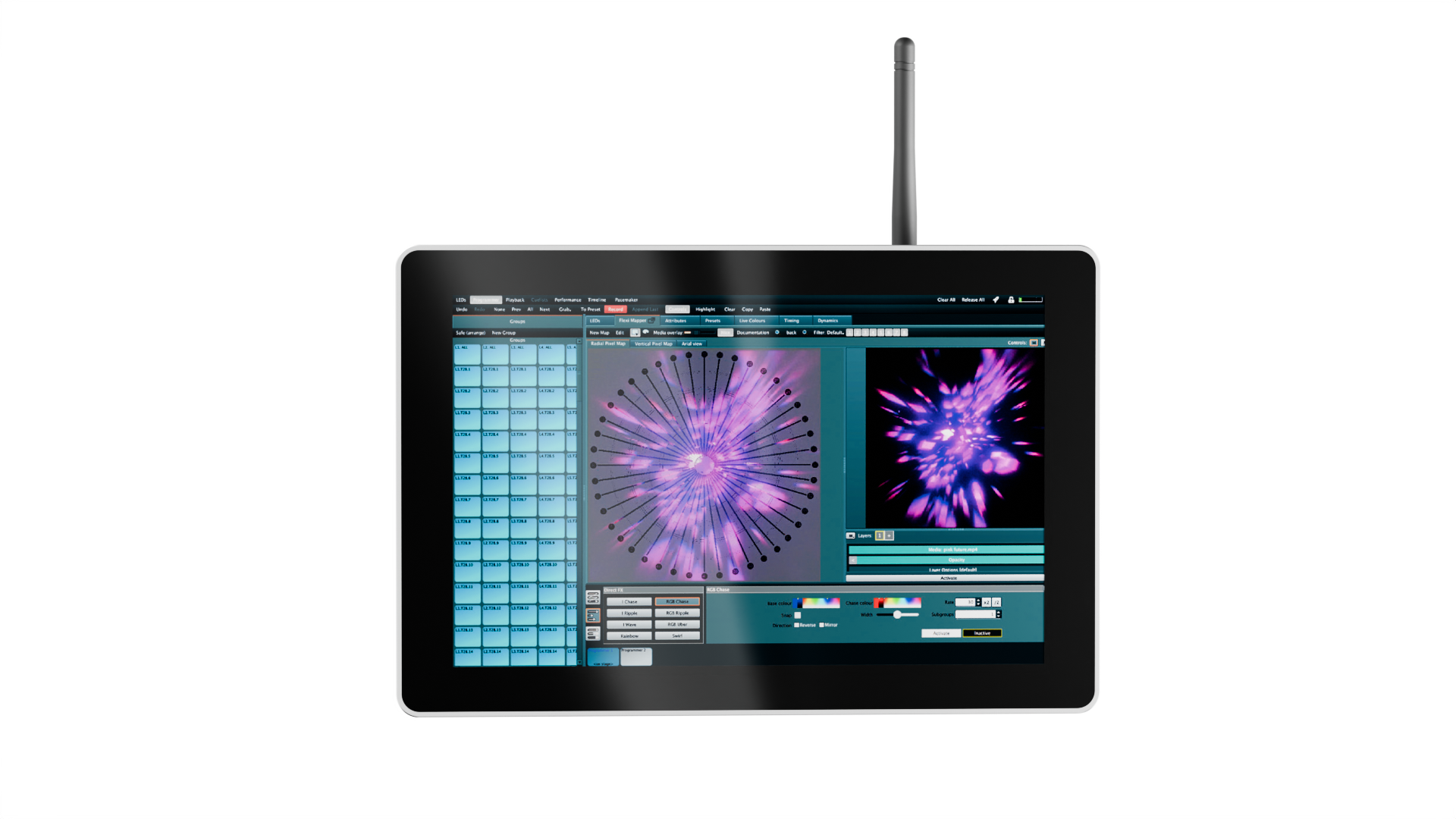

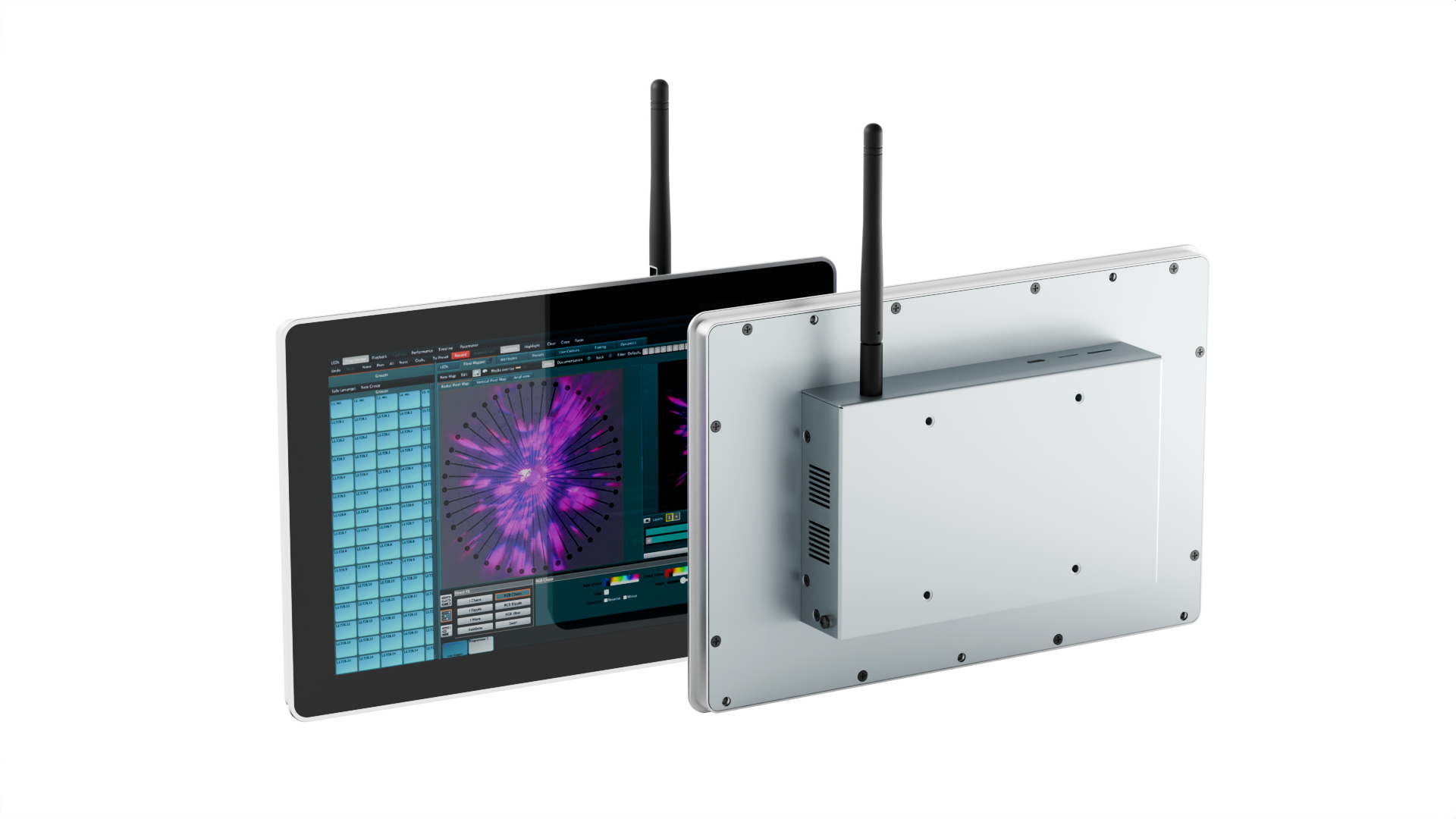

CX64 controller render

CX64 Standalone Compute Unit Key Specifications

  • LED CTRL 64 Universe License pre-installed
  • 10.1” capacitive touchscreen (1280×800) with 6H hardness
  • 2 x Ethernet ports (1× Gigabit & 1× Fast Ethernet)
  • 2 x USB 2.0 Type-A, 1 x HDMI 2.0 output (4K 60Hz)
  • 2 x RS-485 & 2 x RS-232 with isolation and ESD protection
  • MicroSD slot (user storage), 16GB eMMC, 4GB DDR memory
  • Dual-band Wi-Fi, Bluetooth 5.0.
  • 9–36 V DC input via screw terminal; 24 W max power draw
  • Integrated supercapacitor for backup power protection
  • Installation: Embedded front-mount
  • OS: Debian 11 with LED CTRL pre-installed
  • Auto-boot, auto-reload last project & backups enabled
  • Dimensions: 258 × 172 × 42 mm (W × D × H, excl. antennas)
  • Weight: 1.2 kg
  • Operating range: –20 °C to +50 °C; 5–95 % RH
  • Certified: FCC (NA) and CE (EU)
CX64 Front dimensions CX64 Back dimensions

CX64 Standalone Compute Unit Key Specifications

  • LED CTRL 64 Universe License pre-installed
  • 10.1” capacitive touchscreen (1280×800) with 6H hardness
  • 2 x Ethernet ports (1× Gigabit & 1× Fast Ethernet)
  • 2 x USB 2.0 Type-A, 1 x HDMI 2.0 output (4K 60Hz)
  • 2 x RS-485 & 2 x RS-232 with isolation and ESD protection
  • MicroSD slot (user storage), 16GB eMMC, 4GB DDR memory
  • Dual-band Wi-Fi, Bluetooth 5.0.
  • 9–36 V DC input via screw terminal; 24 W max power draw
  • Integrated supercapacitor for backup power protection
  • Installation: Embedded front-mount
  • OS: Debian 11 with LED CTRL pre-installed
  • Auto-boot, auto-reload last project & backups enabled
  • Dimensions: 258 × 172 × 42 mm (W × D × H, excl. antennas)
  • Weight: 1.2 kg
  • Operating range: –20 °C to +50 °C; 5–95 % RH
  • Certified: FCC (NA) and CE (EU)
CX64 Front dimensions CX64 Back dimensions

CX64 Standalone Compute Unit Key Specifications

  • LED CTRL 64 Universe License pre-installed
  • 10.1” capacitive touchscreen (1280×800) with 6H hardness
  • 2 x Ethernet ports (1× Gigabit & 1× Fast Ethernet)
  • 2 x USB 2.0 Type-A, 1 x HDMI 2.0 output (4K 60Hz)
  • 2 x RS-485 & 2 x RS-232 with isolation and ESD protection
  • MicroSD slot (user storage), 16GB eMMC, 4GB DDR memory
  • Dual-band Wi-Fi, Bluetooth 5.0.
  • 9–36 V DC input via screw terminal; 24 W max power draw
  • Integrated supercapacitor for backup power protection
  • Installation: Embedded front-mount
  • OS: Debian 11 with LED CTRL pre-installed
  • Auto-boot, auto-reload last project & backups enabled
  • Dimensions: 258 × 172 × 42 mm (W × D × H, excl. antennas)
  • Weight: 1.2 kg
  • Operating range: –20 °C to +50 °C; 5–95 % RH
  • Certified: FCC (NA) and CE (EU)
CX64 Front dimensions CX64 Back dimensions

CX64 Standalone Compute Unit Downloads

Specifications

CX64_Specifications_Sheet.pdf
