B G 80

High-output pixel LED grazer for architectural and infrastructure lighting on façades, tunnels and bridges. Built from corrosion-resistant anodised aluminium with an 8 mm tempered-glass lens and rated IP66/IK08 for reliable operation in harsh outdoor conditions.

  • Lengths 305/610/915/1220 mm
  • Beam angles 10°, 25°, 40°, 10°×35°, 10°×60°, 20°×40°, 30°×60°
  • Beam angles
    10°, 25°, 40°
    10°×35°, 10°×60°, 20°×40°, 30°×60°
  • Controls: X-Stream / SPI / DMX / PWM
  • Outdoor build: IP66 / IK08 · anodised aluminium · 8 mm tempered lens

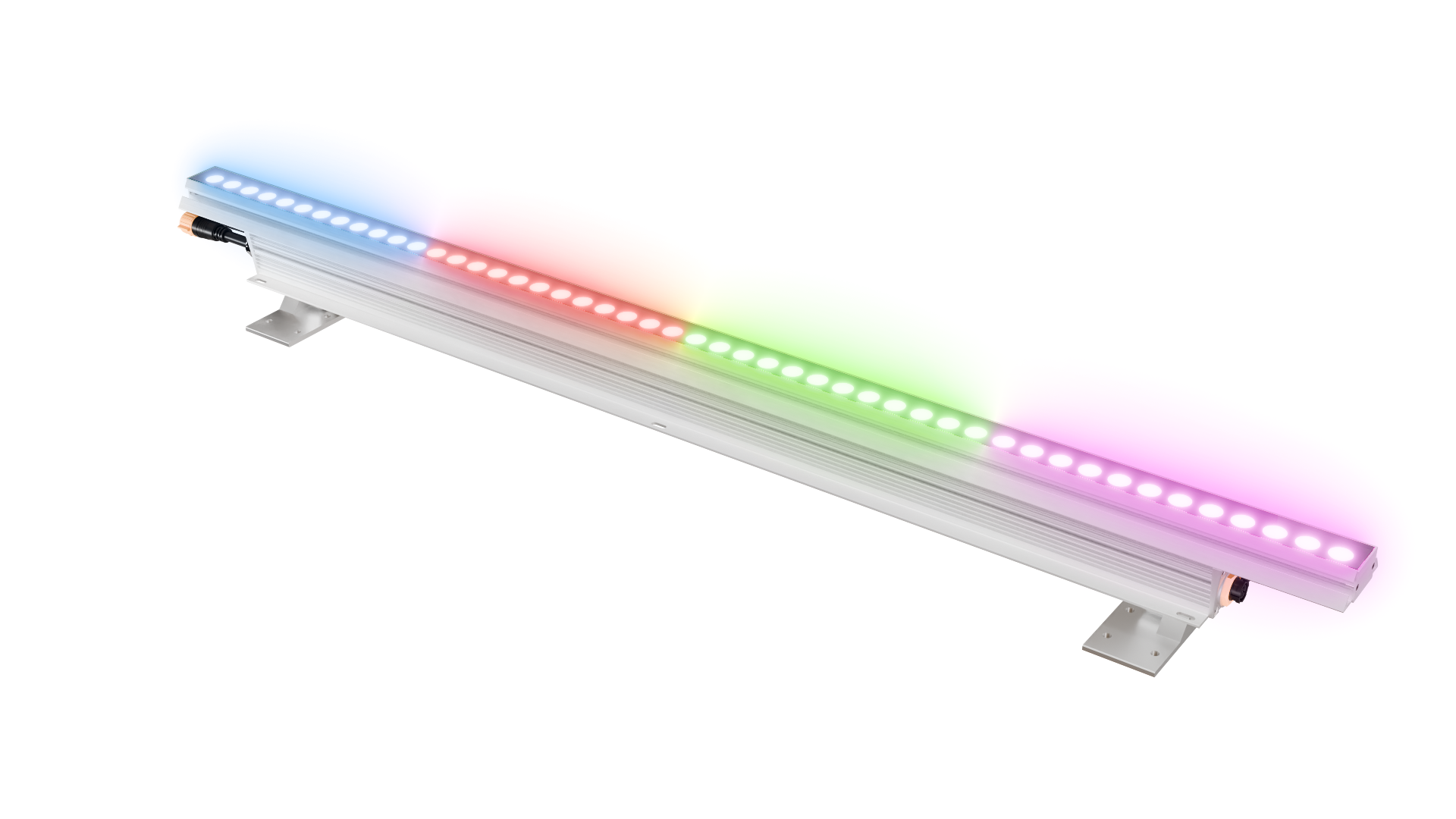

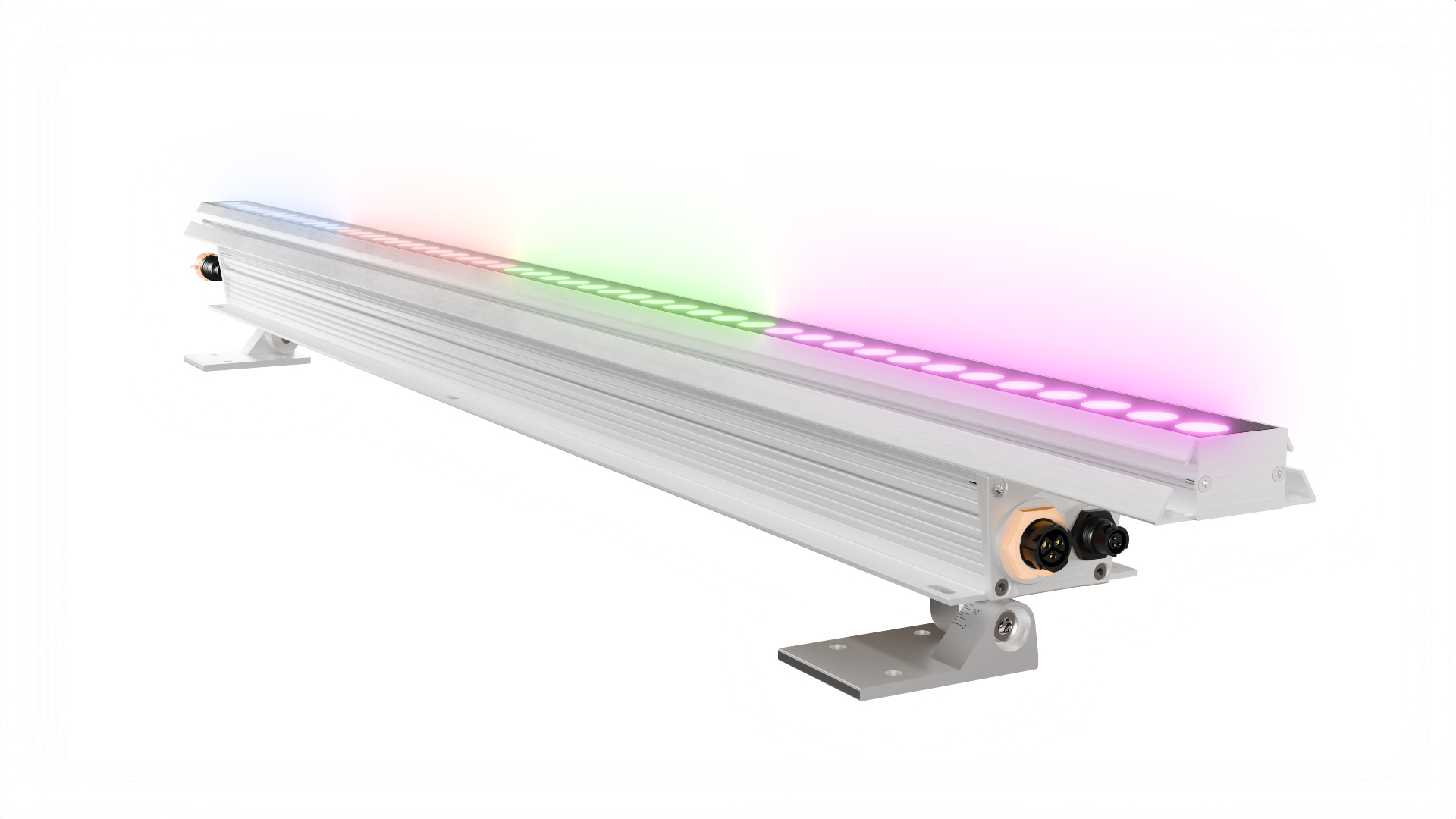

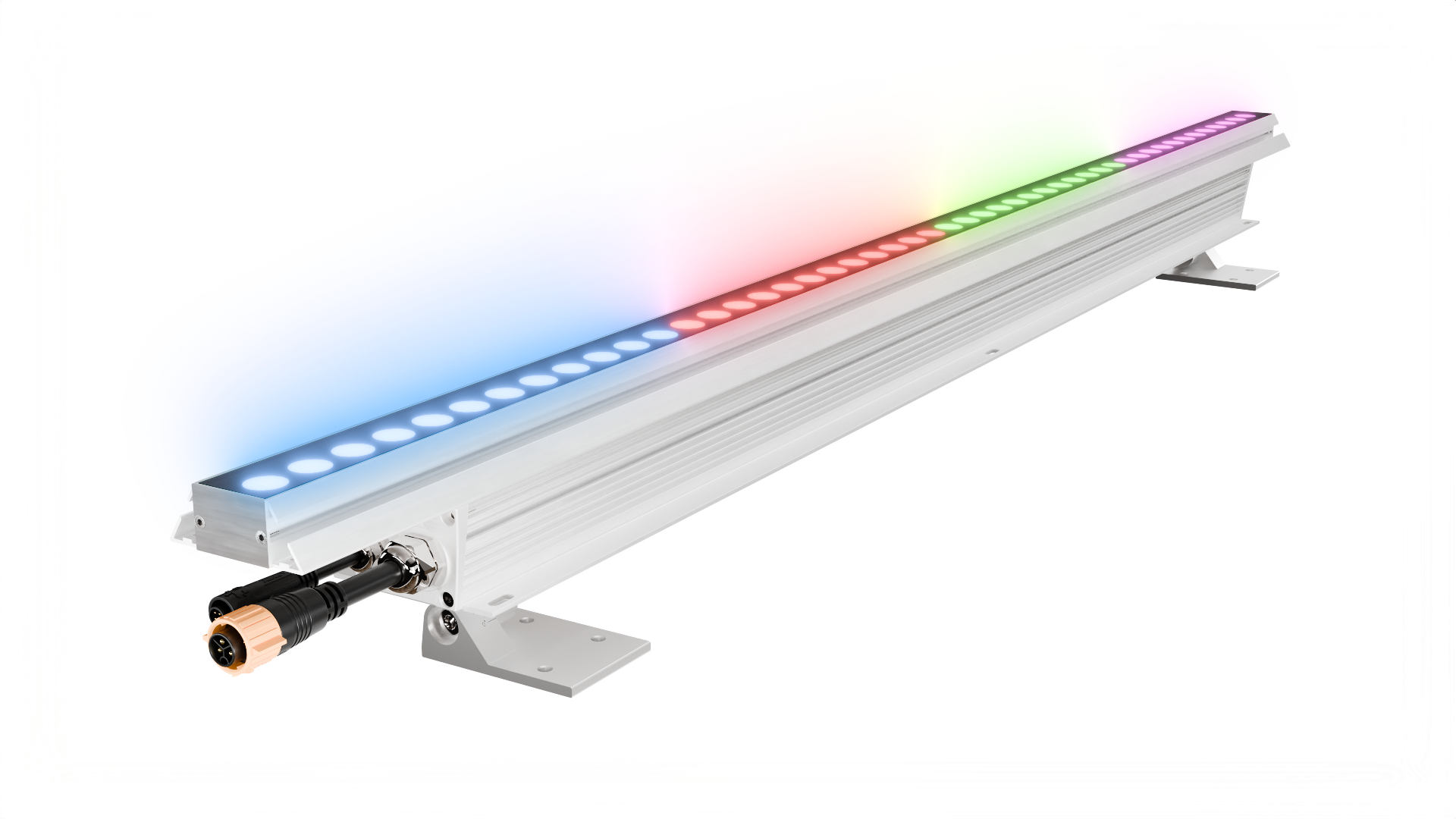

BXG 80 Grazer Wash render

BXG80 Grazer Key Specifications

BXG80 At a Glance Overview
  • Dimensions: 305mm to 1220mm length, 75.5mm wide × 90mm tall housing body.
  • LED Colours: RGB, RGBW, RGBA, Dynamic White, Static White, CRI > 82 or 92.
  • Beam Angles: 10º, 25º, 40º, 10×10°, 10×60°, 30×60°, 60×60°, 20° asymmetric, custom on request.
  • Mounting Options: 30º Swivel Mount, 90º Swivel Mount, Foot Mount, 90º Fixed Mount, 120º Swivel Unistrut Mount.
  • Control Protocols: DMX512, SPI, and LEDCTRL X-Stream with jumperable multipin links.
BXG80 Dimensions 610mm
BXG80 Front Profile

BXG80 Grazer Key Specifications

BXG80 At a Glance Overview
  • Dimensions: 305mm to 1220mm length, 75.5mm wide × 90mm tall housing body.
  • LED Colours: RGB, RGBW, RGBA, Dynamic White, Static White, CRI > 82 or 92.
  • Beam Angles: 10º, 25º, 40º, 10×10°, 10×60°, 30×60°, 60×60°, 20° asymmetric, custom on request.
  • Mounting Options: 30º Swivel Mount, 90º Swivel Mount, Foot Mount, 90º Fixed Mount, 120º Swivel Unistrut Mount.
  • Control Protocols: DMX512, SPI, and LEDCTRL X-Stream with jumperable multipin links.
BXG80 Dimensions 610mm
BXG80 Front Profile

BXG80 Grazer Key Specifications

BXG80 At a Glance Overview
  • Dimensions: 305mm to 1220mm length, 75.5mm wide × 90mm tall housing body.
  • LED Colours: RGB, RGBW, RGBA, Dynamic White, Static White, CRI > 82 or 92.
  • Beam Angles: 10º, 25º, 40º, 10×10°, 10×60°, 30×60°, 60×60°, 20° asymmetric, custom on request.
  • Mounting Options: 30º Swivel Mount, 90º Swivel Mount, Foot Mount, 90º Fixed Mount, 120º Swivel Unistrut Mount.
  • Control Protocols: DMX512, SPI, and LEDCTRL X-Stream with jumperable multipin links.
BXG80 Dimensions 610mm
BXG80 Front Profile

BXG 80 LED Grazer Downloads

Specifications

BXG80_Grazer_Specifications_Sheet.pdf

BXG Accessories

Mounting and add-ons tailored for the BXG fixture range.

BXG24 Accessories

— Compact mounting options for smaller fixtures.

BX/BXG24 — Foot Mount

Foot Mount

BXG24 — Low-profile base for direct mounting.

BX/BXG24 — 30º Swivel Mount

30º Swivel Mount

BXG24 — Quick-aim swivel plate (±30°).

BX/BXG24 — 90º Swivel Mount

90º Swivel Mount

BXG24 — Extended tilt range (±90°) bracket.

BXG40 Accessories

— Robust fixtures with flexible mounting.

BX/BXG40 — Foot Mount

Foot Mount

BXG40 — Solid base for floor/wall installs.

BX/BXG40 — 30º Swivel Mount

30º Swivel Mount

BXG40 — Precision tilt (±30°) adjustment.

BX/BXG40 — 90º Swivel Mount

90º Swivel Mount

BXG40 — Wide-angle tilt (±90°).

BXG66 Accessories

— Mid-power fixtures with adaptable hardware.

BX/BXG66 — Foot Mount

Foot Mount

BXG66 — Stable base for varied surfaces.

BX/BXG66 — 30º Swivel Mount

30º Swivel Mount

BXG66 — Quick tilt (±30°) adjustments.

BX/BXG66 — 90º Swivel Mount

90º Swivel Mount

BXG66 — Full tilt range (±90°).

BXG80 Accessories

— Full accessory ecosystem for the high-power model.

BX/BXG80 — Foot Mount

Foot Mount

BXG80 — Heavy-duty base for secure installs.

BX/BXG80 — 30º Swivel Mount

30º Swivel Mount

BXG80 — Smooth tilt (±30°) mechanism.

BX/BXG80 — 90º Swivel Mount

90º Swivel Mount

BXG80 — Extended tilt (±90°) bracket.

BX/BXG80 — 90º Fixed Mount

90º Fixed Mount

BXG80 — Locked 90° presentation bracket.

BX/BXG80 — 120º Swivel Unistrut Mount

120º Swivel Unistrut Mount

BXG80 — Unistrut adapter with ±120° sweep.

BX/BXG80 — Single Anti-glare Shield

Single Anti-glare Shield

BXG80 — Targeted glare reduction for one side.

BX/BXG80 — Double Anti-glare Shield

Double Anti-glare Shield

BXG80 — Dual-sided glare mitigation.

BX/BXG80 — Glare Control Louvre

Glare Control Louvre

BXG80 — Honeycomb louvre for beam control.

BX/BXG80 — Glare Control Insert

Glare Control Insert

BXG80 — Internal glare-limiting baffle.

BX/BXG80 — Feeder Cable

Feeder Cable

BXG80 — Input cable with sealed connectors.

BX/BXG80 — Link Cable

Link Cable

BXG80 — Fixture-to-fixture link leads.
