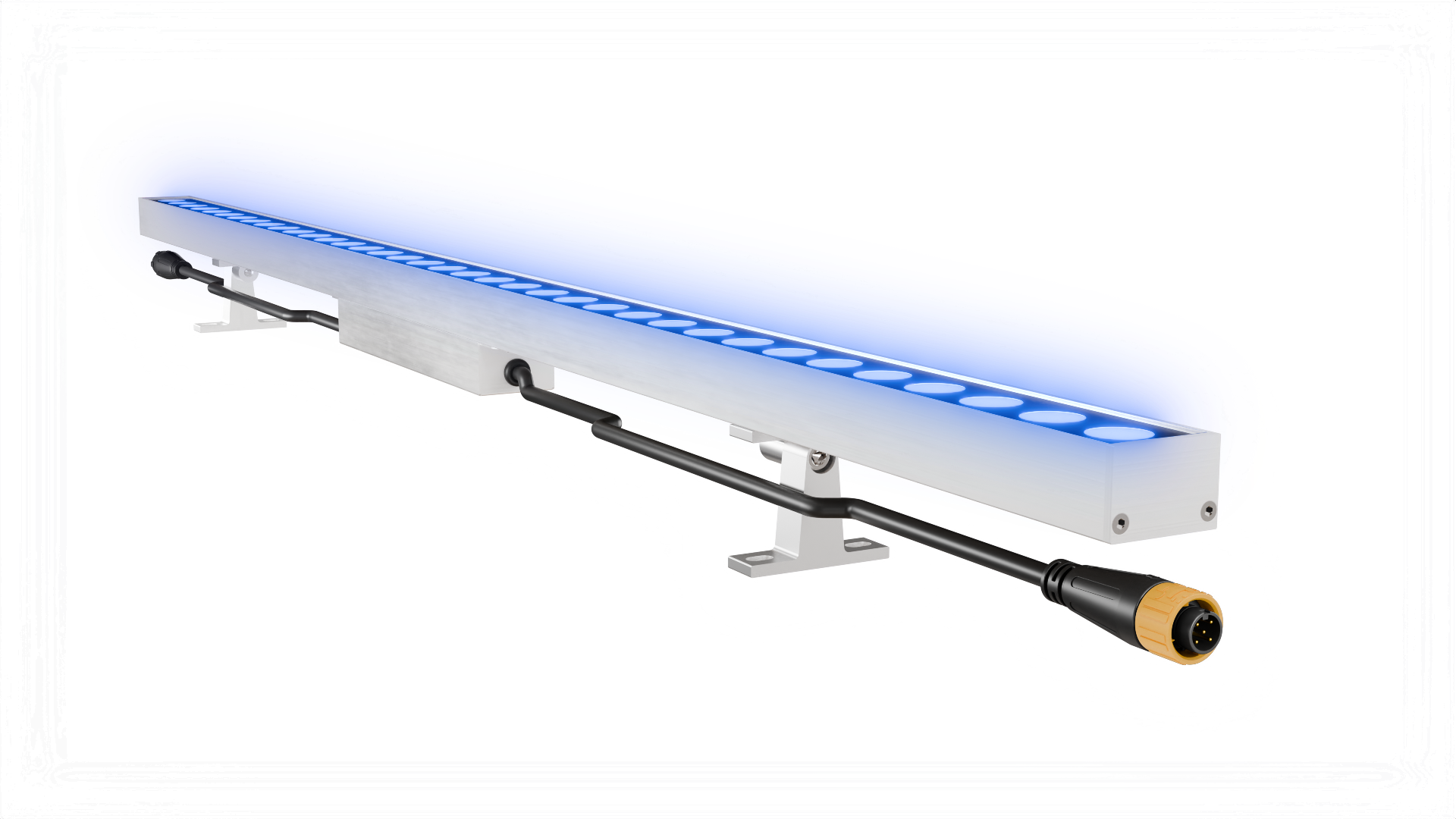

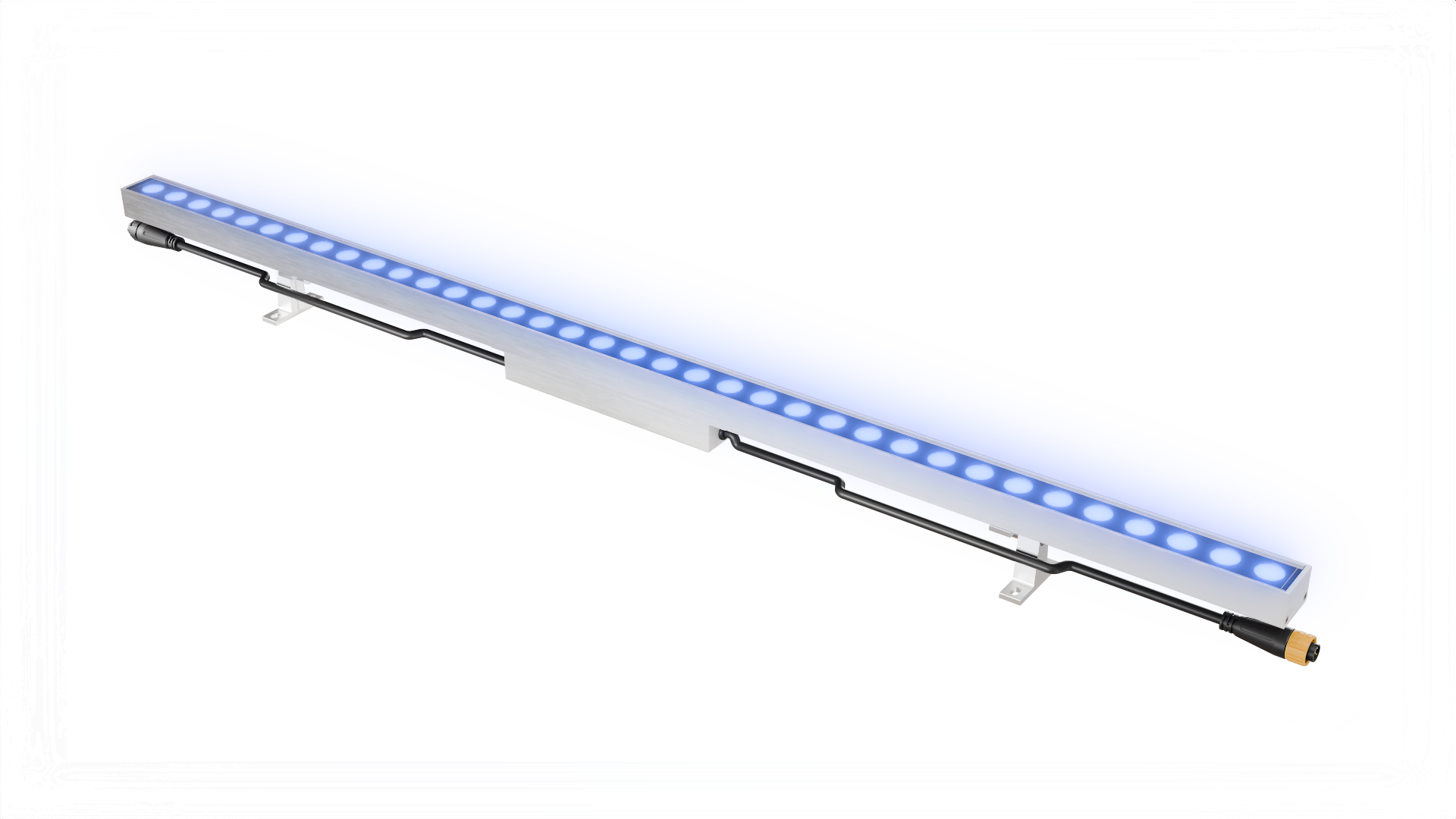

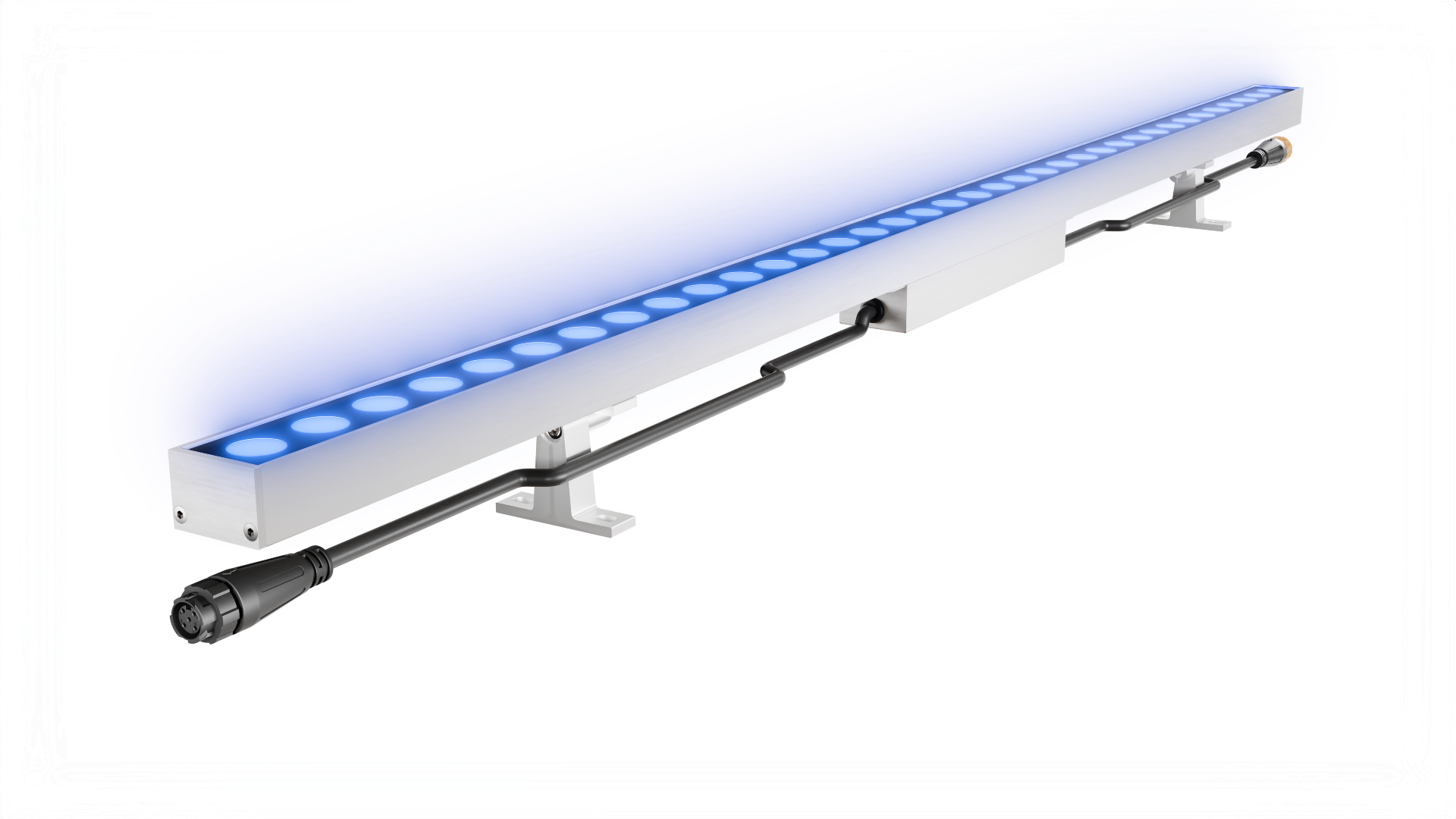

Pixel LED Grazer
G
40
The BXG 40 is a high-power LED grazer for architectural work, with bright uniform wash across facades, walls, and structural detail. Anodised aluminium body, tempered glass lens, IP66 and IK07. Multiple beam angles and control options for creative and precision lighting.
| Electrical | |
|---|---|
| Power Consumption | 20 W (500 mm) / 40 W (1000 mm) / 60 W (1500 mm) |
| Operating Voltage | 100–240 V AC |
| Operating Temperature | −20°C to +50°C (−4°F to +122°F) |
| Storage Temperature | −20°C to +80°C (−4°F to +176°F) |
| Physical | |
| Fixture Dimensions | (L) 500 mm / 1000 mm / 1500 mm · (W) 70 mm · (H) 35 mm |
| Housing | Anodised Aluminium, Black, White or Custom |
| Weight | 1.9 kg (500 mm) / 3.8 kg (1000 mm) / 5.7 kg (1500 mm) |
| Finish | Anodised Brushed Aluminium, Corrosion Resistant |
| Lens | Tempered Glass |
| Mounting Options | 30° Swivel Mount, 90° Swivel Mount, Foot Mount |
| Source Life | 50,000 hours / L70 at 25°C |
| Connection | 6-Pin AC / DMX Cable In/Out c/w IP Connectors |
| Connectors | Multipin IP68 Connectors |
| Optical | |
| Beam Angle | 15° · 25° · 40° · 60° · 10°×35° · 10°×60° · 30°×60° |
| Pixels | Up to 6 pixels per 1.5 m / fixture |
| CRI | >82 (92 available on request) |
| Colour Range |
|
| White CCT |
2400K
2700K
3000K
3500K
4000K
5000K
6000K
|
| LED Type | High Power LEDs |
| Luminous Flux | 3378 lm @ 3000K, 10° Lens |
| Control | |
| Control Protocols |
X-Stream
DMX
SPI
|
| Ratings | |
| Ingress & Impact |
IP66
IK07
|
| Warranty | 5 Years (Extendable Warranty Available) |
Note: Specification summary for quick evaluation and layout planning. Length, beam angle, colour, and finish are configurable to suit your grazer installation.
