B G 24

Pixel LED grazer for precise, uniform façade illumination with durable anodised aluminium housing—engineered for architectural and infrastructure applications. Rated IP66 for reliable outdoor performance and 24 V DC operation.

  • Beam angles 25°, 40°, 20°×40°
  • Controls: DMX / SPI / PWM / X-Stream
  • Lengths: 500 mm / 1000 mm (anodised Alu.)
  • Outdoor-ready IP66, mounts: 30°/90° swivel or foot

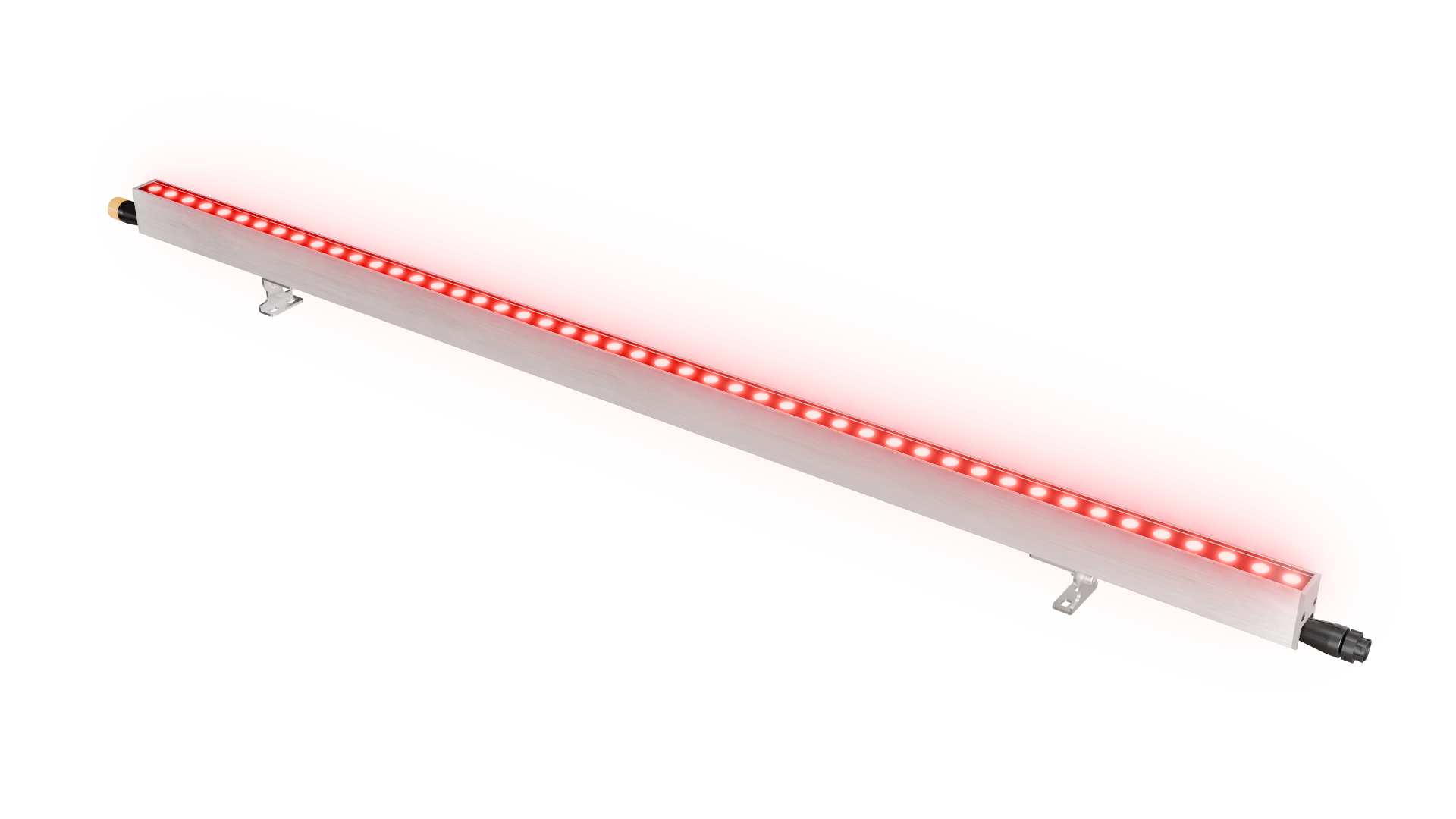

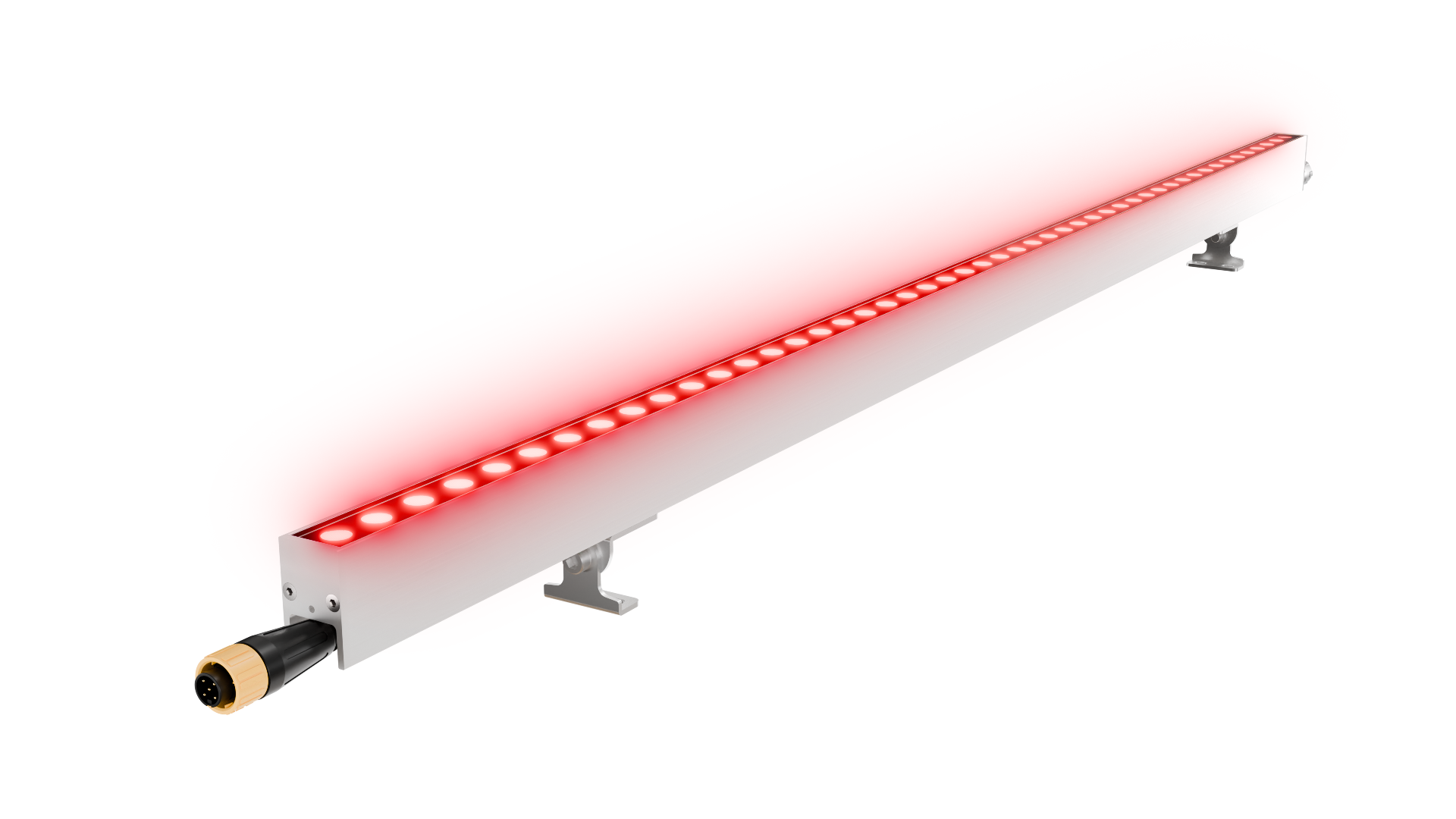

BXG 24 Grazer Wash render

BXG24 Grazer Key Specifications

BXG24 At a Glance Overview
  • Dimensions: Available in 500mm or 1000mm lengths with 25mm width and 70mm height.
  • LED Colours: Supports RGB, RGBW, RGBA, Dynamic White and Static White configurations.
  • Beam Angles: Offered in 25°, 40°, 20×40° white, or 40° for Trichip RGB and White.
  • Mounting Options: Includes foot mount and adjustable 30° or 90° swivel brackets.
  • Control Protocols: Compatible with DMX512, SPI, PWM and LEDCTRL’s X-Stream platform.
BXG24 Top Dimensions
BXG24 Front Profile

BXG24 Grazer Key Specifications

BXG24 At a Glance Overview
  • Dimensions: Available in 500mm or 1000mm lengths with 25mm width and 70mm height.
  • LED Colours: Supports RGB, RGBW, RGBA, Dynamic White and Static White configurations.
  • Beam Angles: Offered in 25°, 40°, 20×40° white, or 40° for Trichip RGB and White.
  • Mounting Options: Includes foot mount and adjustable 30° or 90° swivel brackets.
  • Control Protocols: Compatible with DMX512, SPI, PWM and LEDCTRL’s X-Stream platform.
BXG24 Top Dimensions
BXG24 Front Profile

BXG24 Grazer Key Specifications

BXG24 Front Profile
BXG24 At a Glance Overview
  • Dimensions: Available in 500 mm or 1000 mm lengths with 25 mm width and 70 mm height.
  • LED Colours: Supports RGB, RGBW, RGBA, Dynamic White and Static White configurations.
  • Beam Angles: Offered in 25°, 40°, 20×40° white, or 40° for Trichip RGB and White.
  • Mounting Options: Includes foot mount and adjustable 30° or 90° swivel brackets.
  • Control Protocols: Compatible with DMX512, SPI, PWM and LEDCTRL’s X-Stream platform.
BXG24 Top Dimensions

BXG24 Grazer Downloads

Specifications

BXG24_Grazer_Specification_Sheet.pdf

BXG24 Accessories

Mounting accessories designed for the BXG24 Architectural Grazer.

BXG24 — Foot Mount

Foot Mount

BXG24 — Compact base for direct or flush installs.

BXG24 — 30º Swivel Mount

30º Swivel Mount

BXG24 — Quick-aim bracket with ±30° adjustment.

BXG24 — 90º Swivel Mount

90º Swivel Mount

BXG24 — Extended-angle bracket (±90° tilt).
