S 4

4-port long-range pixel receiver for LEDCTRL X-Data links—engineered to drive large SPI lighting runs from a remote MX96PRO transmitter.

  • 4 Fused Outputs (7.5 A)
  • 5–24 V DC Input
  • ±24 V Fault + ESD
  • Up to 300 m Link

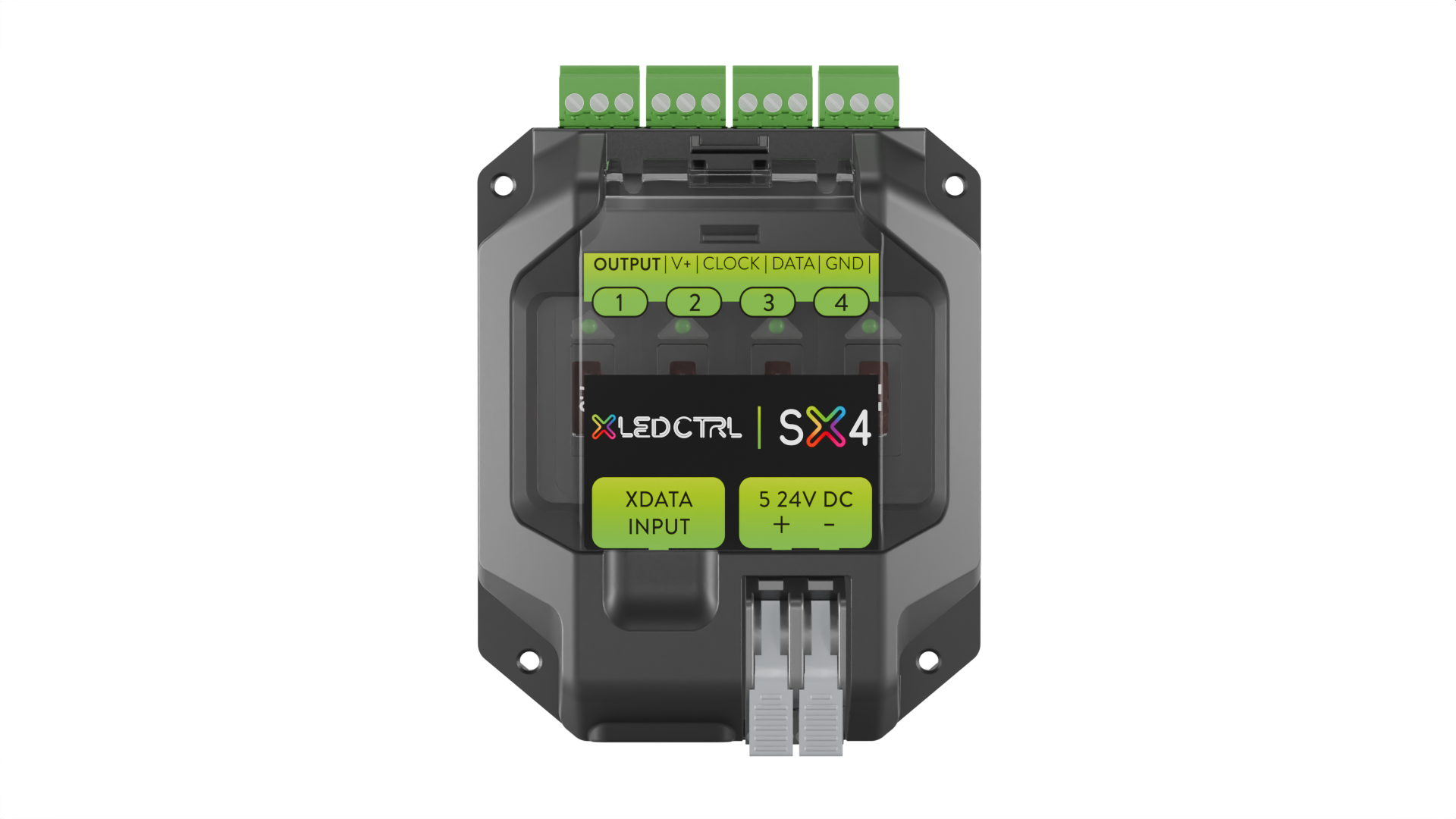

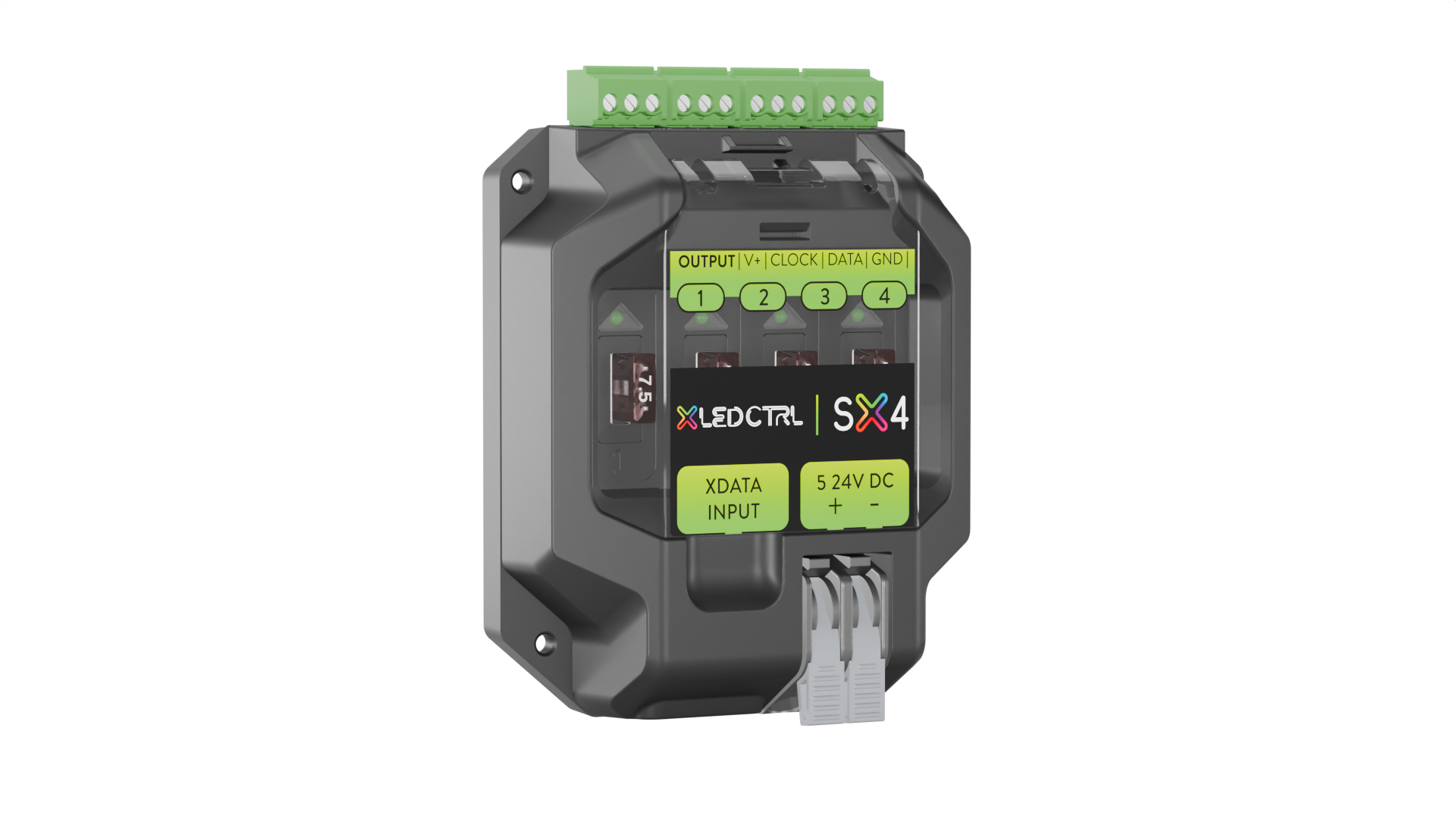

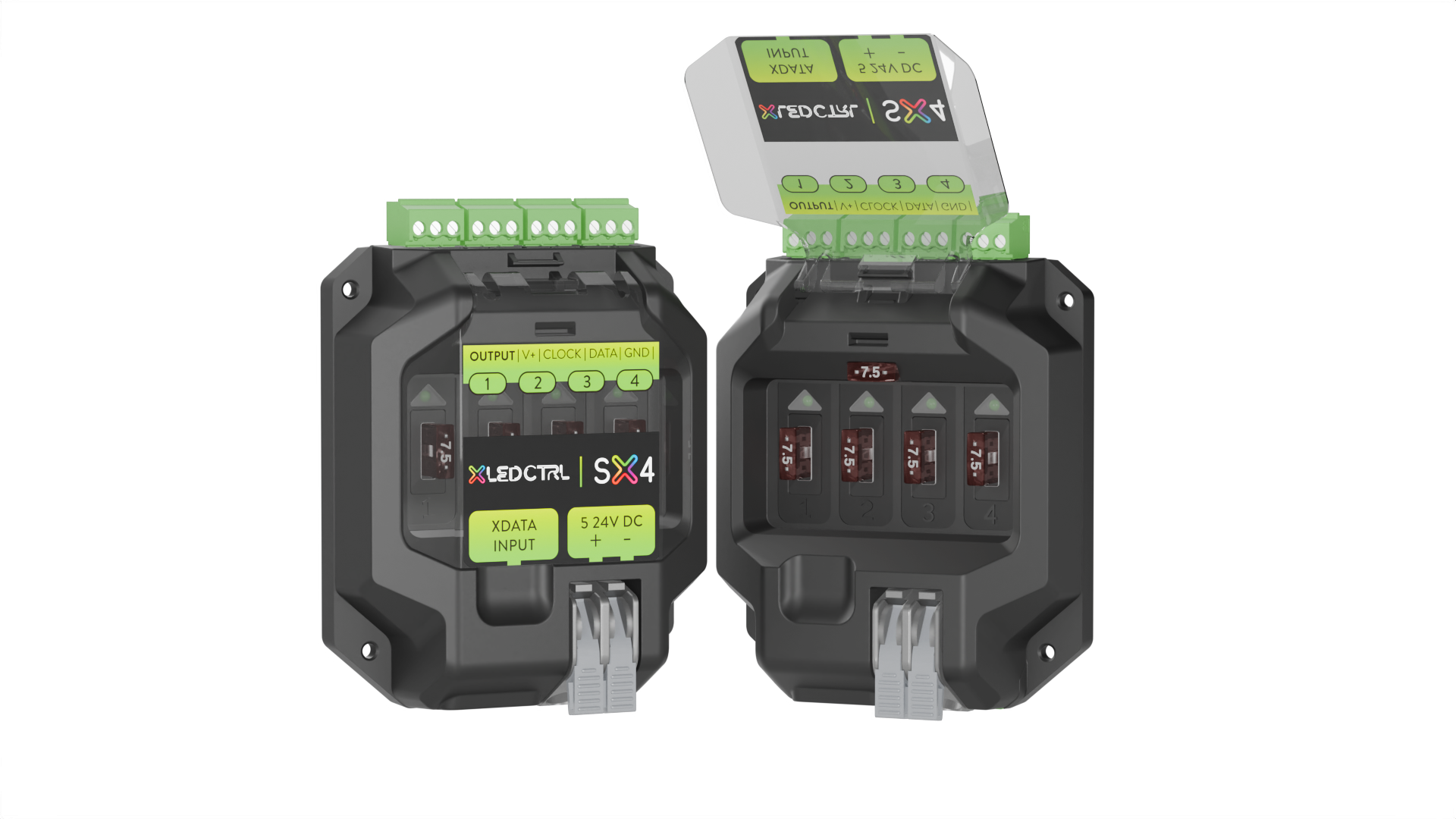

SX4 receiver render

SX4 Long-Range Receiver Key Specifications

  • Four independent channels, each with a 7.5 A mini blade fuse to ensure circuit protection and easy reset in the event of an overload.
  • Data Input: Differential signal from MX96PRO up to 300 m for noise-free reception in large installations.
  • LED Capacity: 510 RGB or 384 RGBW pixels per channel.
  • 3 universes per output for a total of 24 Art-Net/sACN universes, enabling extensive multi-zone control in complex lighting designs.
  • Dimensions: 95 × 78 × 33 mm.
  • Power: 5 V–24 V DC.
  • Temp Range: –20 °C to +55 °C.
  • Protection: Over-current, short-circuit, surge (±24 V), and ESD safeguards ensure reliable operation.
  • Mounting: Wall bracket included; optional DIN-rail clip available.
  • Ideal for multi-zone LED setups requiring robust, long-distance signal delivery.
SX4 overall dimensions SX4 mounting dimensions

SX4 Long-Range Receiver Key Specifications

  • Four independent channels, each with a 7.5 A mini blade fuse to ensure circuit protection and easy reset in the event of an overload.
  • Data Input: Differential signal from MX96PRO up to 300 m for noise-free reception in large installations.
  • LED Capacity: 510 RGB or 384 RGBW pixels per channel.
  • 3 universes per output for a total of 24 Art-Net/sACN universes, enabling extensive multi-zone control in complex lighting designs.
  • Dimensions: 95 × 78 × 33 mm.
  • Power: 5 V–24 V DC.
  • Temp Range: –20 °C to +55 °C.
  • Protection: Over-current, short-circuit, surge (±24 V), and ESD safeguards ensure reliable operation.
  • Mounting: Wall bracket included; optional DIN-rail clip available.
  • Ideal for multi-zone LED setups requiring robust, long-distance signal delivery.
SX4 overall dimensions SX4 mounting dimensions

SX4 Long-Range Receiver Key Specifications

  • Four independent channels, each with a 7.5 A mini blade fuse to ensure circuit protection and easy reset in the event of an overload.
  • Data Input: Differential signal from MX96PRO up to 300 m for noise-free reception in large installations.
  • LED Capacity: 510 RGB or 384 RGBW pixels per channel.
  • 3 universes per output for a total of 24 Art-Net/sACN universes, enabling extensive multi-zone control in complex lighting designs.
  • Dimensions: 95 × 78 × 33 mm.
  • Power: 5 V–24 V DC.
  • Temp Range: –20 °C to +55 °C.
  • Protection: Over-current, short-circuit, surge (±24 V), and ESD safeguards ensure reliable operation.
  • Mounting: Wall bracket included; optional DIN-rail clip available.
  • Ideal for multi-zone LED setups requiring robust, long-distance signal delivery.
SX4 overall dimensions SX4 mounting dimensions

SX4 Long-Range Receiver Downloads

Specifications

SX4_Receiver_Specifications_Sheet.pdf

SX4 Long-Range Receiver Accessories

Mounting and add-ons designed to make installations faster and cleaner.
