P U 9

High-output and durable, the PUX9 is a compact RGBW pixel puck engineered for large-scale façades, media walls, and structural accents – delivering precise optics, dot-free diffusion, and robust illumination construction for bold visual expression.

Optics 120º – 180º
Build IP67 · Anodised Aluminium
Colour RGB / RGBW
Control X-Stream / SPI / DMX

Features Specifications Downloads Accessories

PUX 9 PRODUCT TYPES

PUX 9 Standard

PUX 9 Small Clear Diffuser

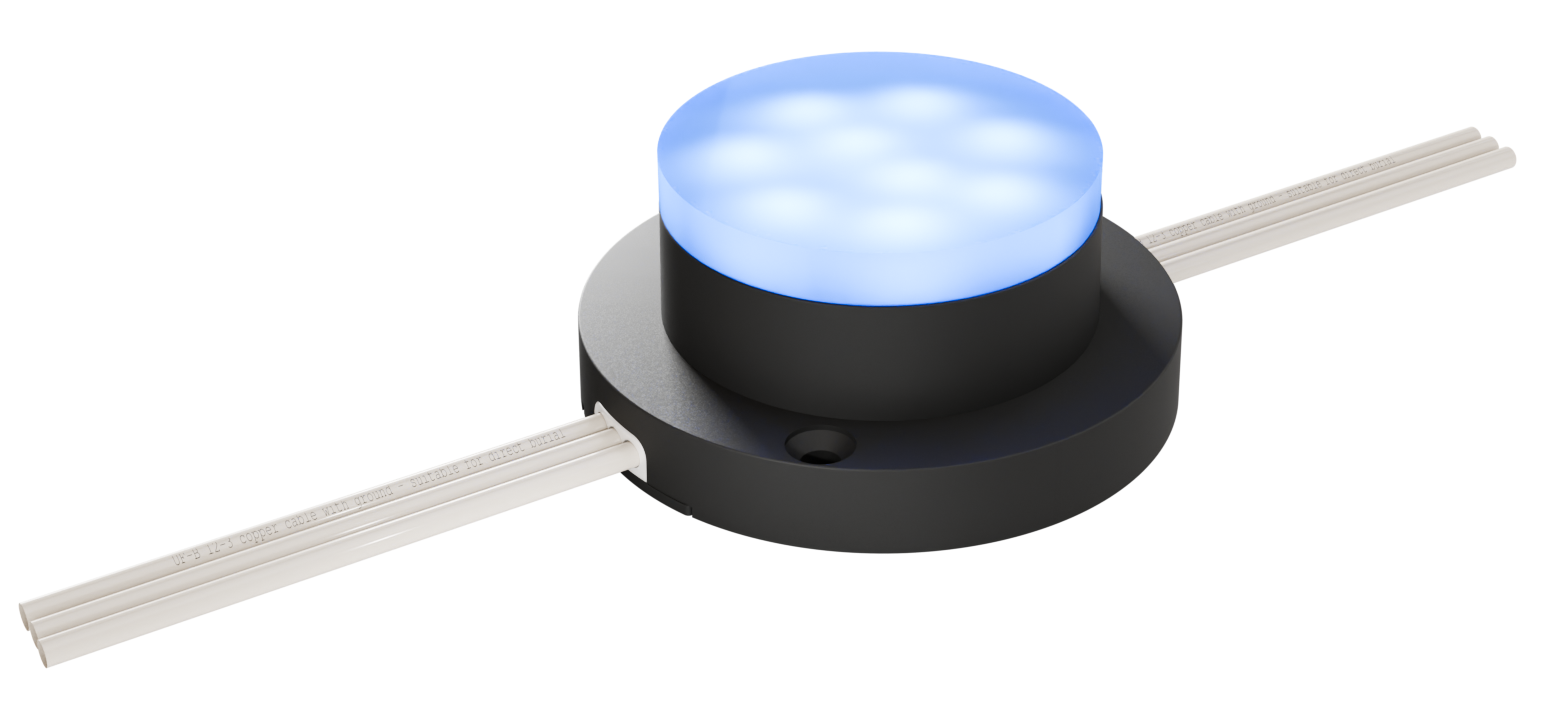

PUX 9 Medium Clear Diffuser

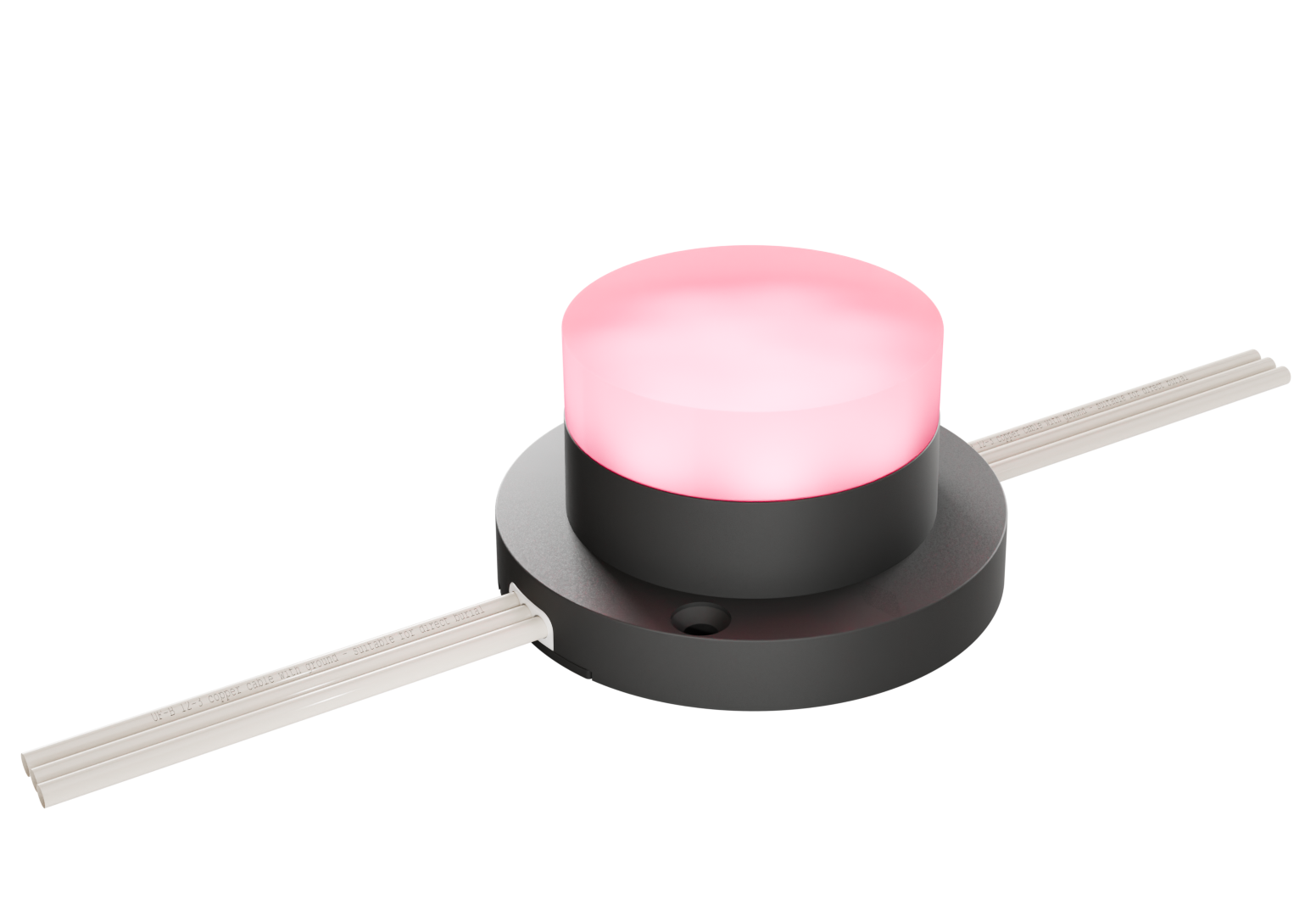

PUX 9 Big Clear Diffuser

PUX 9 Small Dome Diffuser

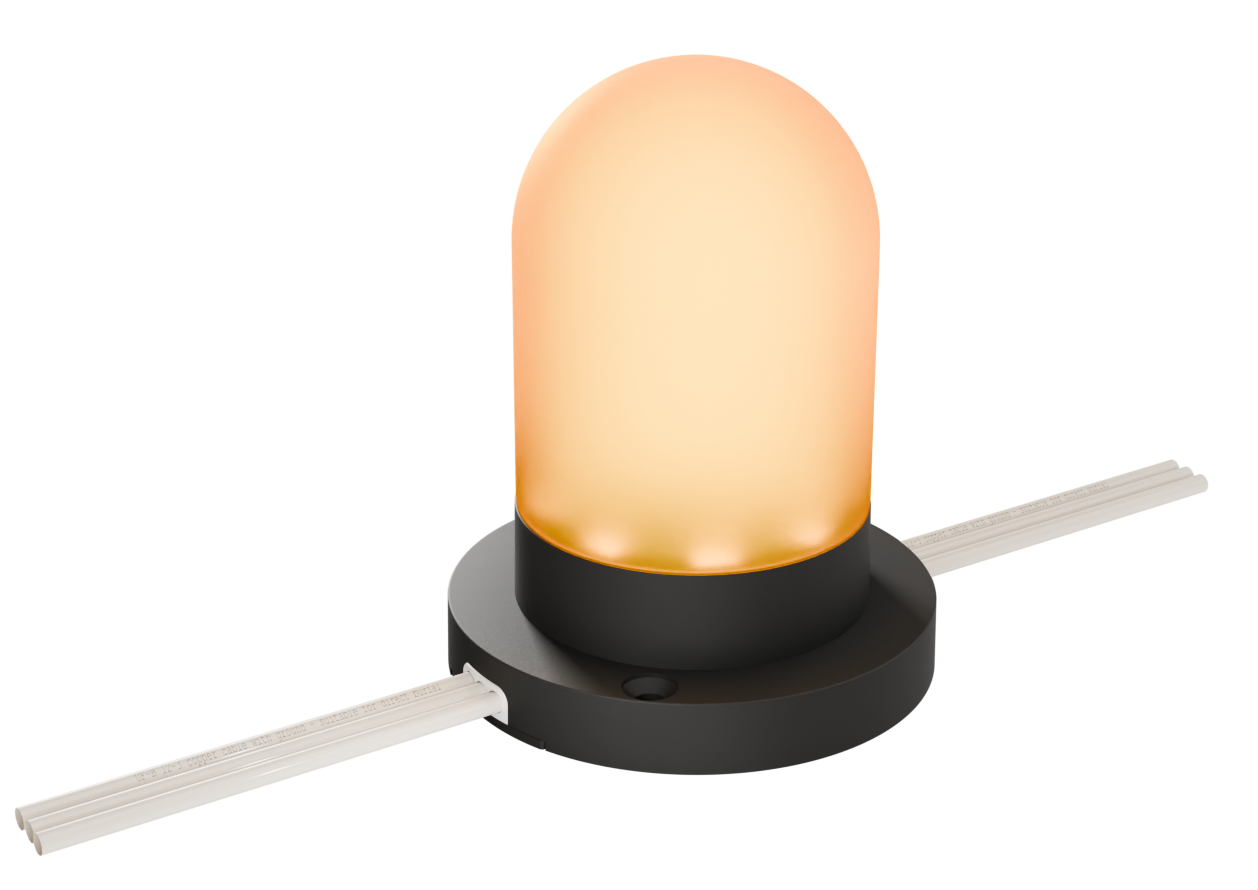

PUX 9 Big Dome Diffuser

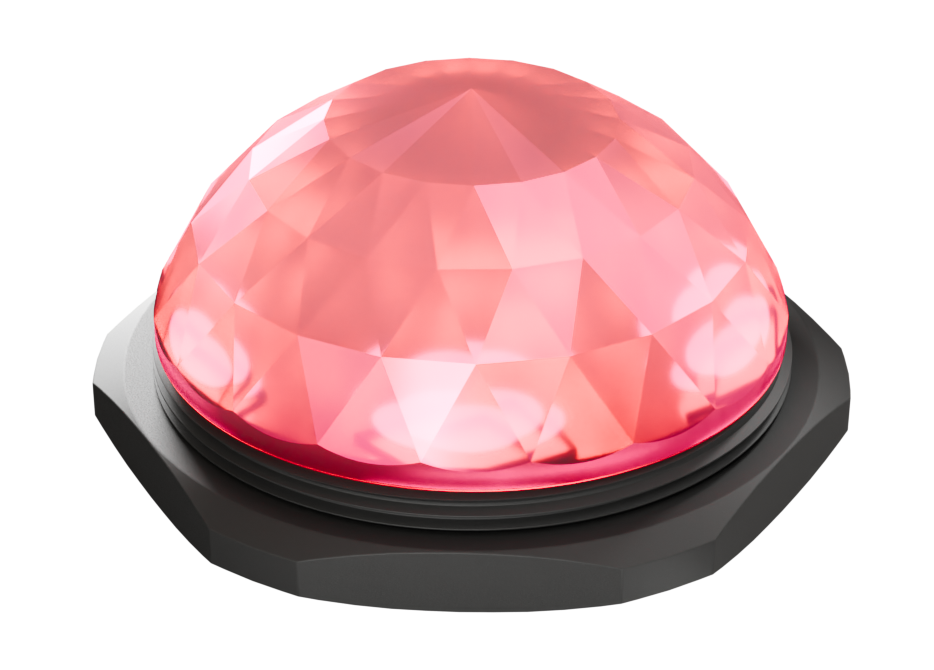

PUX 9 Crystal

PUX 9 Pixel Puck – Key Specifications

Dimensions: Ø40 mm × 13 mm compact aluminium body; each unit weighs 0.05 kg.
LED Colour: Available in RGB, RGBW, RGBA, and Static White with high-output 5050 SMDs.
Beam Angle: Wide 120° to 180° optical spread depending on diffuser shape or finish.
Mounting Options: Clip Mount, Surface Mount, or U-Channel for seamless integration.
Control Protocols: X-Stream, SPI, DMX, PWM with plug-and-play 3-pin IP67 connectors.
