Pixel Puck
6M

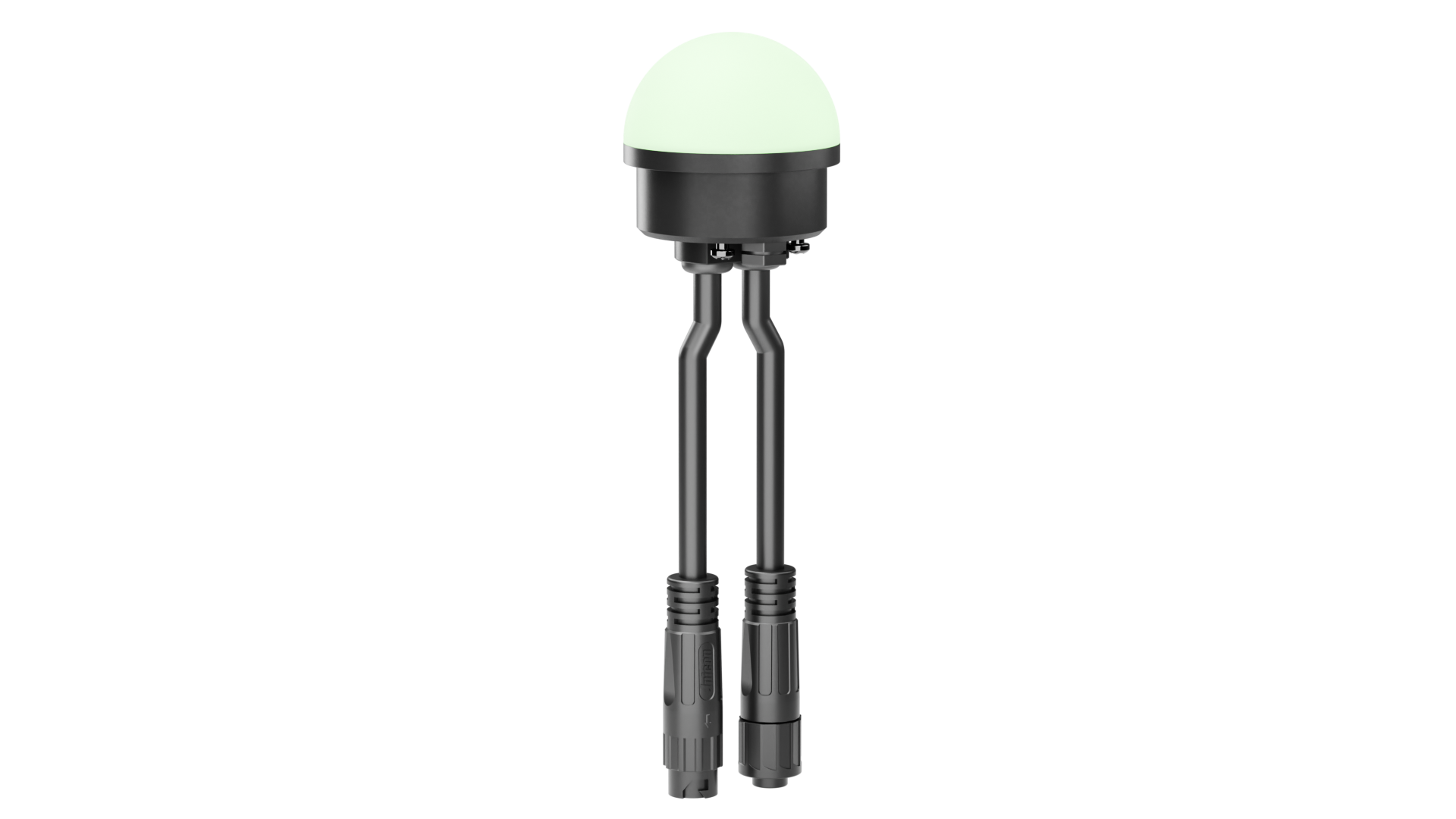

The PUX 6M is a compact pixel dot for detailed media façades, feature lighting, and low-profile architectural effects. Its 150° viewing angle delivers smooth, uniform output in RGBW, Dynamic White, and Mono White. Onboard UCS8904 SPI with integrated signal boosting. IP67 die-cast aluminium with interchangeable flat or dome covers.
| Electrical | |
|---|---|
| Power Consumption | 2 W max |
| Operating Voltage | 24 V DC |
| Operating Temperature | −20°C to +50°C (−4°F to +122°F) |
| Storage Temperature | −20°C to +70°C (−4°F to +158°F) |
| Physical | |
| Fixture Dimensions | Ø50 mm × 48 mm (H) |
| Housing | Die-cast Aluminium (Grey / Black / White / Custom RAL) |

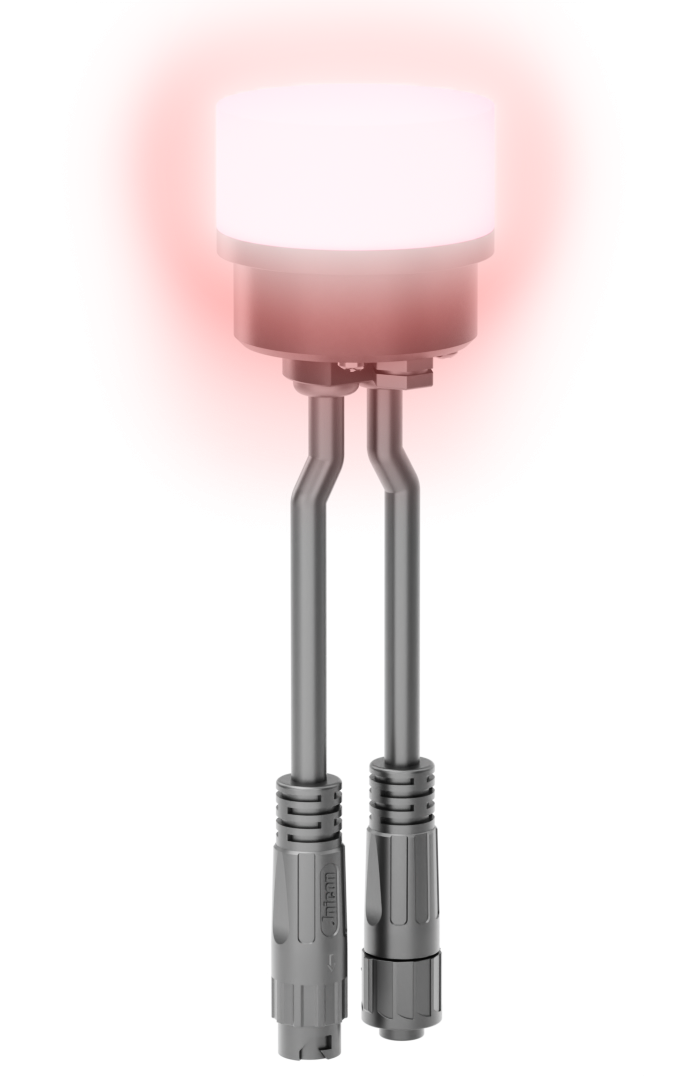

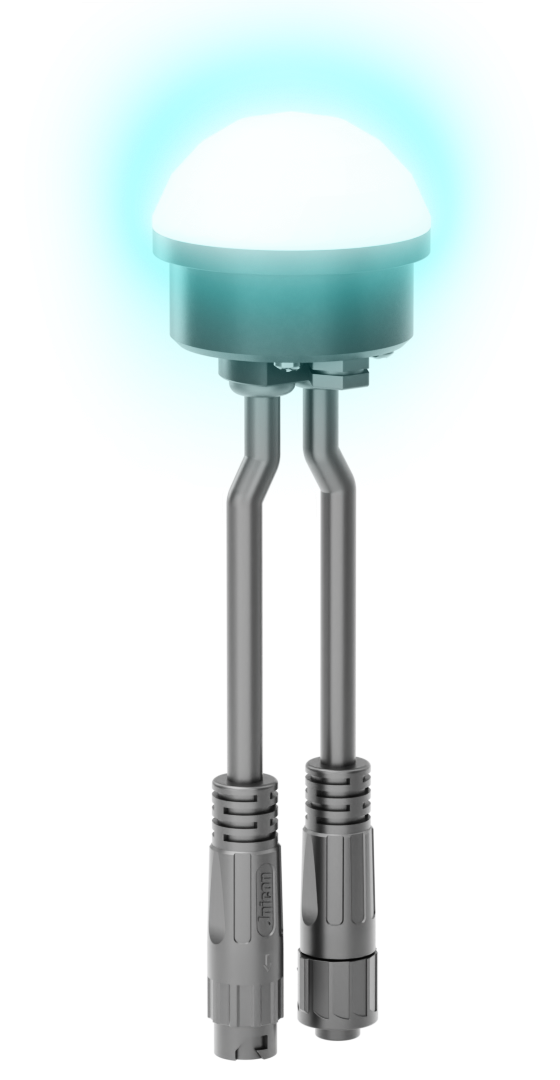

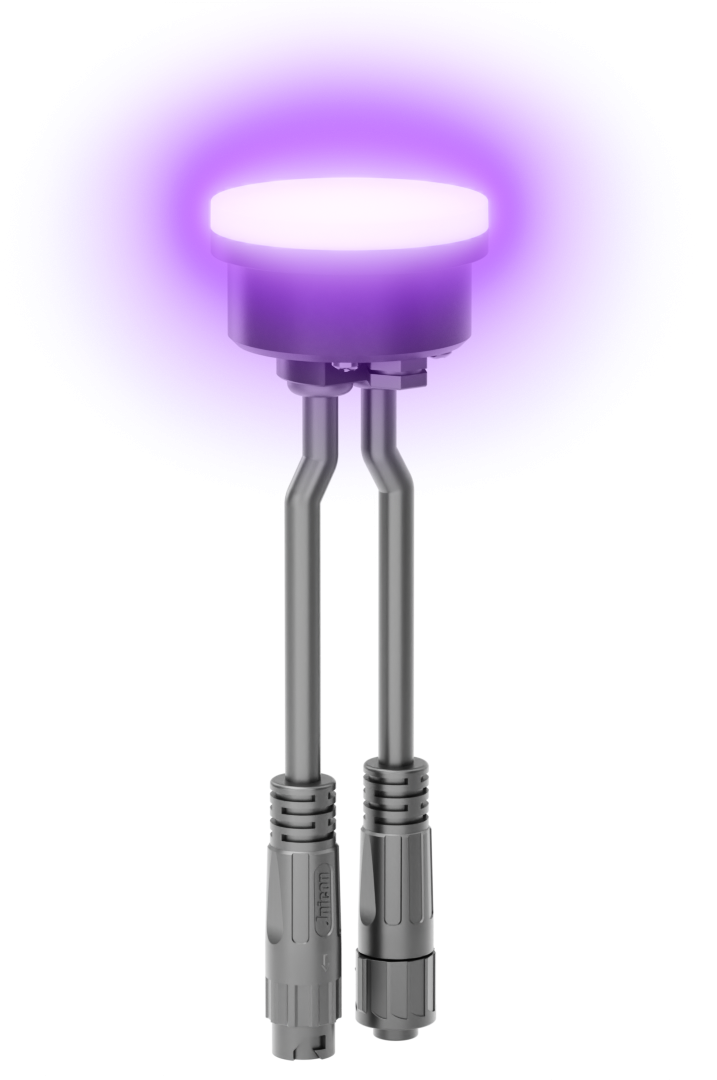

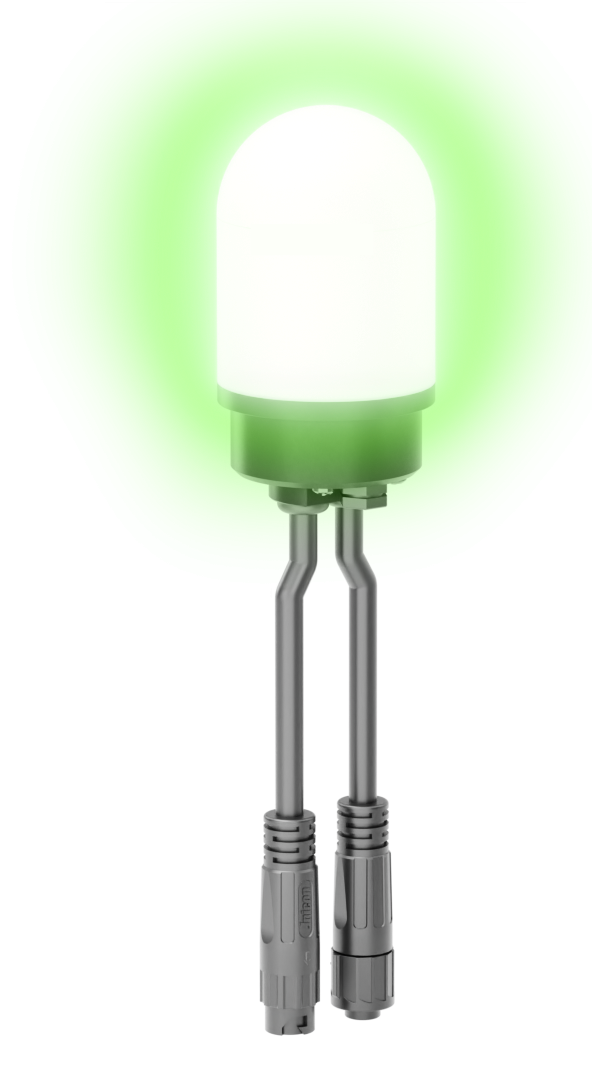

| Cover | PMMA (flat or dome, interchangeable) |

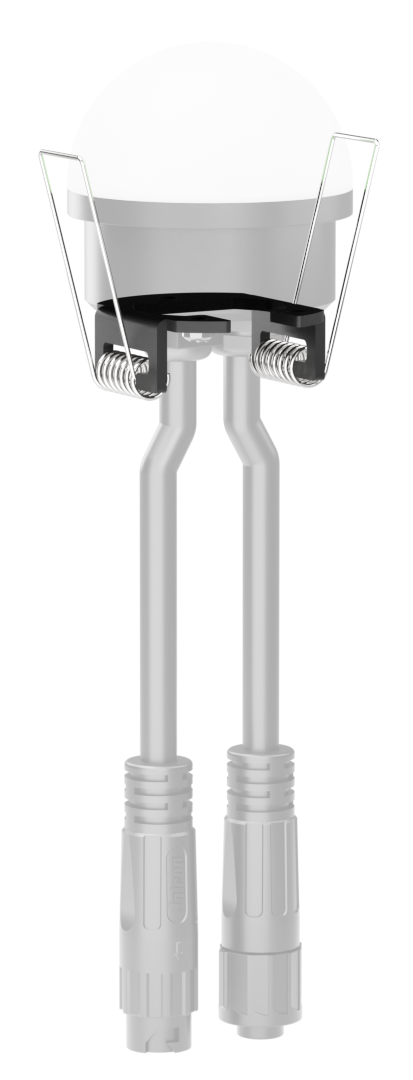

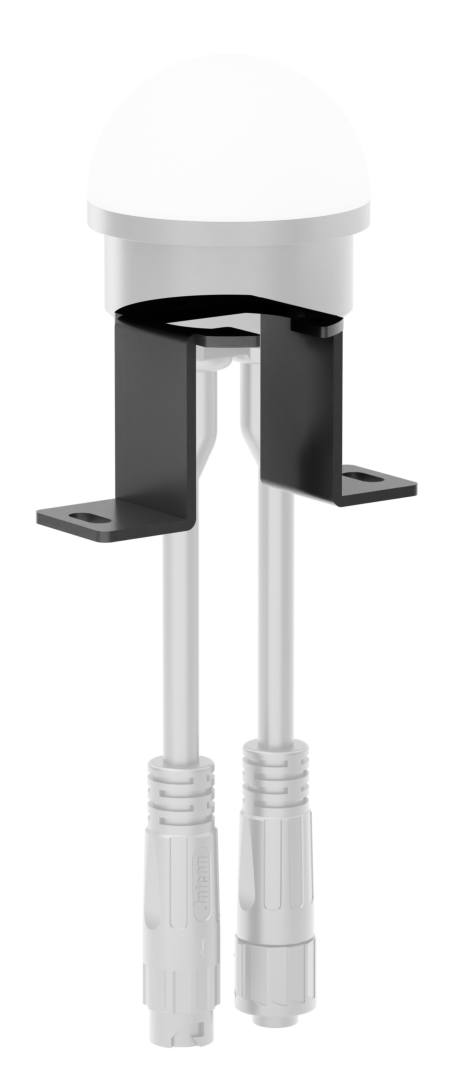

| Mounting Options | Spring Clips (ceiling), Bracket, Clip Mount |
| Source Life | 50,000–70,000 hours / L70 at 25°C |
| Connection | 4-core Seetronics XLR IP connectors (input/output) |
| Optical | |
| Viewing Angle | 150° |
| Colour Range |
|
| White CCT |
2400K
2700K
3000K
3500K
4000K
5000K
6000K
|
| Luminous Flux | 54 lm @ RGBW full on (clear flat cover) |
| Control | |
| Control Protocols |
X-Stream
DMX
SPI
|
| Ratings | |
| Ingress Rating |
IP67
|
| Warranty | 5 Years (Extendable Warranty Available) |
Note: Specification summary for quick evaluation and layout planning. Colour, CCT, control, cover, and housing finish are configurable to suit your pixel puck installation.
