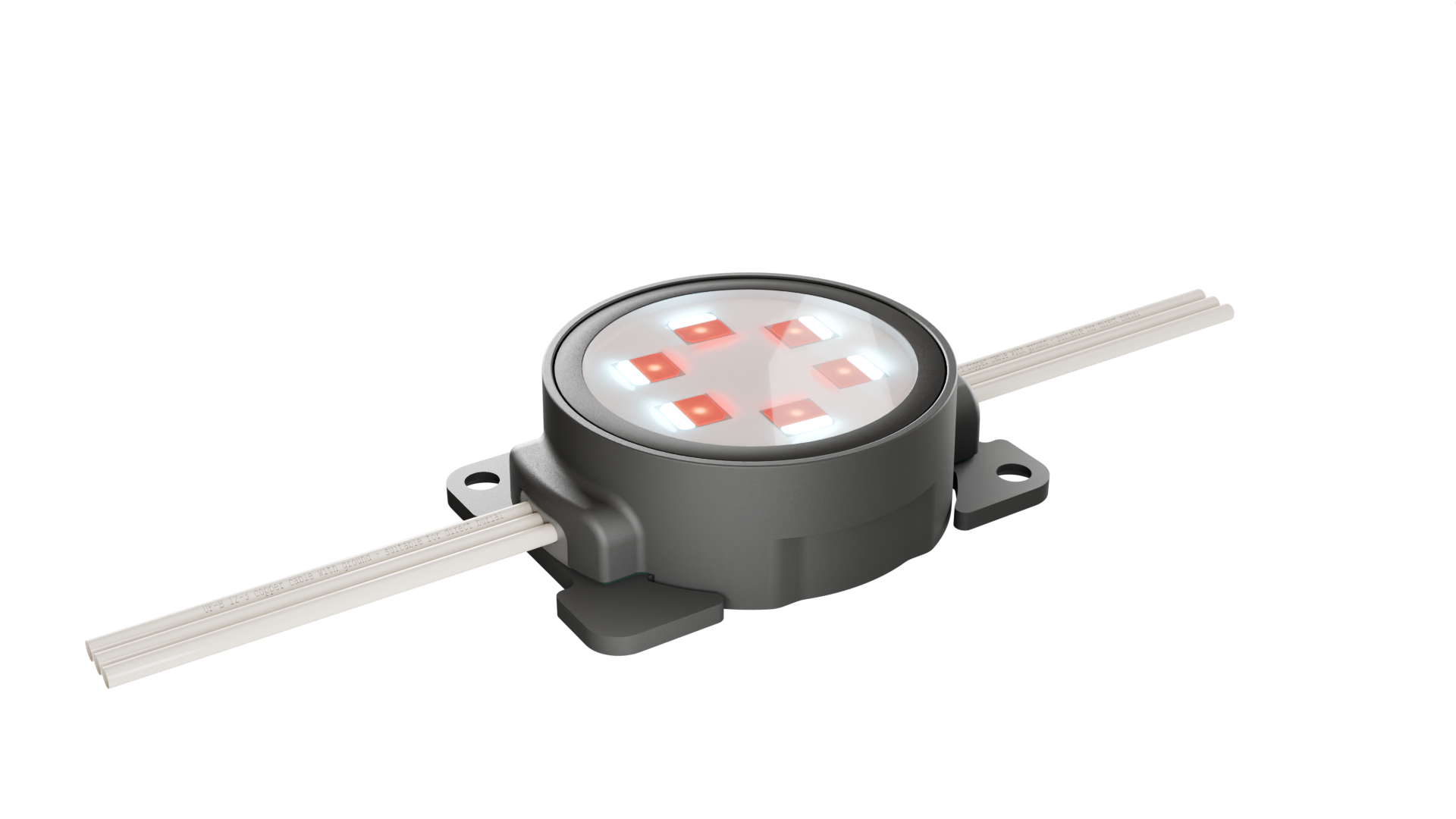

PU 6

Compact and precise, the PUX6 is a direct-view pixel puck delivering high-fidelity RGBW and UV output for intricate façades, signage, and media features – precision-built with a sealed aluminium housing and diffuser for reliable performance in any environment.

Power 24 V DC · 1.5–1.8 W
Pitch 70–350
Control X-Stream / SPI · up to 50/run
Build IP67 · Anodised Aluminium

Features Specifications Downloads Accessories

PUX 6 PRODUCT TYPES

PUX 6 Standard

PUX 6 Small Clear Diffuser

PUX 6 Medium Clear Diffuser

PUX 6 Big Clear Diffuser

PUX 6 Small Dome Diffuser

PUX 6 Big Dome Diffuser

PUX 6 Crystal

PUX 6 Pixel Puck – Key Specifications

Dimensions: Ø40 mm × 13 mm compact profile, 0.05 kg per unit.
LED Colour: RGB, RGBW, RGBA, Static White with custom RAL finish options.
Beam Angle: 120° to 180° depending on diffuser (Flat, Dome, Frosted, Tall Dome).
Mounting Options: Clip, Surface Mount, U-Channel with IP67 3-pin plug-and-play connectors.
Control Protocols: X-Stream, SPI, DMX, PWM with up to 50 units per run.
