High-Resolution Media Bar
DM

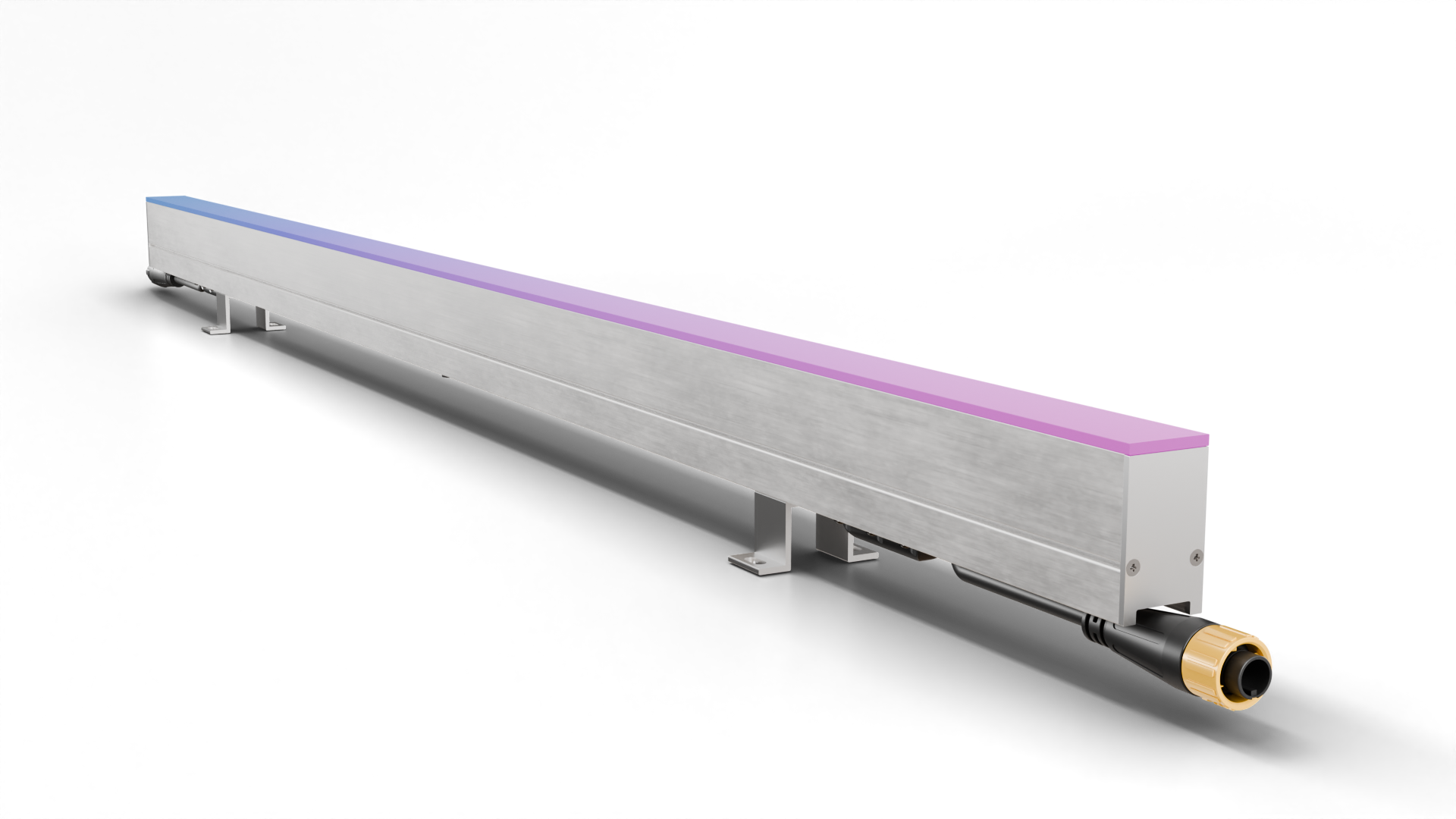

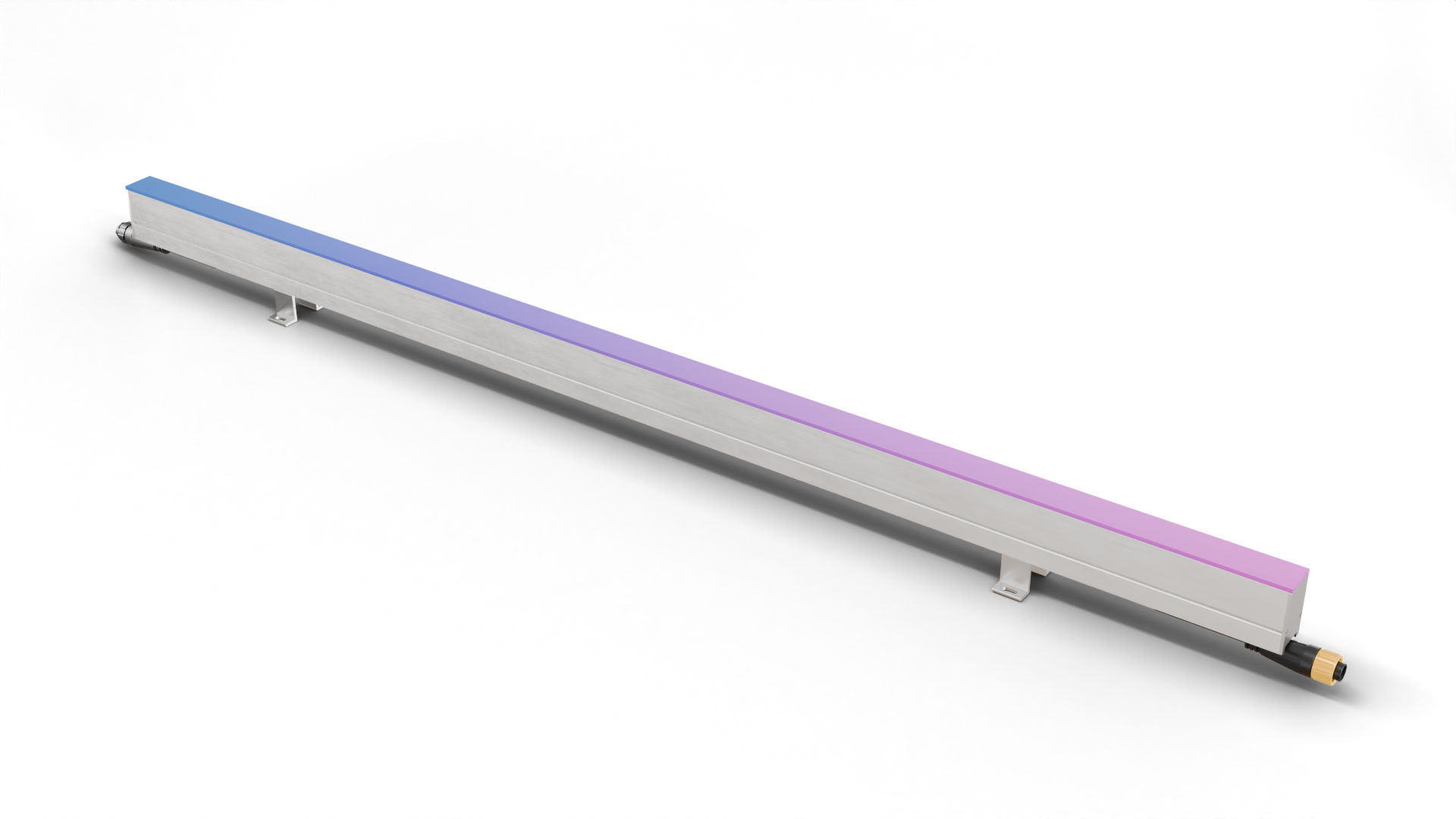

The LXDM is a slim direct-view media bar for indoor and outdoor work, with smooth dynamic media output. X-Stream gives pixel data redundancy and long data runs for easier installs. Multiple mounting methods and push-lock connectors handle signage, building facades, and media applications.
| Electrical | |
|---|---|
| Power Consumption | 14 W per metre |
| Operating Voltage | 24 V DC / 48 V DC |
| Operating Temperature | −20°C to +50°C (−4°F to +122°F) |
| Storage Temperature | −20°C to +70°C (−4°F to +158°F) |
| Physical | |
| Fixture Dimensions | (L) 100 mm (Min) – 1200 mm (Max) · (W) 26 mm (Flat) / 29 mm (Dome) · (H) 68 mm (Flat) / 70 mm (Dome) |
| Housing | Aluminium Standard or Custom RAL |
| UV Stable Lens | PMMA Opal Diffuser |
| Weight / m | 2 kg / m |

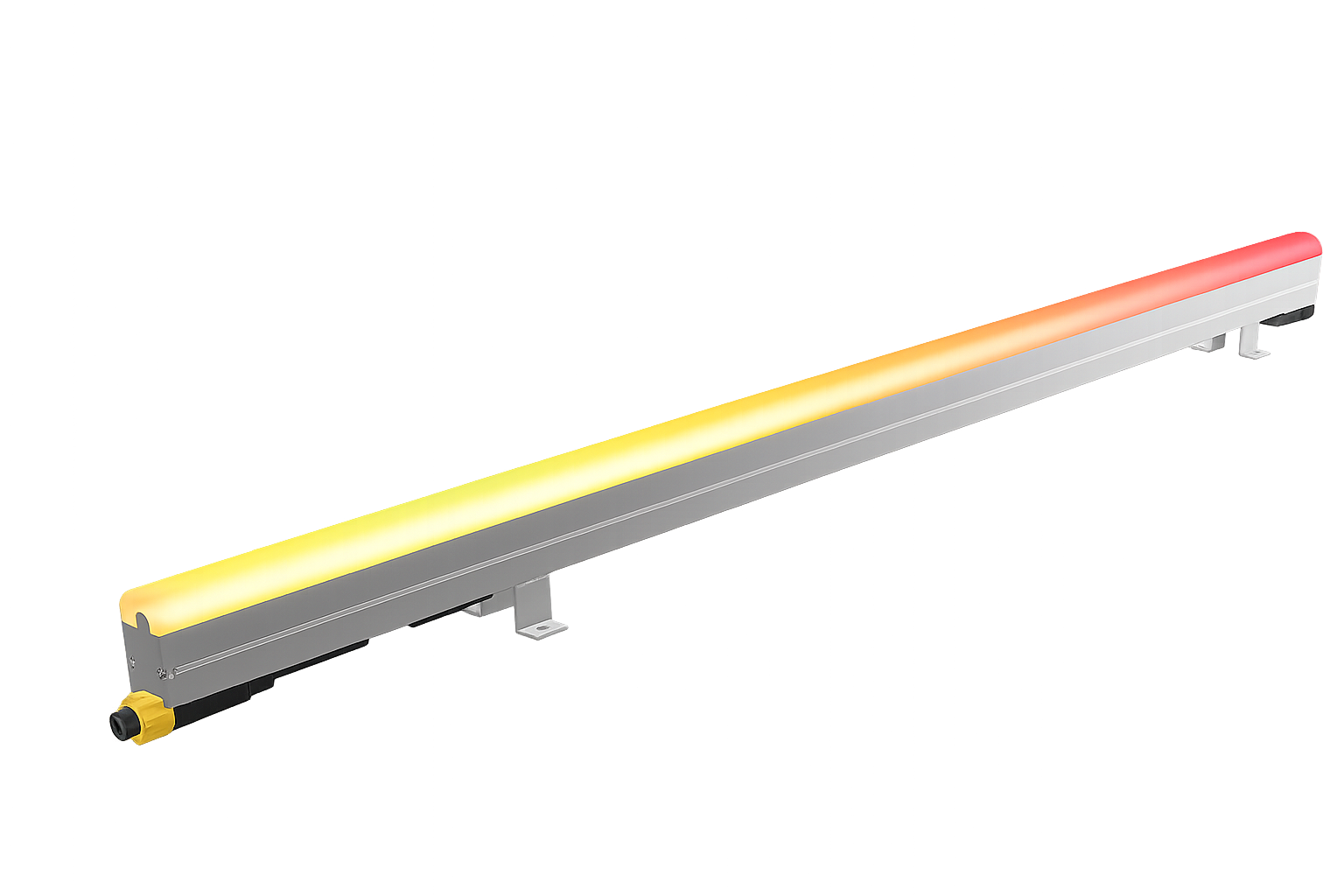

| Diffuser | Flat or Dome |
| Connectors | Multipin IP67 push lock |
| Mounting Options | Clip Mount, Foot Mount, and Hook-on Brackets |
| Source Life | 50,000 hours / L70 at 25°C |
| Optical | |
| Beam Angle | 120° (Flat) / 180° (Dome) |
| Colour Range |
|
| White CCT |
2400K
2700K
3000K
3500K
4000K
5000K
6000K
|
| Pixel Density | 10 to 50 pixels per metre |
| Total Lumens | 390 lm/m |
| LED Type | 5050 SMD LEDs |
| Control | |
| Control Protocols |
X-Stream
DMX
SPI
|
| Ratings | |
| Ingress & Impact |
IP66
IK07
|
| Warranty | 5 Years (Extendable Warranty Available) |
Note: Specification summary for quick evaluation and layout planning. Pixel density, mounting options and finishes are configurable to suit your media bar installation.
