Control Systems

HARDWARE RANGE

Pixel drivers, power supplies, and distribution units — engineered for reliable, scalable control with native DMX, SPI, and Art-Net integration.

DMX / RDM — SPI Pixels — Art-Net / sACN

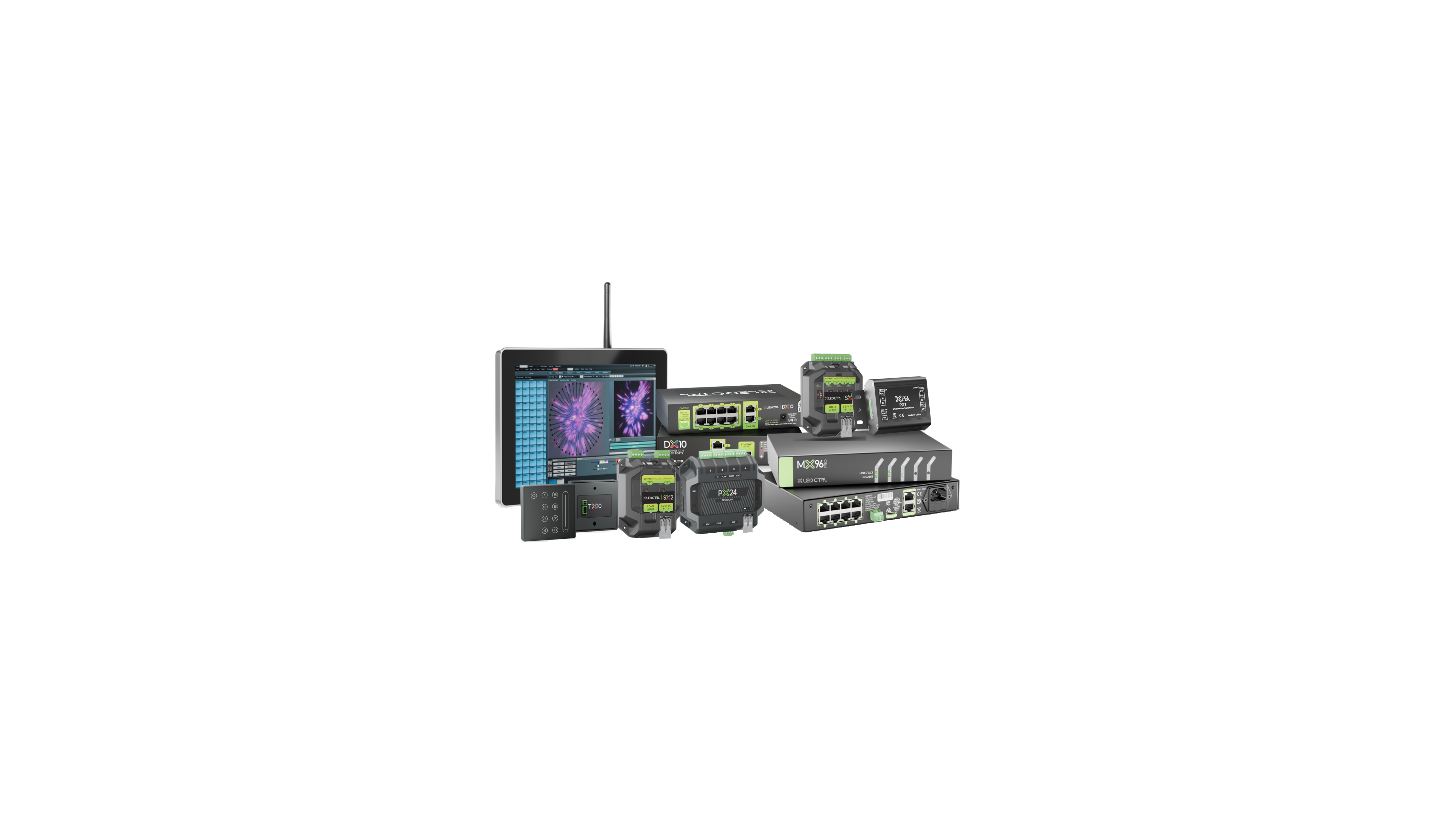

LEDCTRL control hardware product family
LEDCTRL hardware lineup
See models

CONTROL HARDWARE MODELS

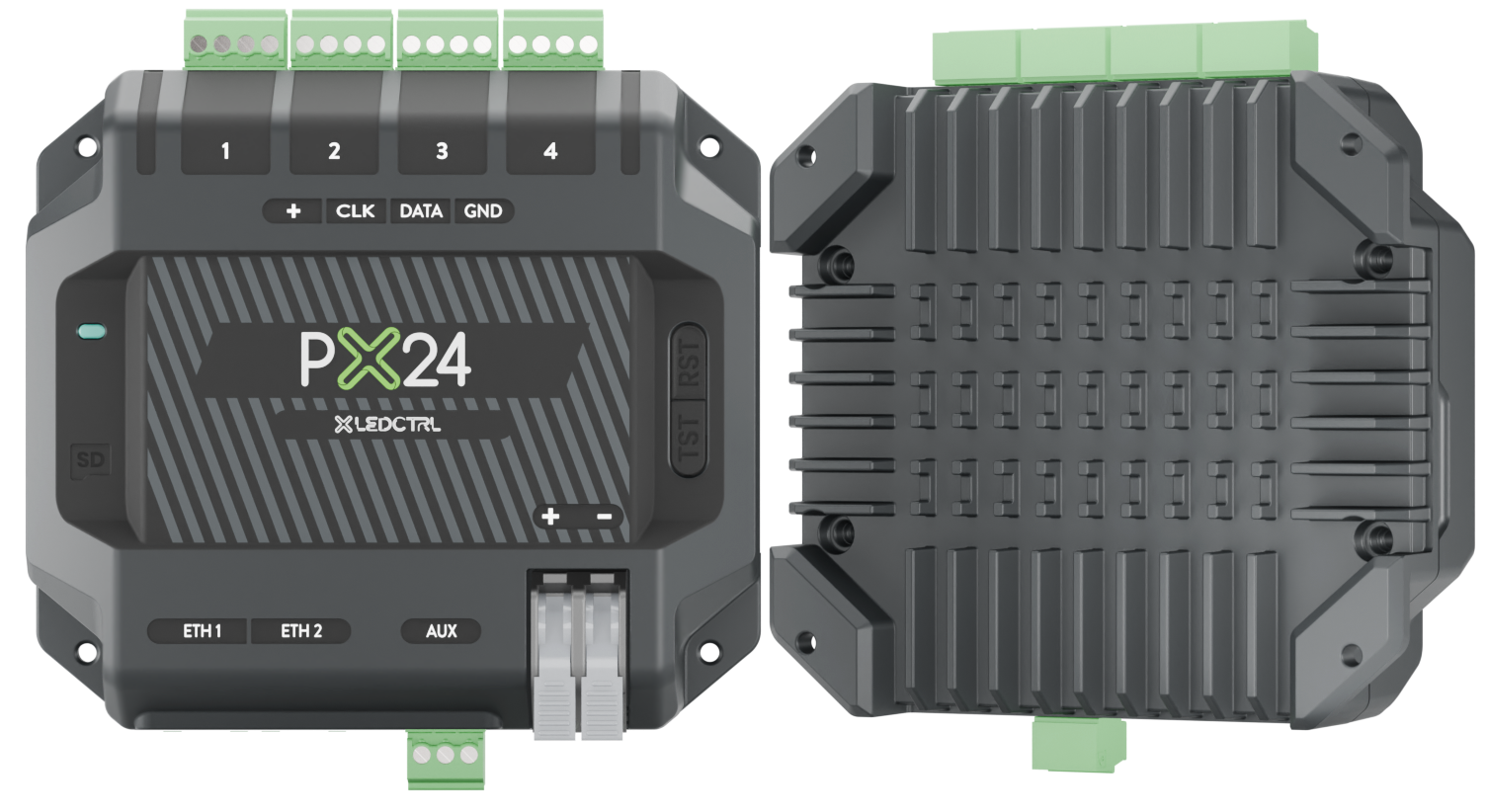

PX24 Pixel Controller

PX24 Pixel Controller

  • DMX
  • X-Stream
  • SPI
  • 24 Universes

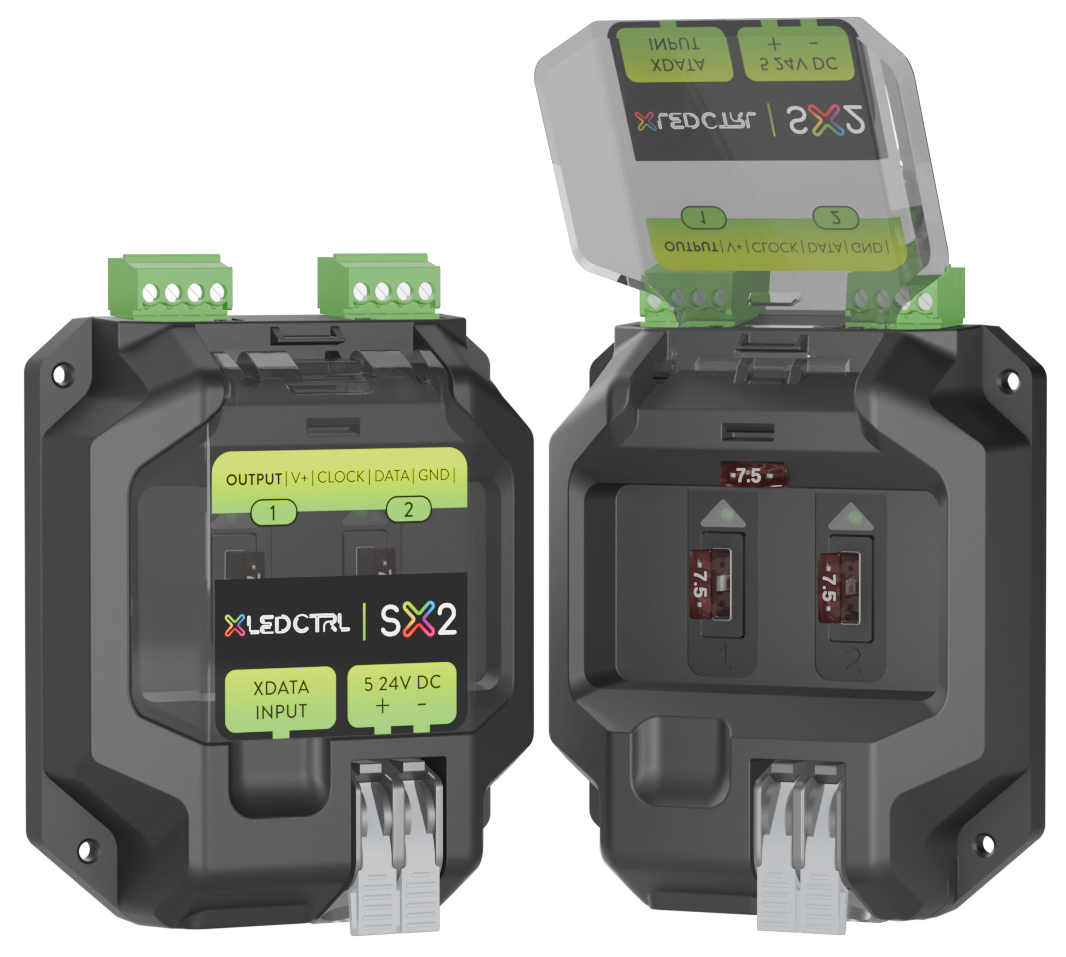

SX2 Long Range Receiver

SX2 Long Range Receiver

  • DMX
  • X-Stream
  • SPI
  • 24 Universes

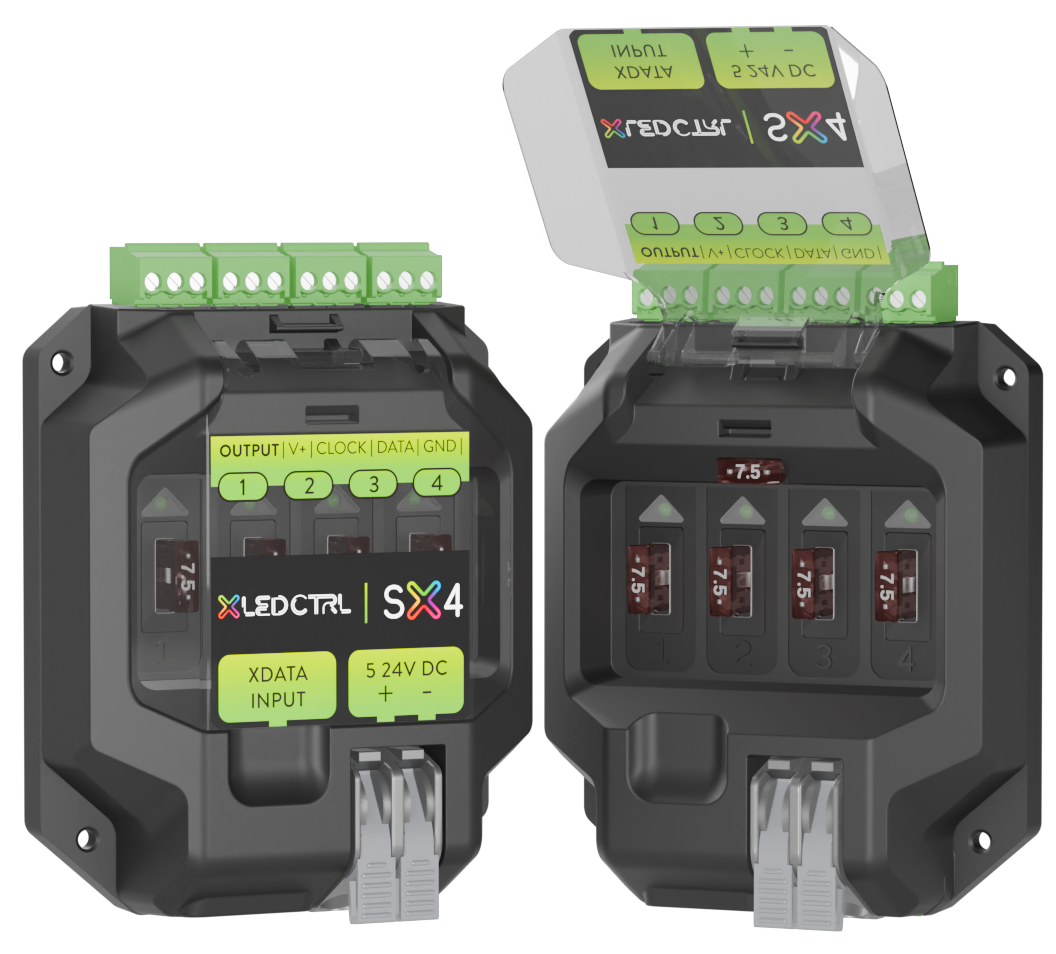

SX4 Long Range Receiver

SX4 Long Range Receiver

  • DMX
  • X-Stream
  • SPI
  • 24 Universes
CX10 Standalone Compute Unit

CX10 Standalone Compute Unit

  • DMX
  • X-Stream
  • SPI
  • 10 Universes
CX24 Standalone Compute Unit

CX24 Standalone Compute Unit

  • DMX
  • X-Stream
  • SPI
  • 24 Universes

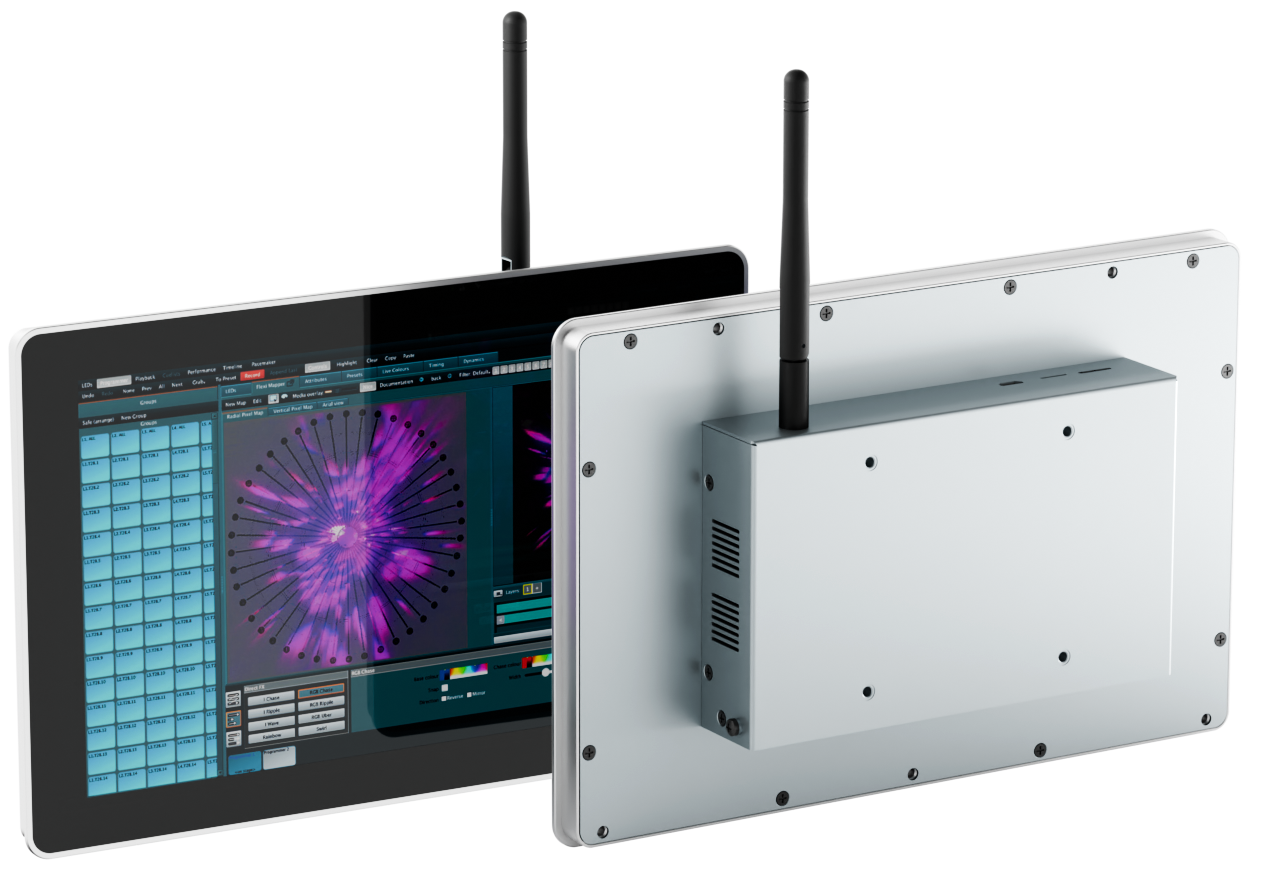

CX64 Standalone Compute Unit

CX64 Standalone Compute Unit

  • DMX
  • X-Stream
  • SPI
  • 64 Universes
DX10 10-Port Ethernet To DMX/RDM Converter

DX10 10-Port Ethernet To DMX/RDM Converter

  • DMX
  • X-Stream
  • SPI
  • 10 Universes

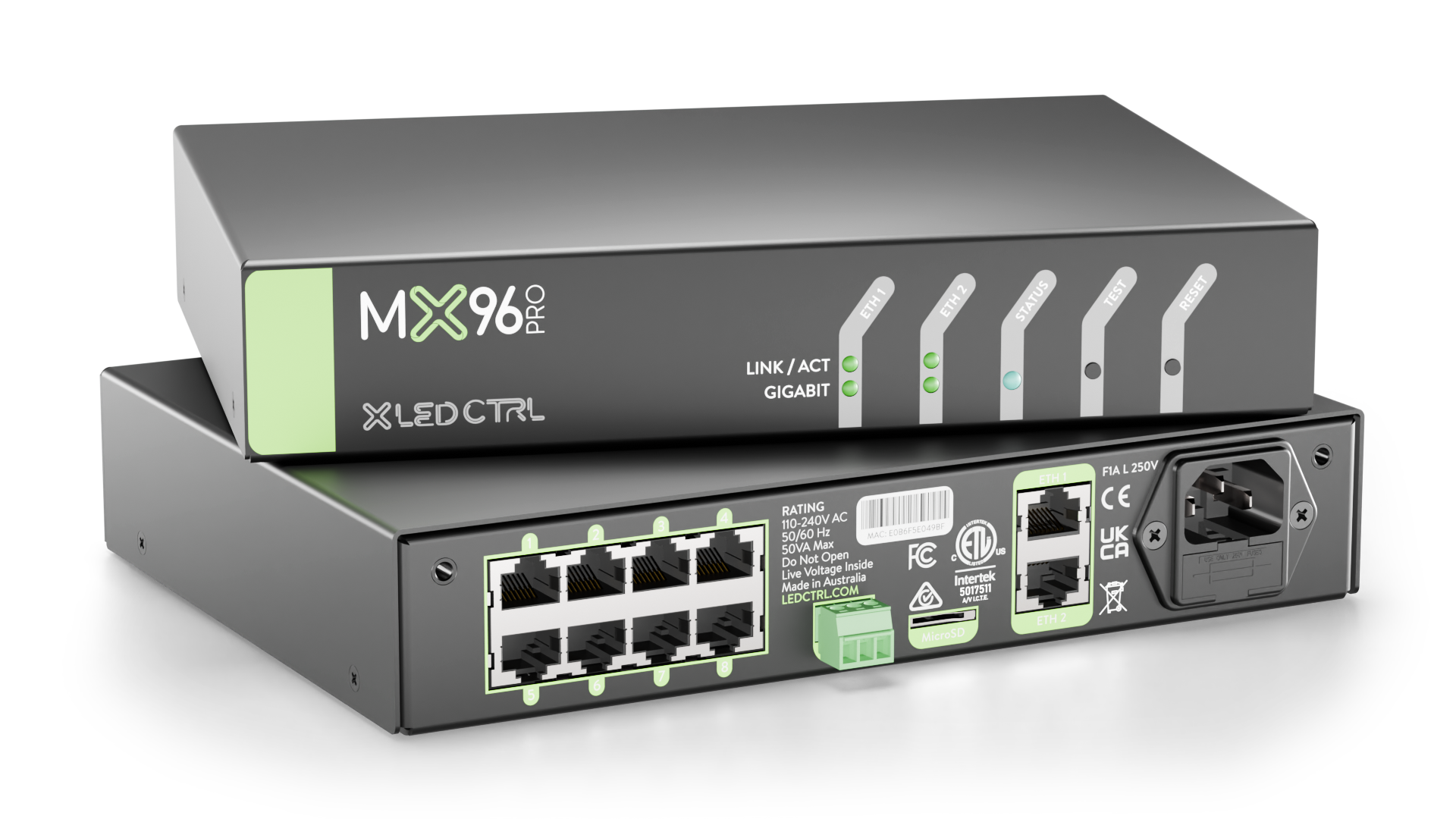

MX96PRO Long Range Transmitter

MX96PRO Long Range Transmitter

  • DMX
  • X-Stream
  • SPI
  • 10 Universes

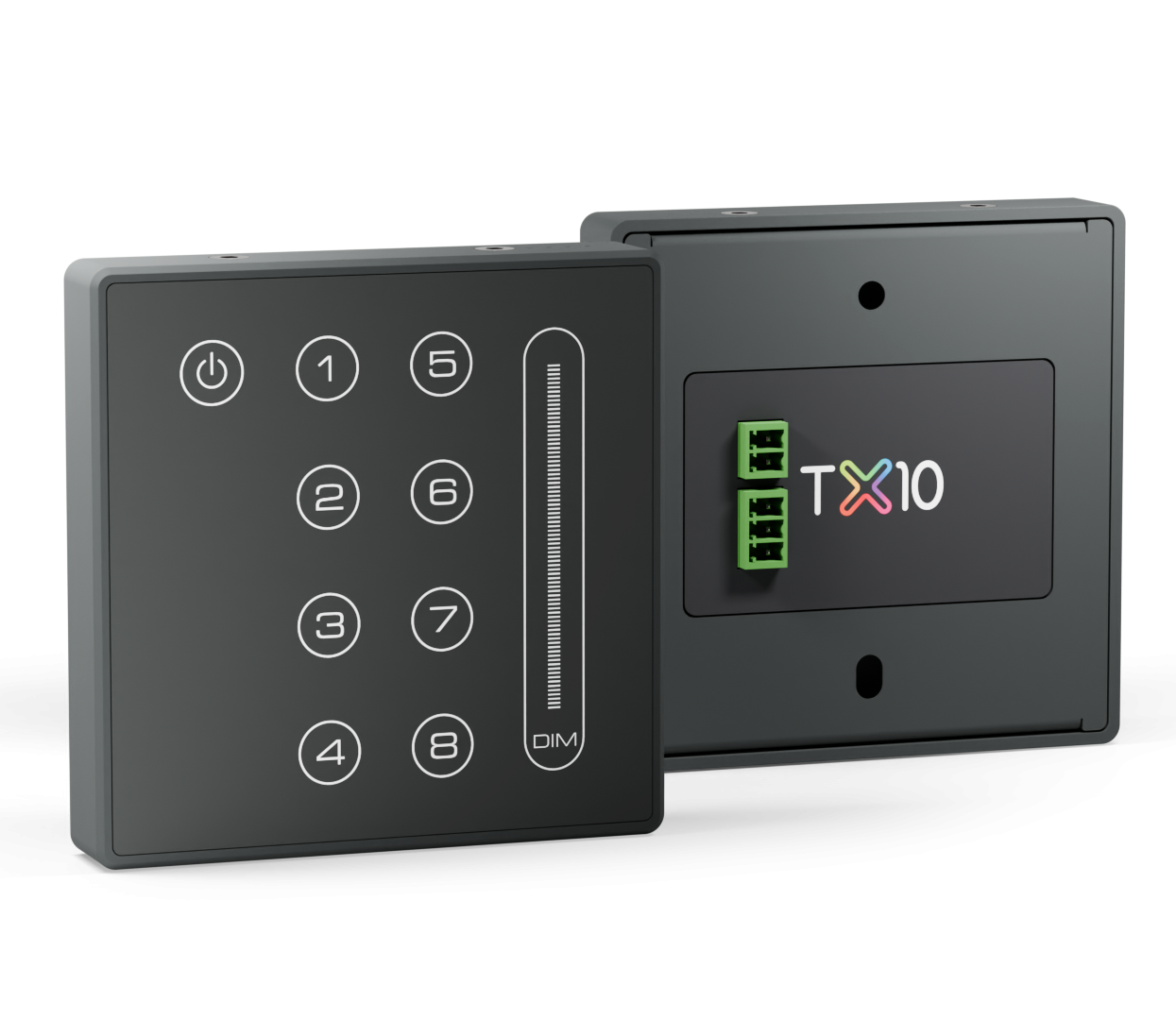

TX10 Touch Trigger

TX10 Touch Trigger

  • DMX
  • X-Stream
  • SPI
PXT/R Boosters

PXT/R Boosters

  • DMX
  • X-Stream
  • SPI

APPLICATIONS

Our PX24 Pixel Controllers excel at driving long runs of linear fixtures with minimal hardware. Here’s how we deployed them on a Meriton building façade in Parramatta, Sydney:

  • Location: Meriton residential tower façade, Parramatta CBD.
  • Controllers Used: 2 × PX24 Pixel Controllers—compact, network-enabled bridges from Art-Net/DMX to SPI pixels.
  • Fixture Run: 385 m of continuous LED linear profile, installed without intermediate power breaks.
  • Protocols: Art-Net over Gigabit Ethernet into PX24, converted to SPI-style pixel output.
  • Installation Highlights:
    • Uniform, glare-free wash over 12 storeys.
    • Dynamic colour sequences programmed for building identity and event themes.
    • Low-voltage, high-efficiency operation with OTA firmware updates.
  • Key Benefits:
    • Minimal hardware footprint: only two controllers handling hundreds of metres.
    • Scalable architecture: easy to expand with additional PX24s or sub-controllers.
    • Centralised, web-based control via LEDCTRL software.
1
2

On the Meriton residential tower in Pagewood, Sydney, we leveraged the PX24 Pixel Controllers to effortlessly drive a long façade run. Here’s a detailed breakdown:

  • Location: Meriton Pagewood façade, Eastern Suburbs of Sydney.
  • Controllers Used: 2 × PX24 Pixel Controllers—networked bridges from Art-Net/DMX to SPI pixels.
  • Fixture Run: 256 m of continuous LED linear profile, installed without intermediate power breaks.
  • Protocols: Art-Net over Gigabit Ethernet into PX24, converted to WS2812-compatible SPI output.
  • Installation Highlights:
    • Even, glare-free wash spanning 6 storeys.
    • Custom programmable scenes for daytime and nighttime moods.
    • Efficient power distribution with PoE options and low-voltage operation.
  • Key Benefits:
    • Minimal hardware footprint: only two controllers managing hundreds of metres.
    • Scalable design: easily add sub-controllers (SX series) for future expansions.
    • Remote firmware updates and live diagnostics via the LEDCTRL software platform.

This deployment showcases how the PX24 simplifies large-scale architectural lighting, delivering reliability and dynamic colour control with minimal hardware overhead.

FAQ

Your top questions on controllers, software and installation—answered.

  • Connect PX24 to your network via Gigabit Ethernet or PoE.
  • Launch LEDCTRL and add the controller by IP scan or manual entry.
  • Assign universes and configure pixel-output mappings.

  • Yes—LEDCTRL groups controllers into “Zones” for unified control.
  • Create custom scenes spanning any combination of PX, SX or CX units.
  • Use the Scheduler to automate multi-controller timelines.

  • Yes—feed DMX into PX24’s DMX-in port.
  • PX24 converts the DMX stream to SPI-pixel data.
  • Supports WS281x, APA102 and other SPI-style LEDs.

  • Open the PX24 web UI at its current IP.
  • Under “Network Settings,” choose DHCP or Static mode.
  • Enter your desired IP, gateway and subnet mask.
  • Save and reboot for changes to take effect.

  • Yes—use the built-in Scheduler to queue scenes by date/time.
  • Recurring events support daily, weekly or custom RRULE patterns.
  • Override mode lets you manually trigger scenes at any time.

  • Use 48 V PoE+ for runs up to 100 m without significant drop.
  • Inject 12–24 V DC every 15–20 m for longer distances.
  • Check fuse-good LEDs on SX receivers for port protection.

  • In LEDCTRL, open the “Colour Calibration” panel.
  • Adjust individual R, G, B (and W) channel levels per fixture.
  • Save calibration profiles and apply globally or per zone.

Downloads

Hardware Accessories

Mounting and add-ons designed to make installs faster, cleaner, and more secure across the LEDCTRL range.

PX24 Pixel Controller Accessories

— Solid mounting for compact control hubs.

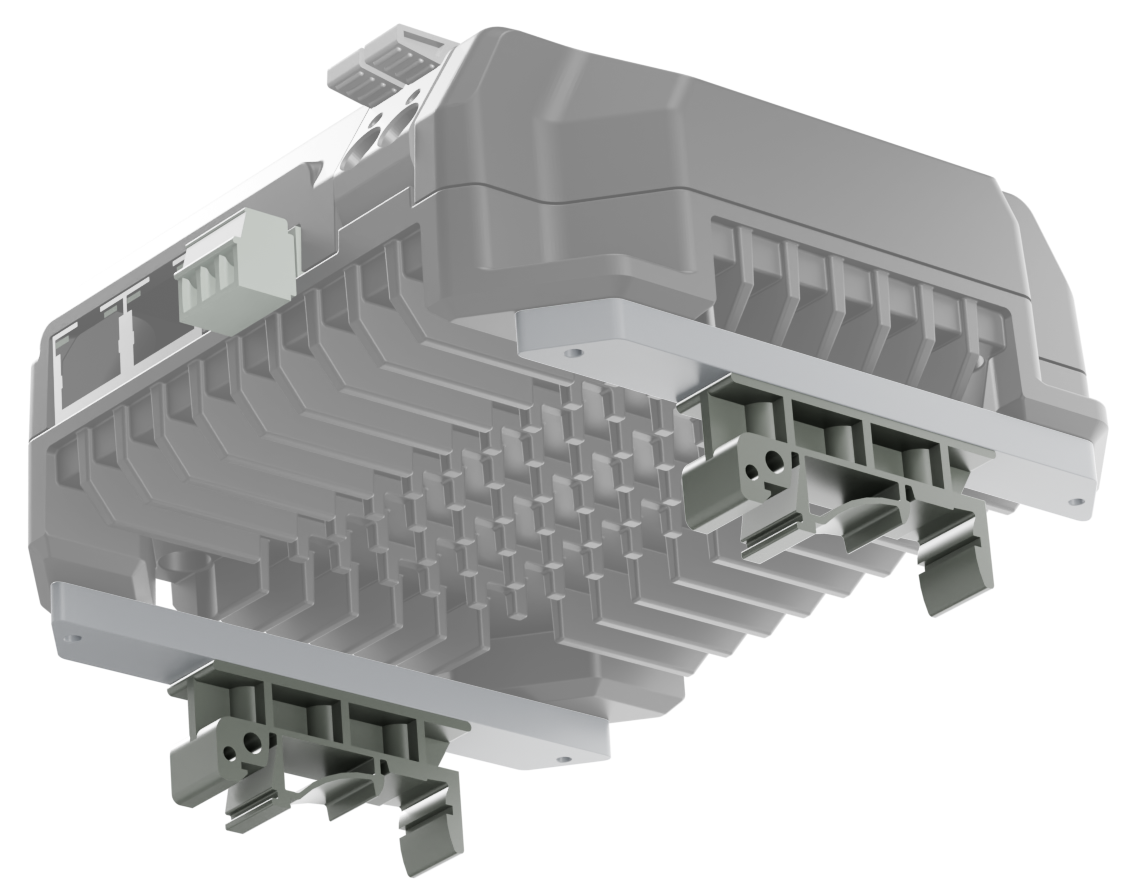

PX24 — DIN Rail Mount Kit

DIN Rail Mount Kit

Snap-in DIN solution for tidy panel builds.

SX2 Long Range Receiver Accessories

— Lightweight, field-friendly fixtures.

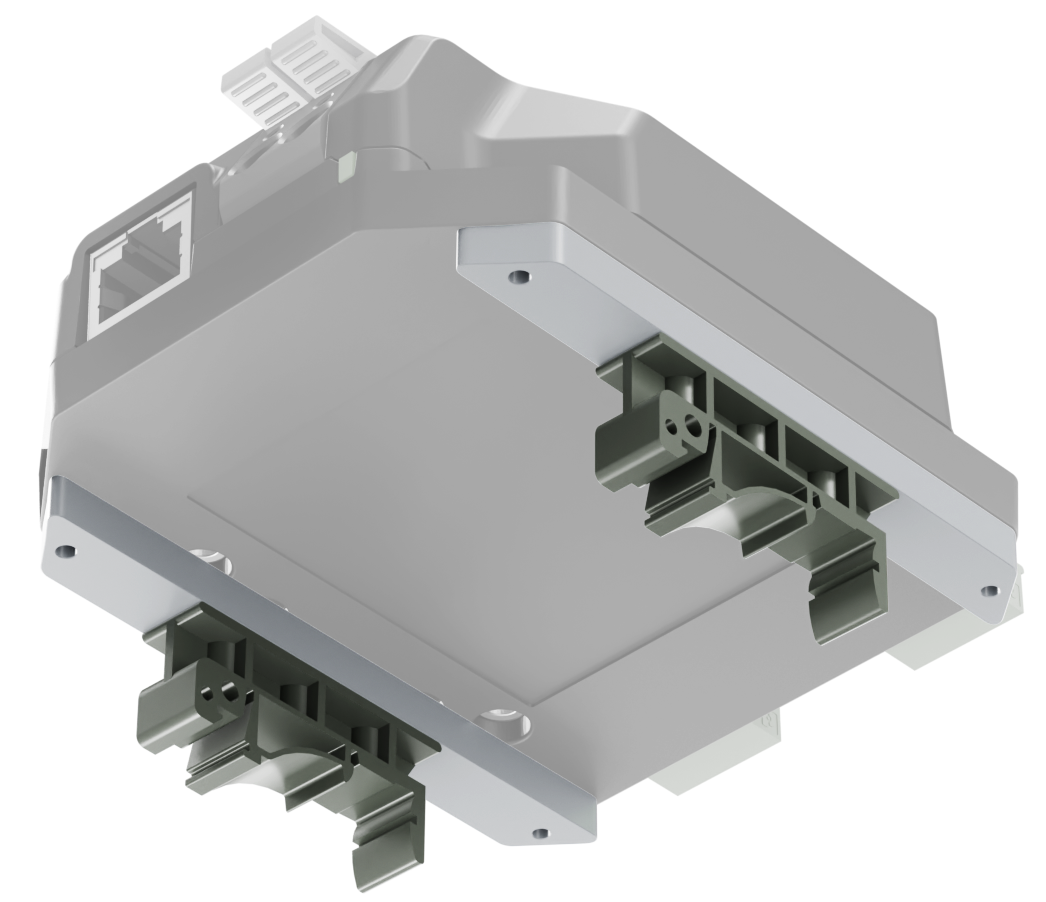

SX2 — DIN Rail Mount Kit

DIN Rail Mount Kit

Clip-on DIN kit for rapid installs.

SX4 Long Range Receiver Accessories

— Scaled-up mounting for multi-port receivers.

SX4 — DIN Rail Mount Kit

DIN Rail Mount Kit

DIN-rail clip for modular racks and enclosures.

DX10 10-Port Ethernet → DMX/RDM Converter Accessories

— Flexible mounting for rack, wall, and DIN layouts.

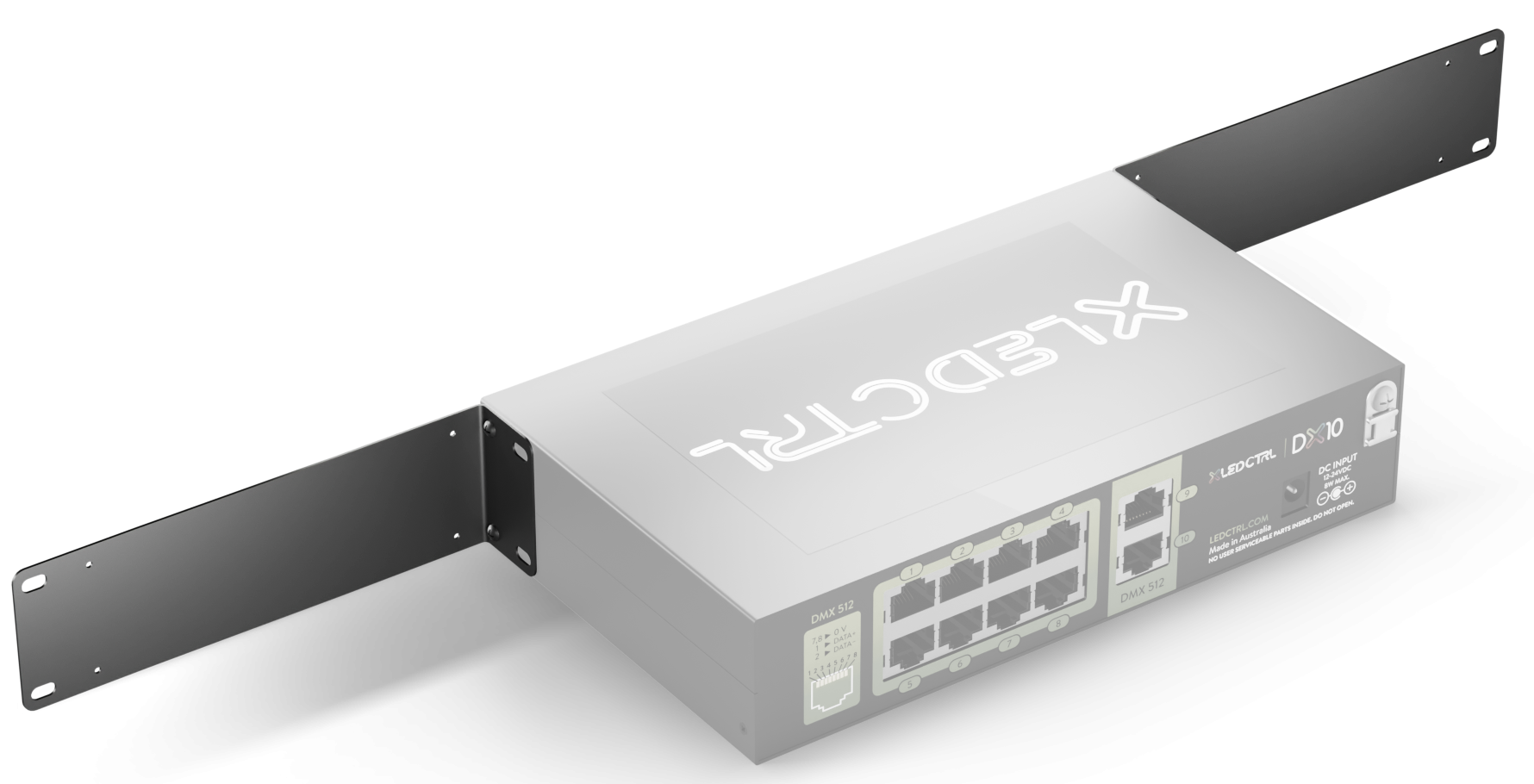

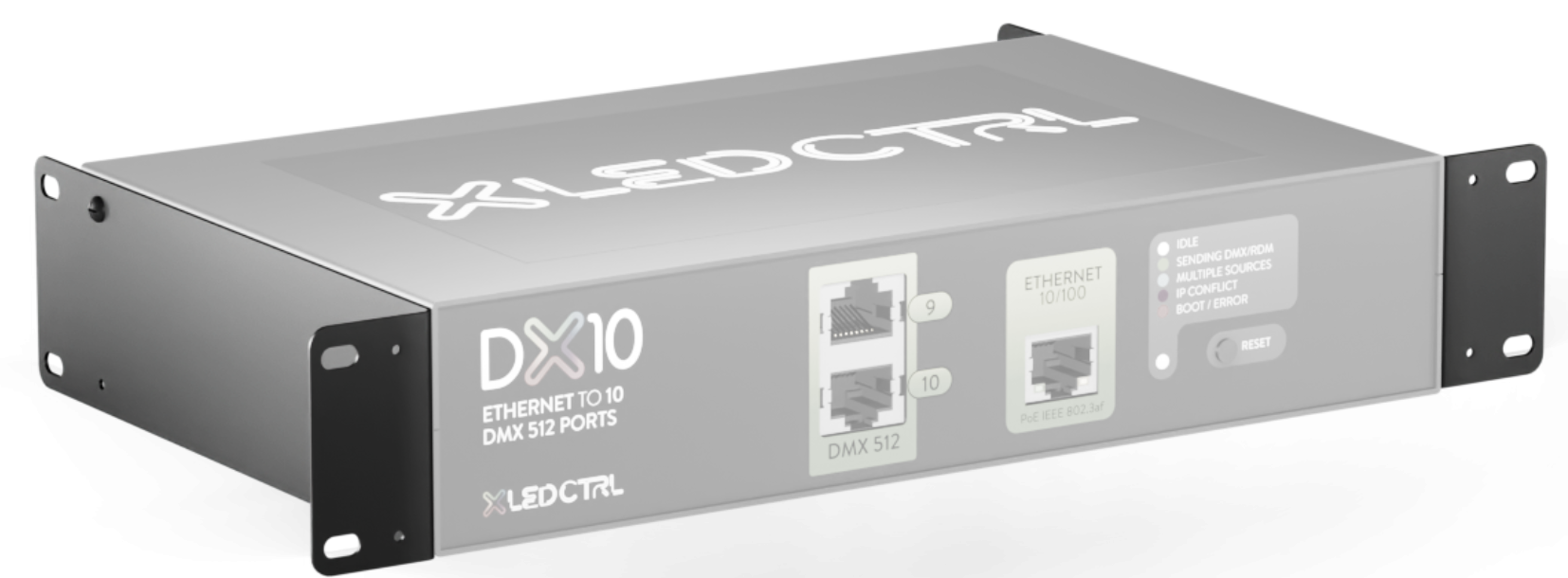

DX10 — Half Width Mounting Rack

Half Width Mounting Rack

Space-efficient half-rack presentation.

DX10 — Full Width Mounting Rack

Full Width Mounting Rack

Standard full-rack mounting hardware.

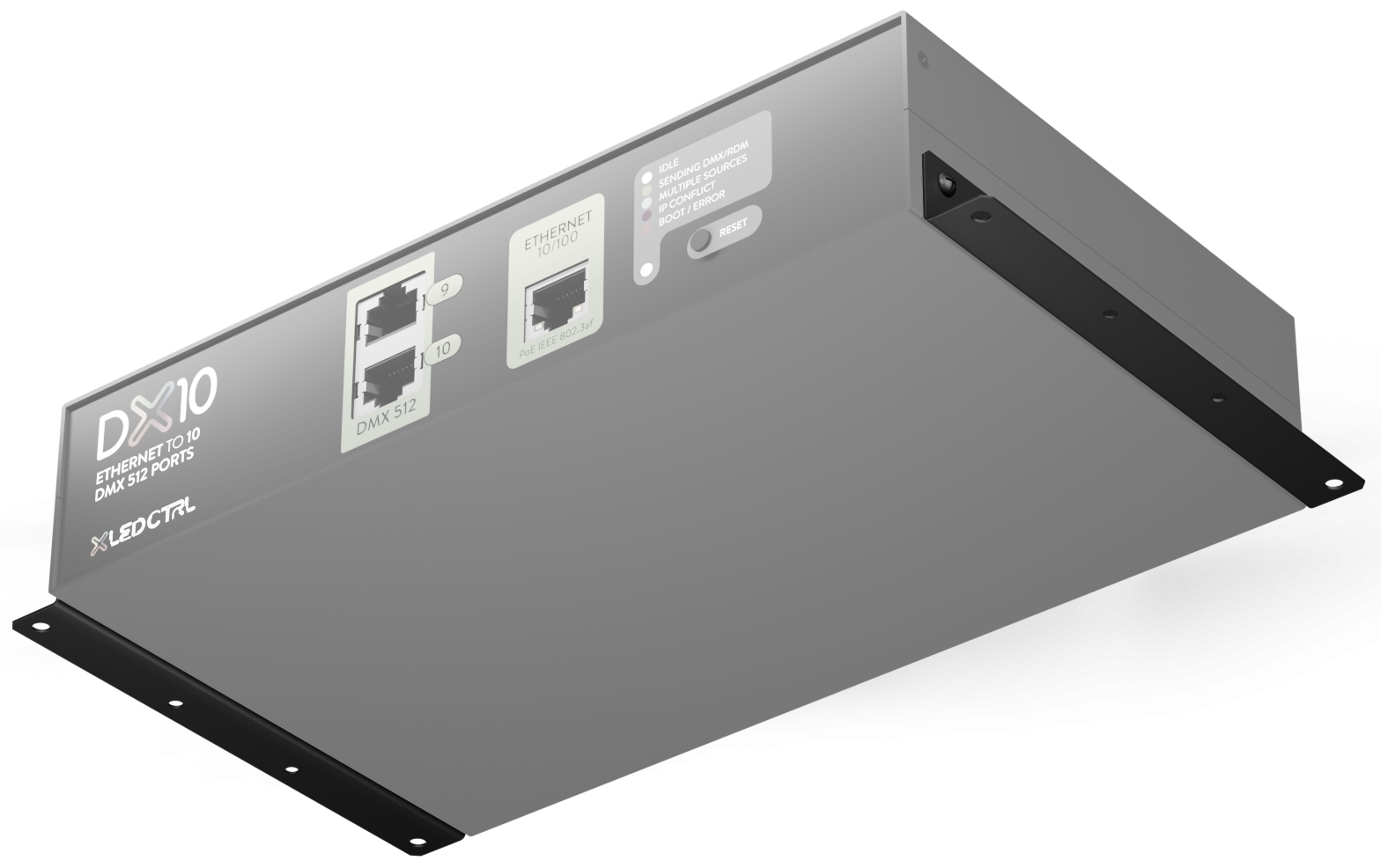

DX10 — Surface Mounting

Surface Mounting

Direct wall/surface mounting bracket.

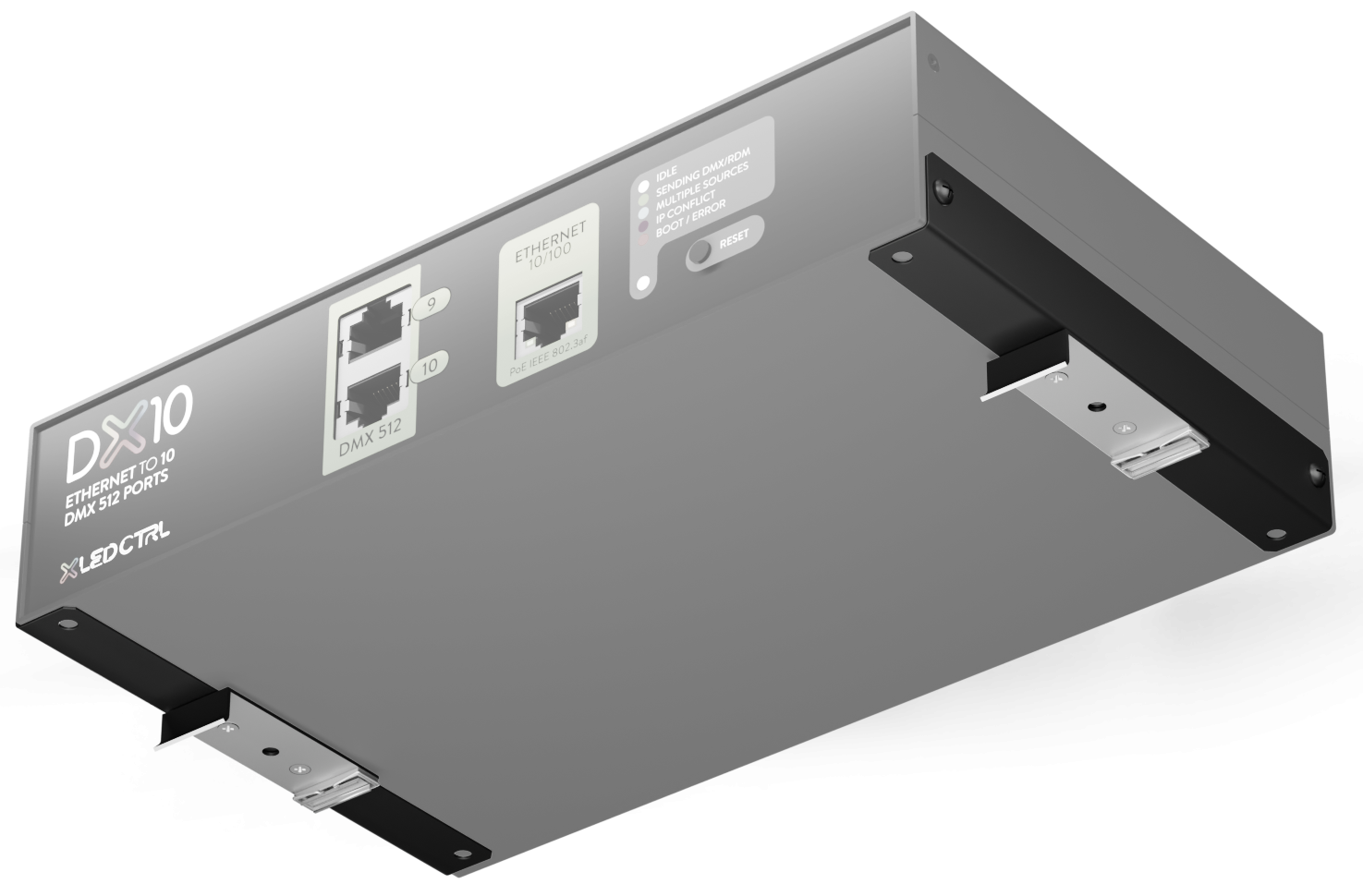

DX10 — DIN Rail Mounting

DIN Rail Mounting

DIN clip for control panels and cabinets.

MX96PRO Long Range Transmitter Accessories

— Rugged mounting kits for live and fixed installs.

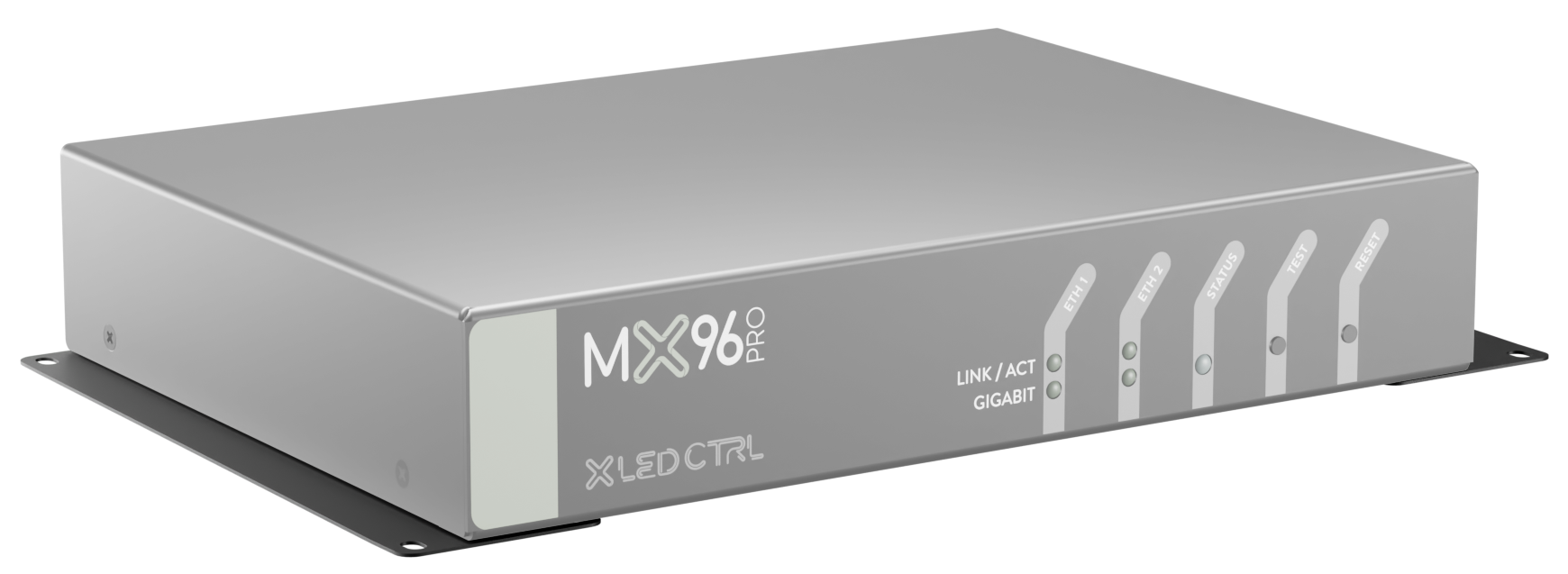

MX96PRO — Flat Surface Front Mount Kit

Flat Surface Front Mount Kit

Clean front-mount on flat surfaces.

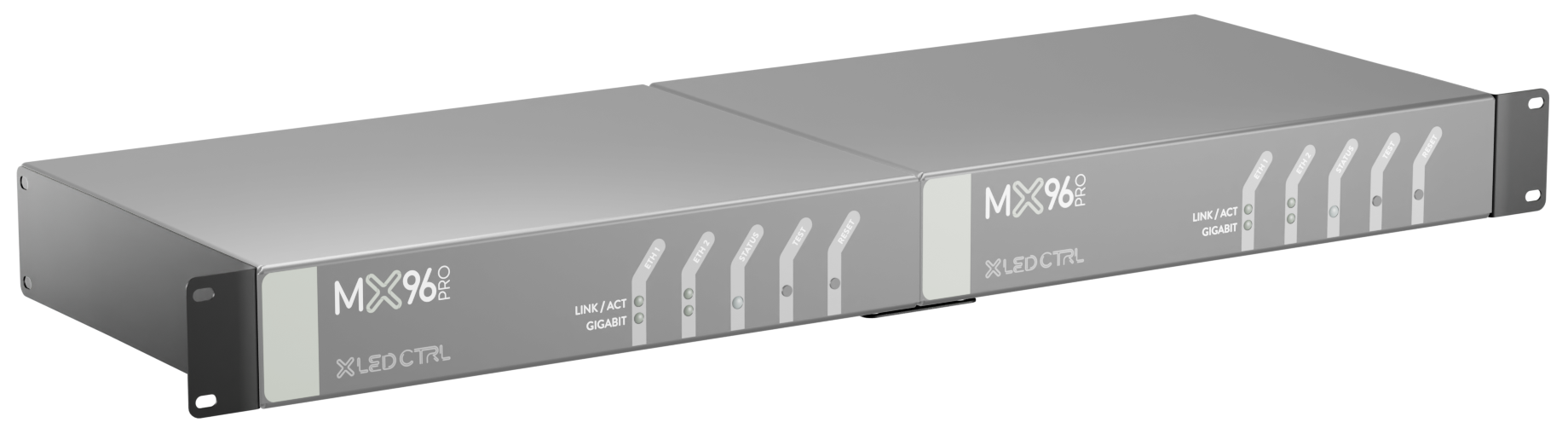

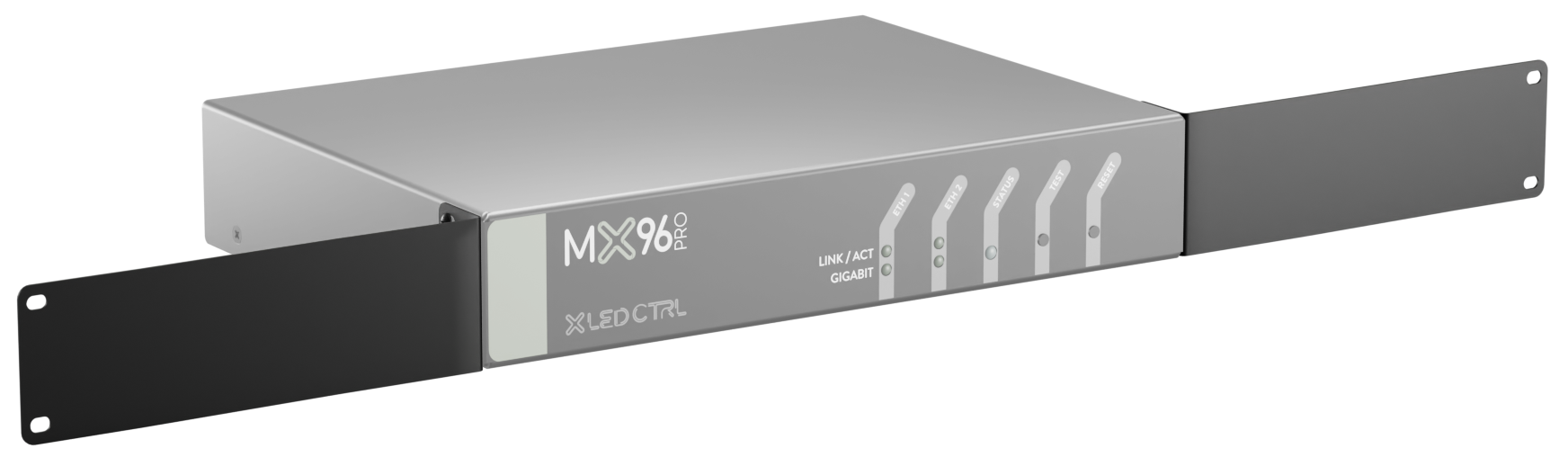

MX96PRO — 19" Data Rack Mount Kit

19" Data Rack Mount Kit

Standard 19″ rack ears for data racks.

MX96PRO — 19" Data Rack Mount Kit (Alt)

19" Data Rack Mount Kit (Alt)

Alternate ear set for varied rack layouts.
