Tuneable White Flexible Panel
P
DW

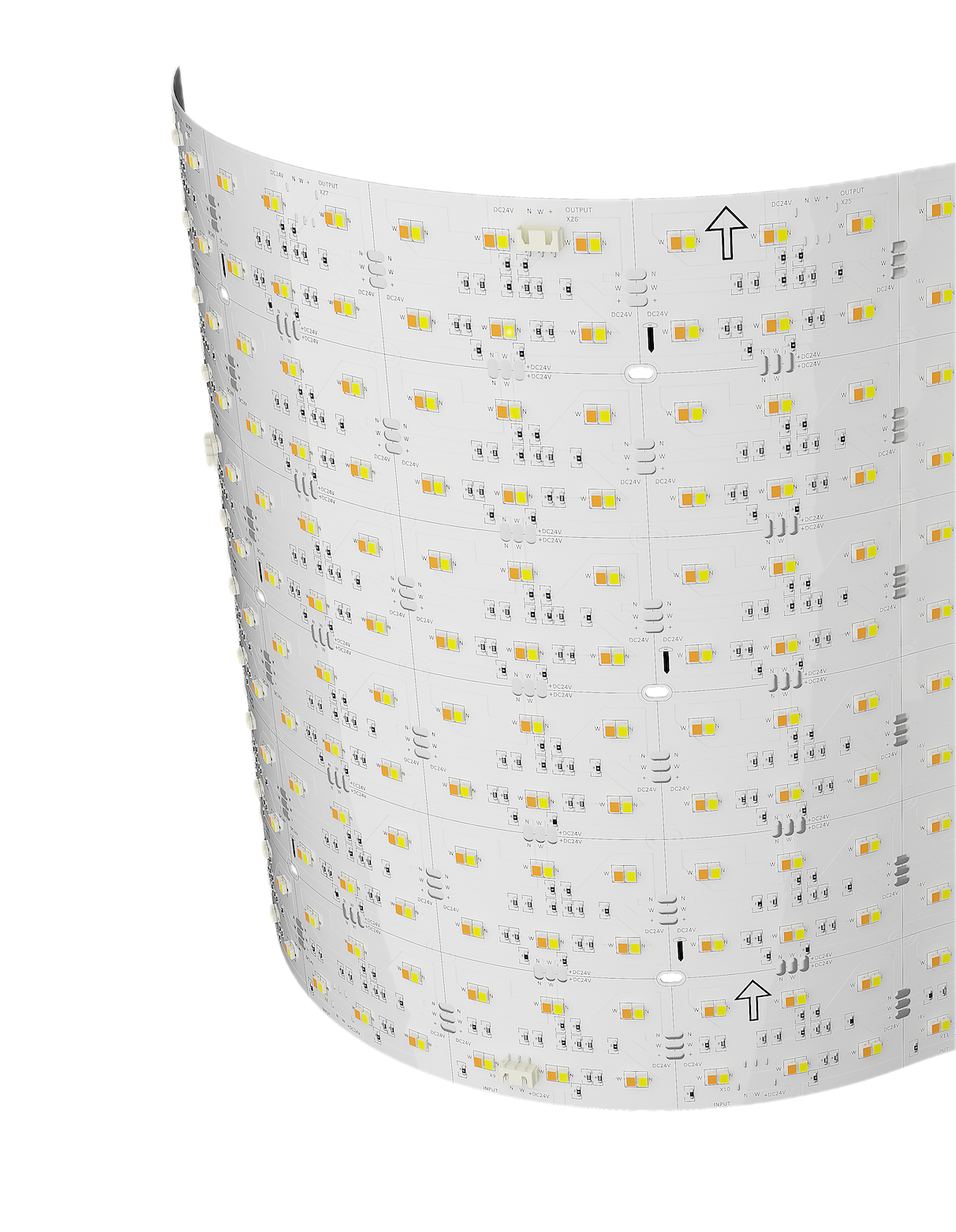

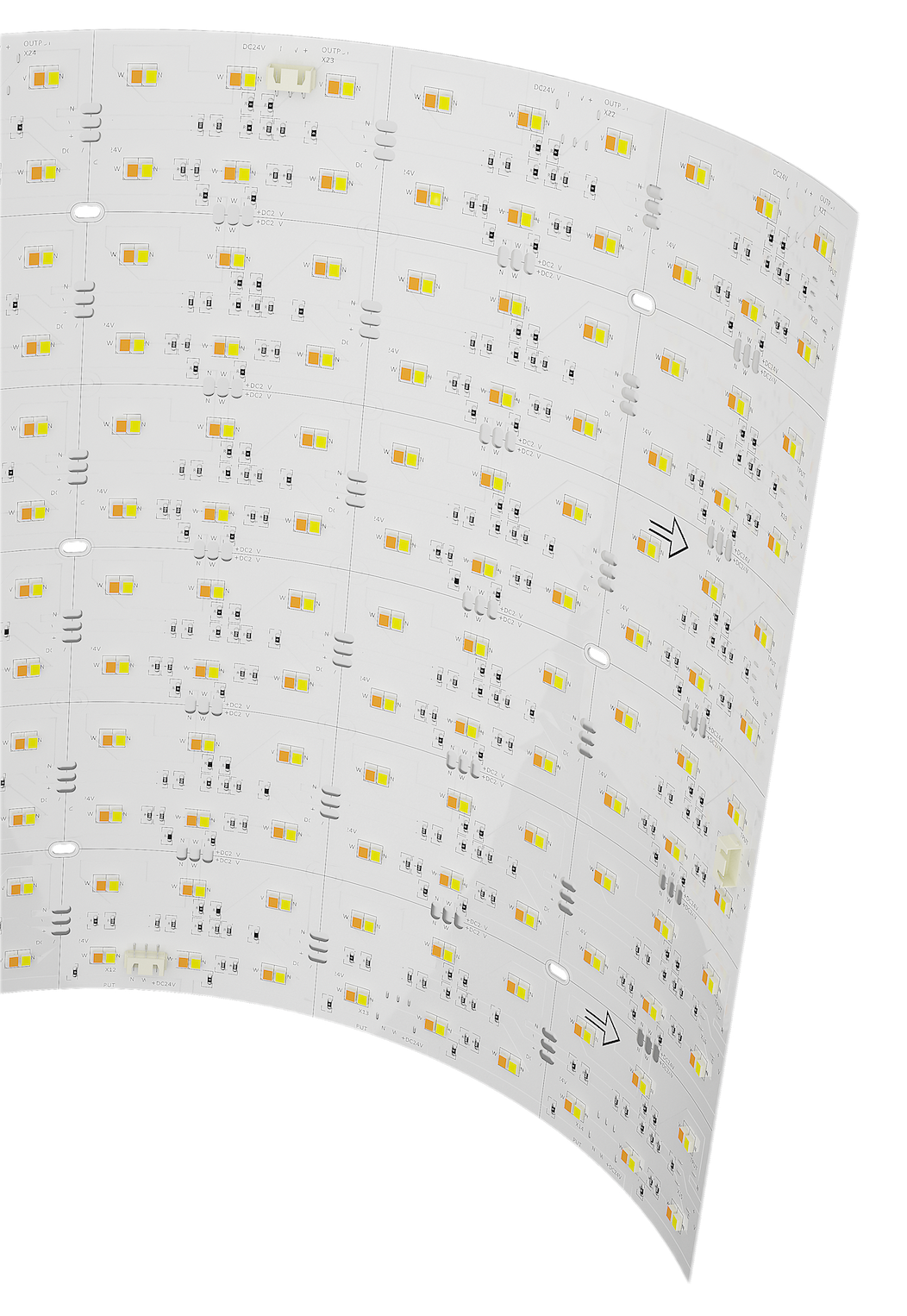

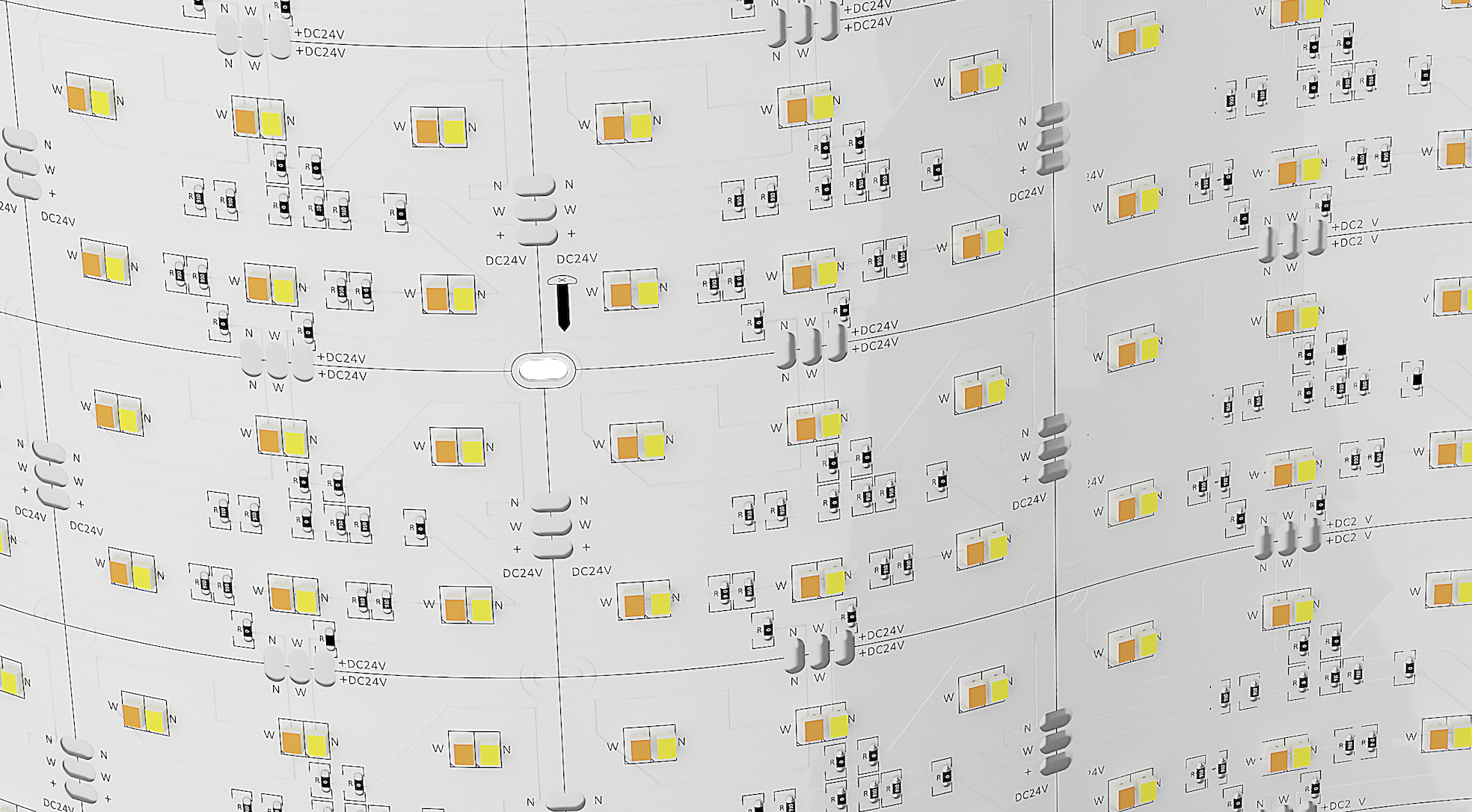

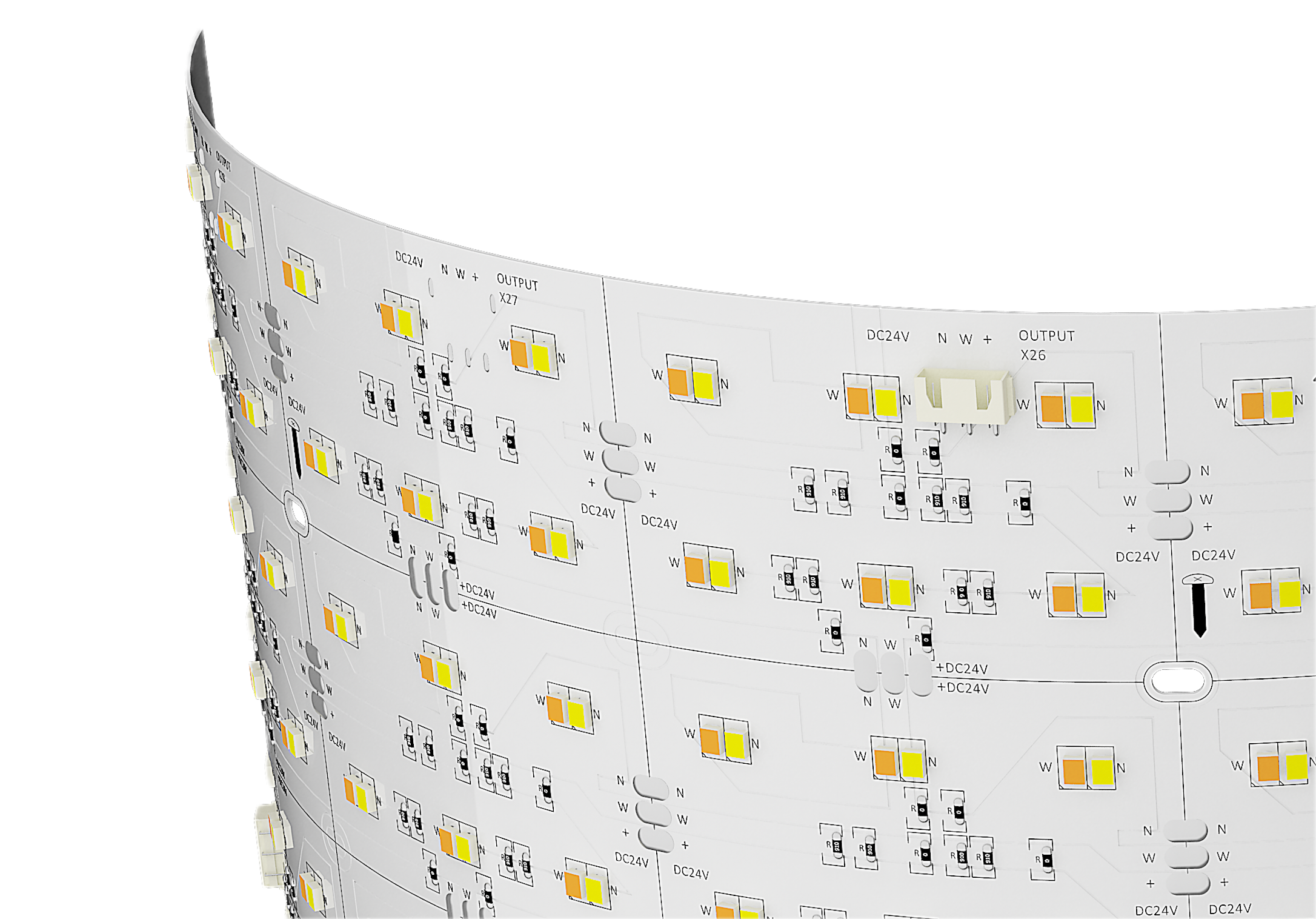

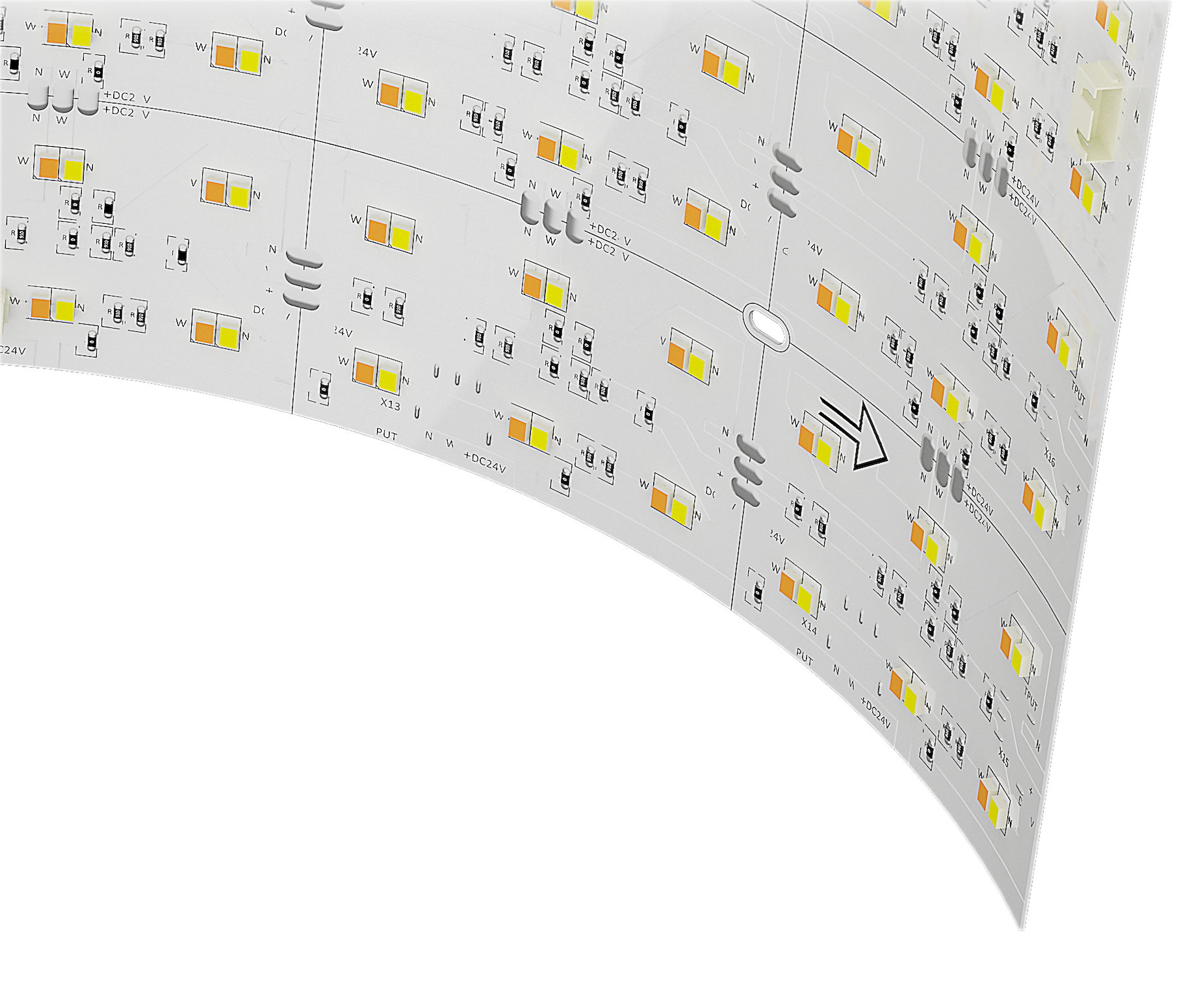

The FXP Tuneable White Flexible Panel is a high-performance LED solution for precise white control in signage backlighting and architectural applications. A tuneable 1800K–12000K range delivers high CRI, smooth dimming, and consistent balance. Flexible by design and rated IP64 / IP22 for versatile use in protected indoor installs.
| Electrical | |
|---|---|
| Power Consumption | 26 W (480 mm) / 46 W (610 mm) |
| Operating Voltage | 24 V DC |
| Operating Temperature | −20°C to +60°C (−4°F to +140°F) |
| Storage Temperature | −20°C to +70°C (−4°F to +158°F) |
| Physical | |
| Panel Dimensions | 480 mm (L) × 240 mm (H) / 610 mm (L) × 305 mm (H) |
| Unit Dimensions | 53.5 mm (L) × 80 mm (H) / 76.2 mm (L) × 50.8 mm (H) |
| Weight | 105 g |
| CRI | 80+ to 95+ |
| Cuttable Units | 480 mm – Every 80 mm / 610 mm – Every 76.2 mm |
| Finish | Flexible PCB with Protective Coating |
| Mounting Options | Screw-mounted, Adhesive-backed, or Framed |
| Connection | 3-Pin Terminal Connection |
| Optical | |
| Beam Angle | 120° |
| Colour Range |
1800K – 12000K
|
| Luminous Flux | 1296–2980 lm @324 LEDs / 2304–5298 lm @576 LEDs |
| Control | |
| Control Protocols |
DALI
DMX
PWM
0-10V
|
| Ratings | |
| Ingress Rating |
IP64
IP22
|
| Warranty | 3 Years (Extendable Warranty Available) |
Note: Specification summary for quick evaluation and layout planning. Panel size, LED count, control protocol, and mounting are configurable to suit your flexible panel installation.
FXP Tuneable White Flexible Panel Downloads
Interactive Configurator
Pick panel length, LED count, CCT, control protocol, power, and mounting. Get a build-ready FXP DW configuration for your install.
