White Flexible Panel

F P W

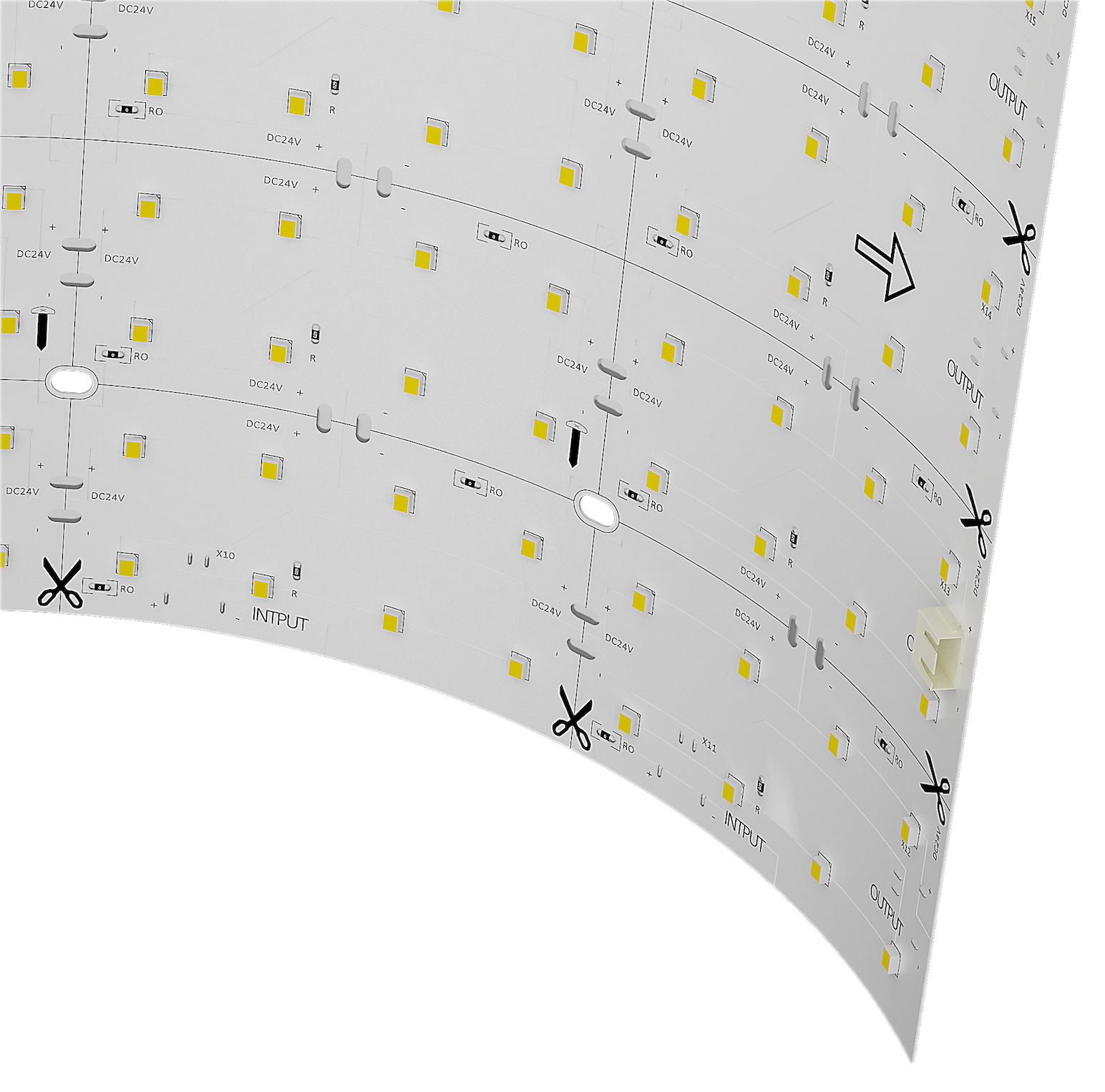

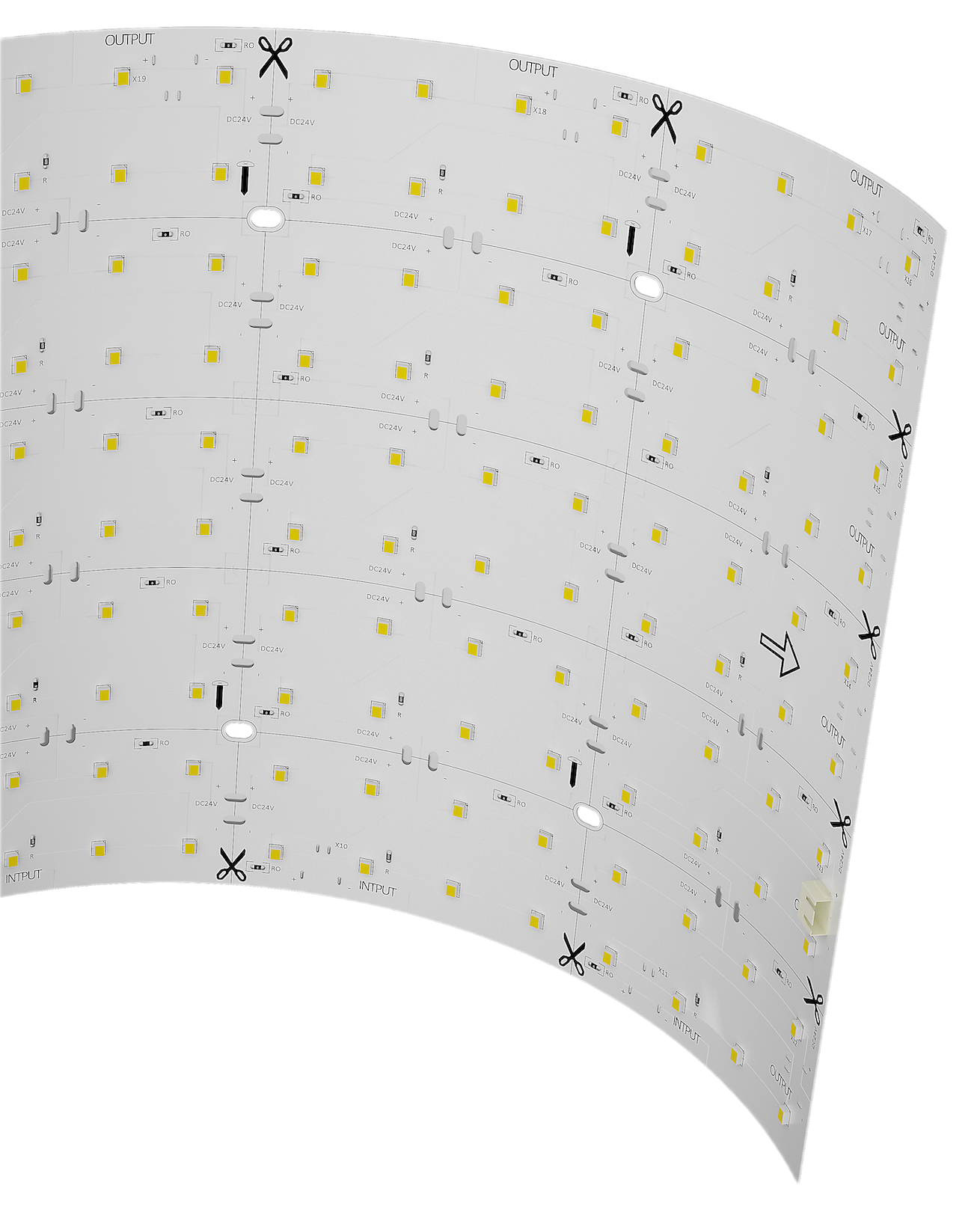

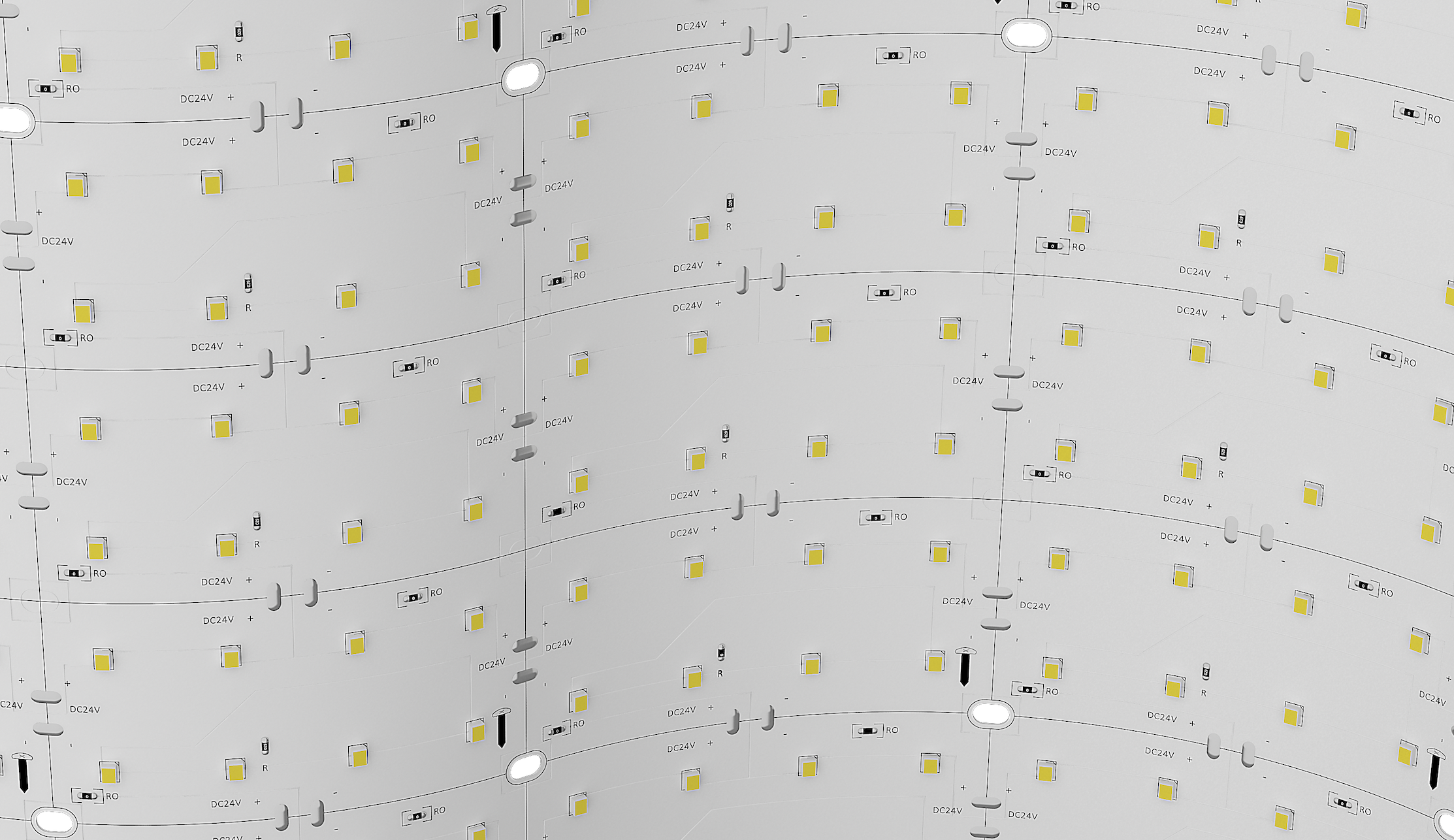

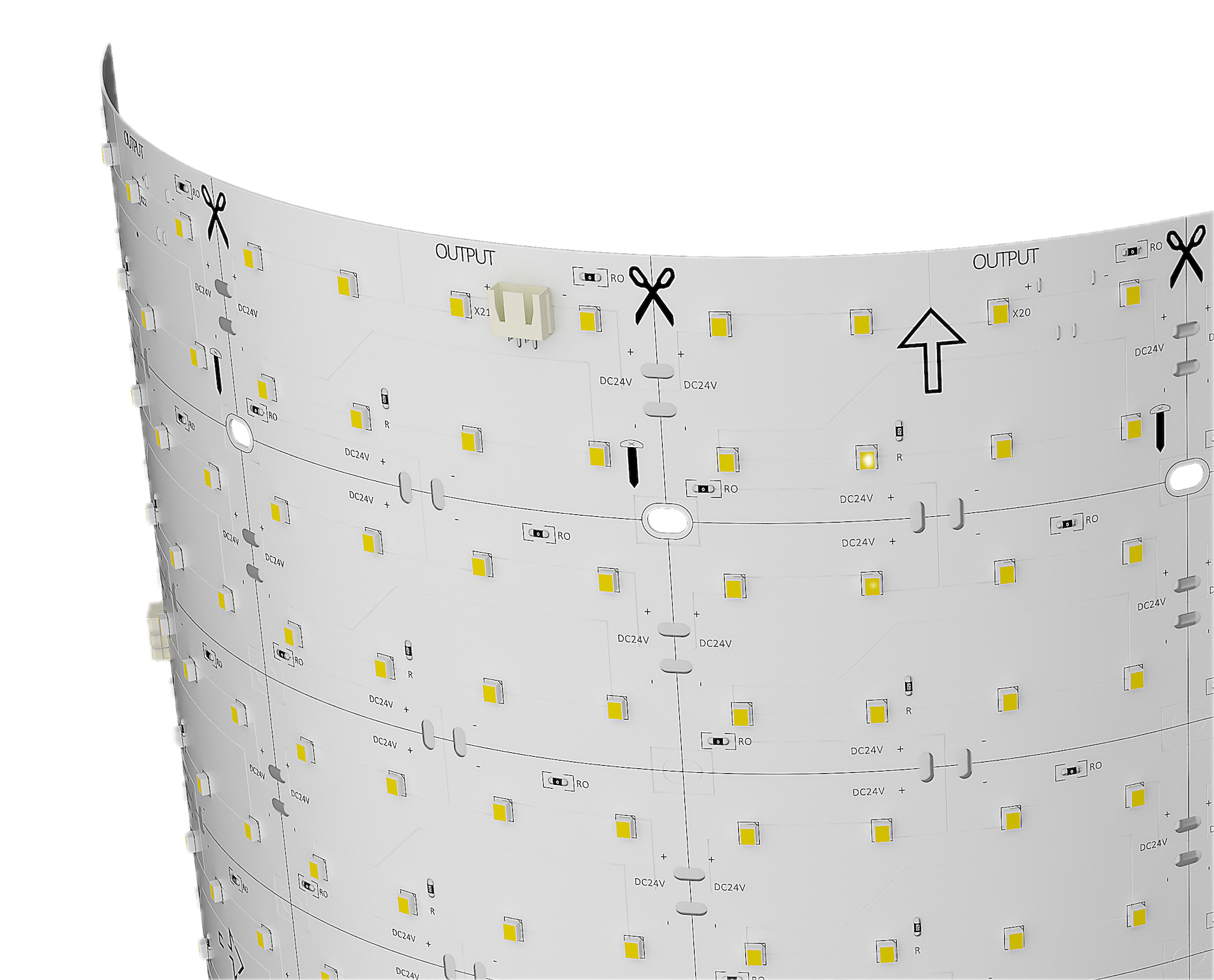

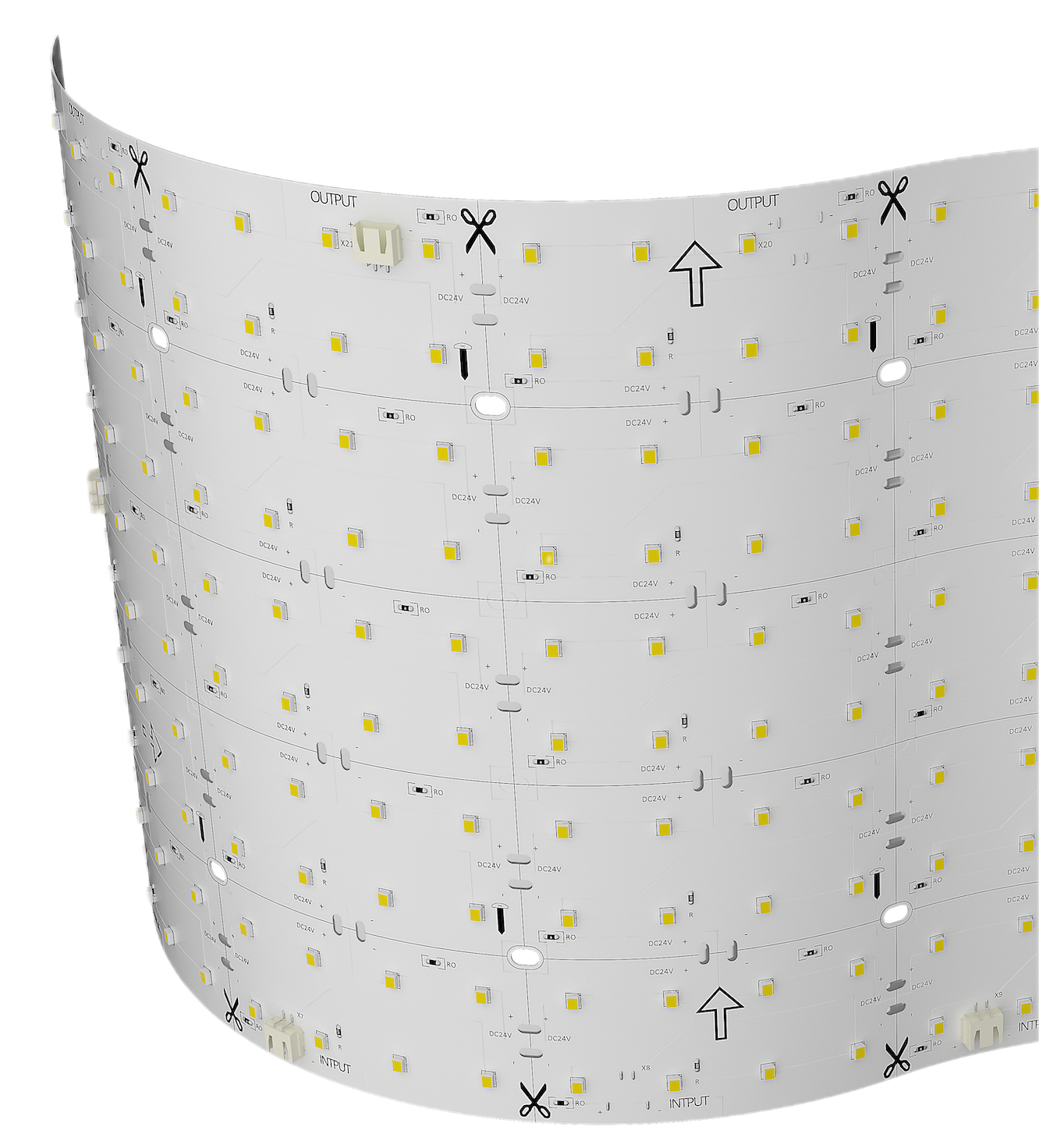

The FXP White (PWM) Flexible Panel delivers clean, uniform white light for signage, backlighting, and architectural applications. Smooth PWM dimming gives consistent brightness and energy-efficient performance. Flexible and low-profile, it installs on flat or curved surfaces — rated IP64 and IP22.

Colour W (2000K – 7200K)
Beam 120°
Build IP64 · IP22
Control DALI · DMX · PWM · 0-10V

Configure Your Product View Specifications

1 / 6

Specifications Downloads Configurator

Key Specifications · FXP White Flexible Panel

Electrical
Power Consumption	18 W (480 mm) / 25.92 W (610 mm)
Operating Voltage	24 V DC
Operating Temperature	−20°C to +60°C (−4°F to +140°F)
Storage Temperature	−20°C to +70°C (−4°F to +158°F)
Physical
Panel Dimensions	480 mm (L) × 240 mm (H) / 609.6 mm (L) × 304.8 mm (H)
Unit Dimensions	96 mm (L) × 48 mm (H) / 101.9 mm (L) × 50.8 mm (H)
Weight	104 g
CRI	80+ to 95+
Cuttable Units	Every LED Section for Tailored Installations
Finish	Flexible PCB with Protective Coating
Mounting Options	Screw-mounted, Adhesive-backed, or Framed
Connection	2-Pin Signal Input and Output
Optical
Beam Angle	120°
Colour Range	2000K – 7200K
White CCT	2300K 2600K 2800K 3200K 3700K 4300K 5300K 6600K 7200K
Luminous Flux	2016 lm @White-200 / 2903 lm @White-288
Control
Control Protocols	DALI DMX PWM 0-10V
Ratings
Ingress Rating	IP64 IP22
Warranty	3 Years (Extendable Warranty Available)

Note: Specification summary for quick evaluation and layout planning. Panel size, LED count, control protocol, and mounting are configurable to suit your flexible panel installation.
