RGBW Flexible Panel
P
RGBW

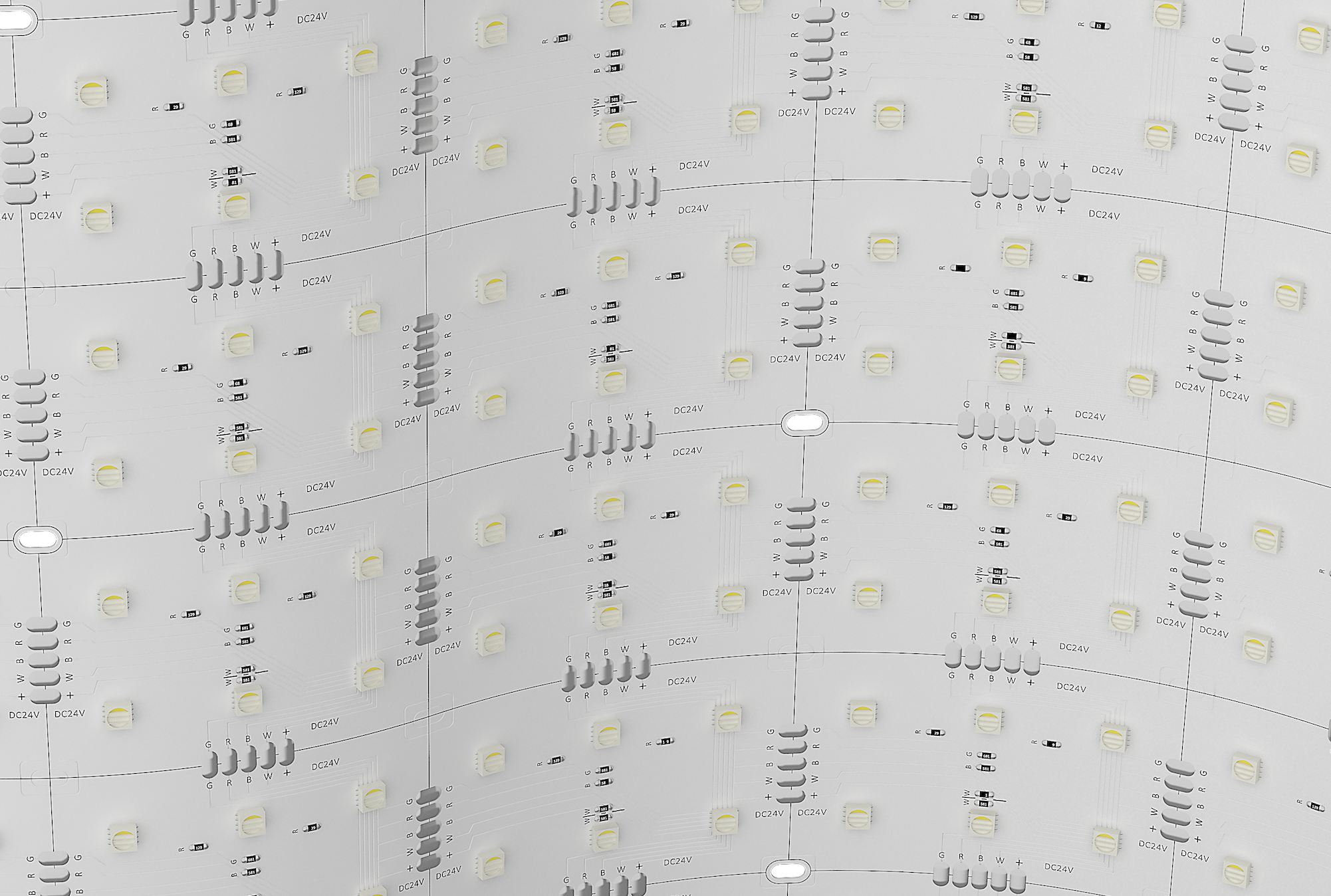

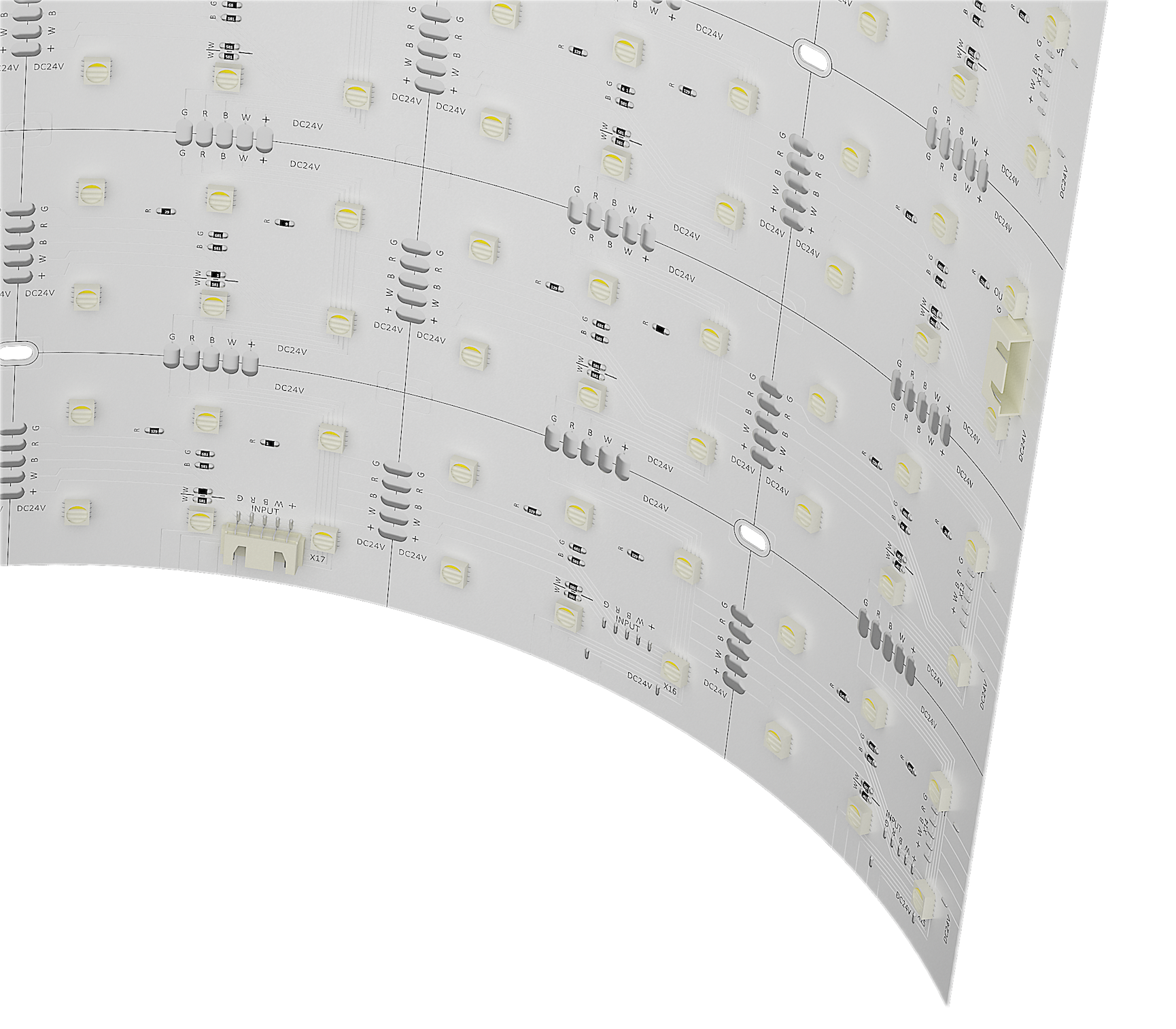

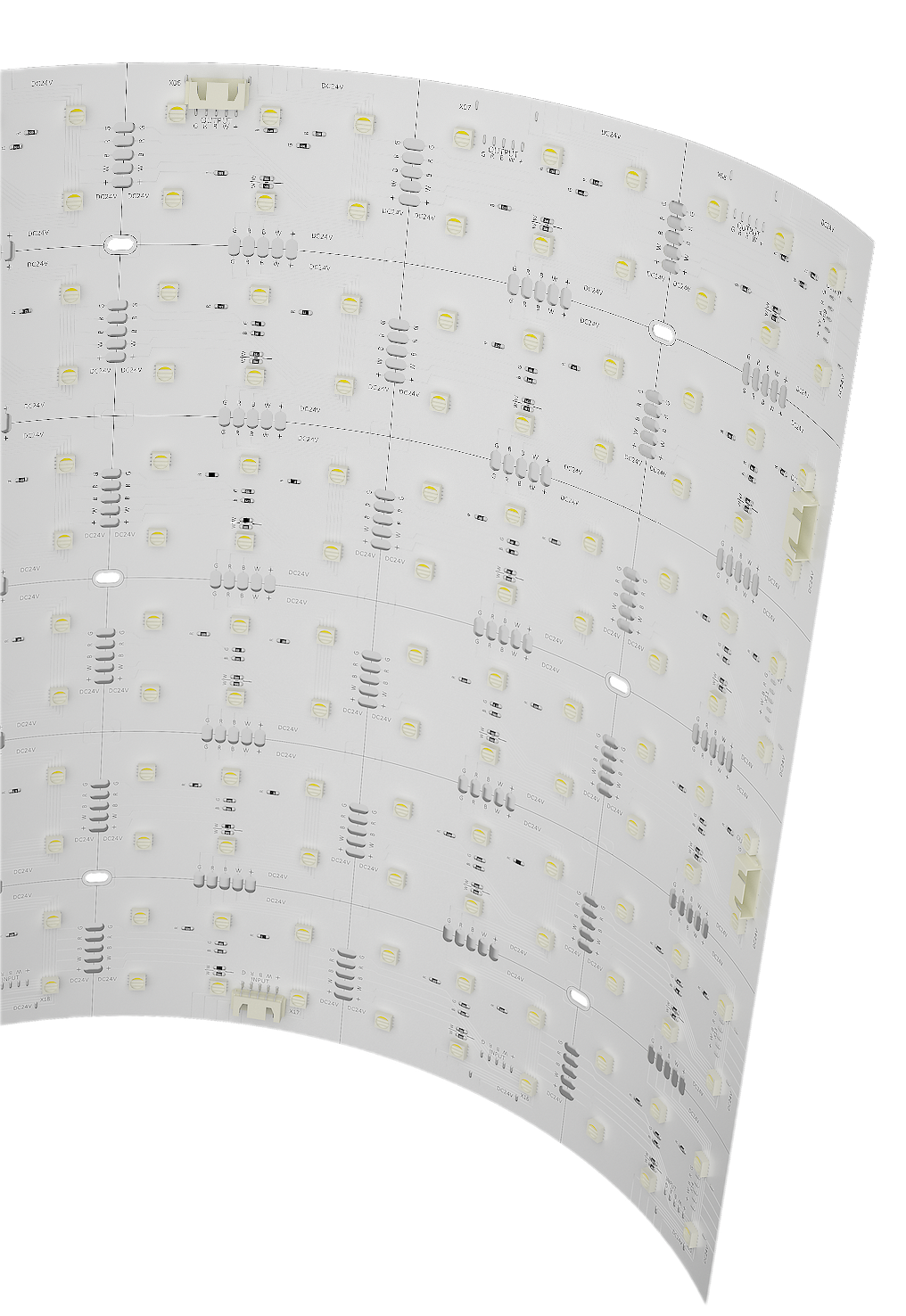

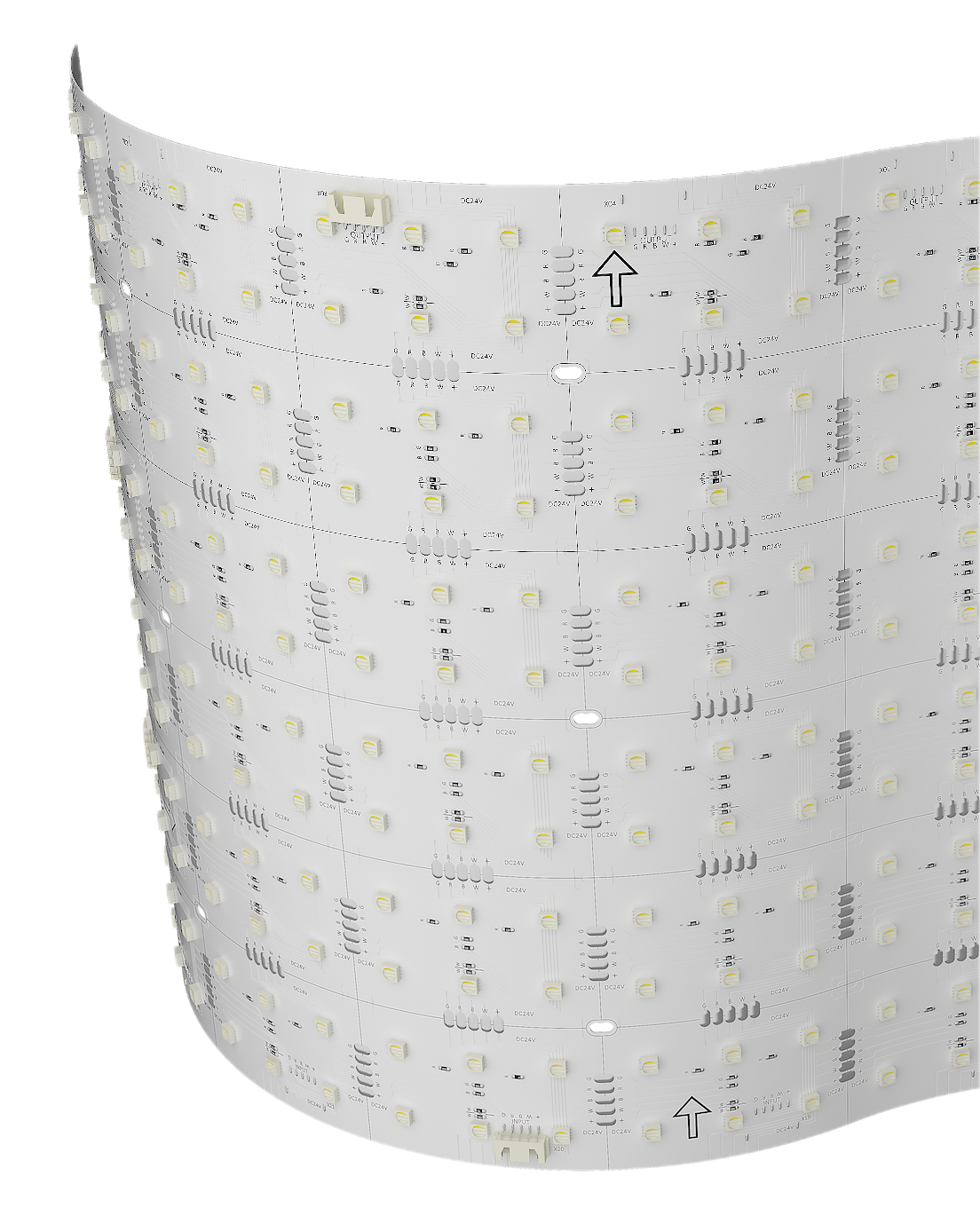

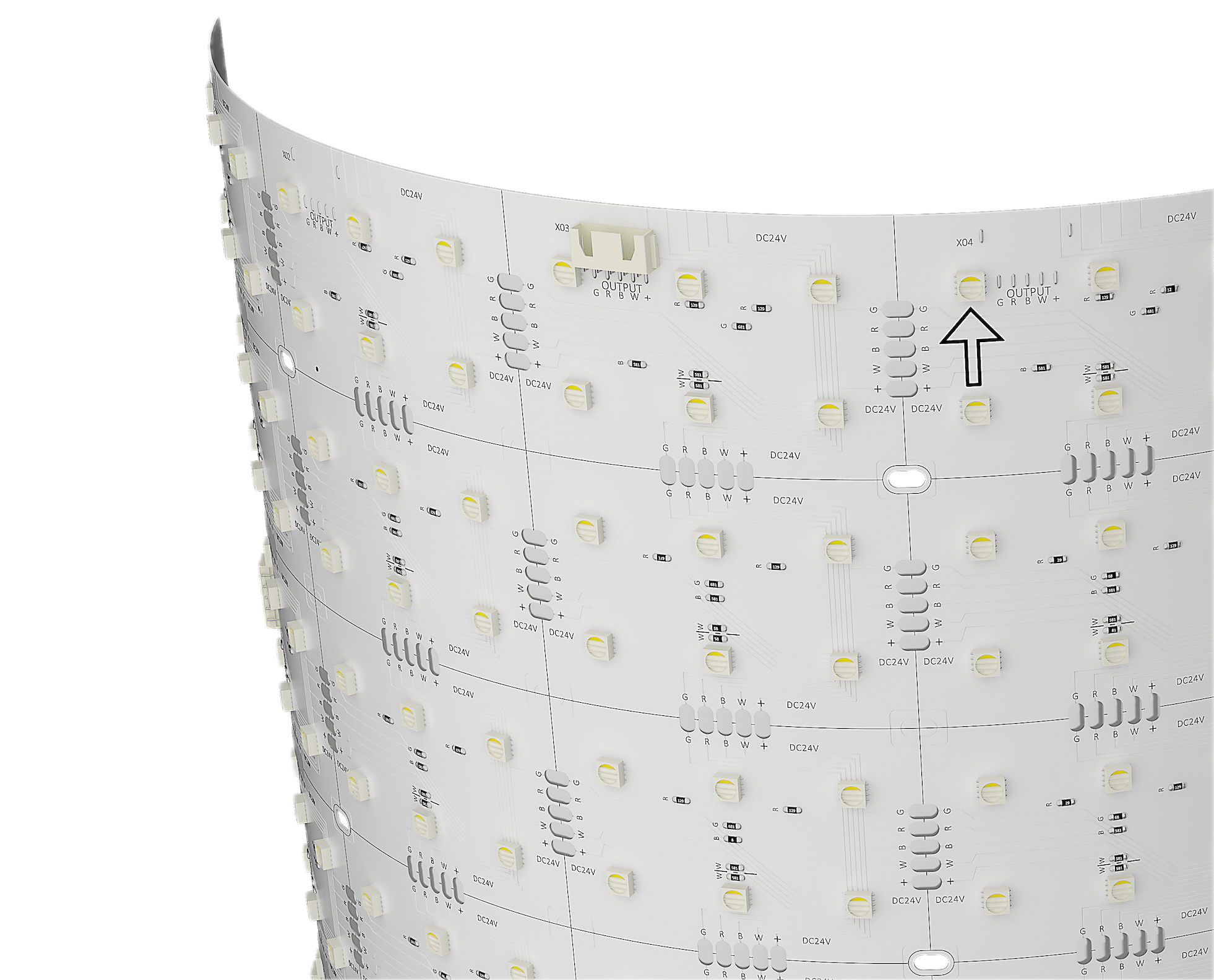

The FXP RGBW (PWM) Flexible Panel is a high-performance LED solution for architectural and signage applications. Integrated RGBW LEDs deliver precise mixing and strong lumen output for dynamic effects. Supports PWM, 0-10V, DALI, and DMX dimming — rated IP22.
| Electrical | |
|---|---|
| Power Consumption | 25.92 W (RGBW-162) / 46 W (RGBW-288) |
| Operating Voltage | 24 V DC |
| Operating Temperature | −25°C to +60°C (−13°F to +140°F) |
| Storage Temperature | −25°C to +70°C (−13°F to +158°F) |
| Physical | |
| Panel Dimensions | 480 mm (L) × 240 mm (H) |
| Unit Dimensions | 80 mm (L) × 53.5 mm (H) |
| Weight | 117 g |
| CRI | 80+ |
| Cuttable Units | Every LED Section for Tailored Installations |
| Finish | Flexible PCB with Protective Coating |
| Mounting Options | Screw-mounted, Adhesive-backed, or Framed |
| Connection | 5-Pin Signal Input and Output |
| Optical | |
| Beam Angle | 120° |
| Colour Range |
RGB
RGBW
|
| White CCT |
2200K
3000K
4000K
5000K
6000K
7000K
|
| Luminous Flux | 1034 lm @RGBW-162 / 2200 lm @RGBW-288 |
| Control | |
| Control Protocols |
DALI
DMX
PWM
0-10V
|
| Ratings | |
| Ingress Rating |
IP22
|
| Warranty | 3 Years (Extendable Warranty Available) |
Note: Specification summary for quick evaluation and layout planning. Panel size, LED count, control protocol, and mounting are configurable to suit your flexible panel installation.
FXP RGBW Flexible Panel Downloads
Interactive Configurator
Pick LED count, CCT, control protocol, power, and mounting. Get a build-ready FXP RGBW configuration for your install.
