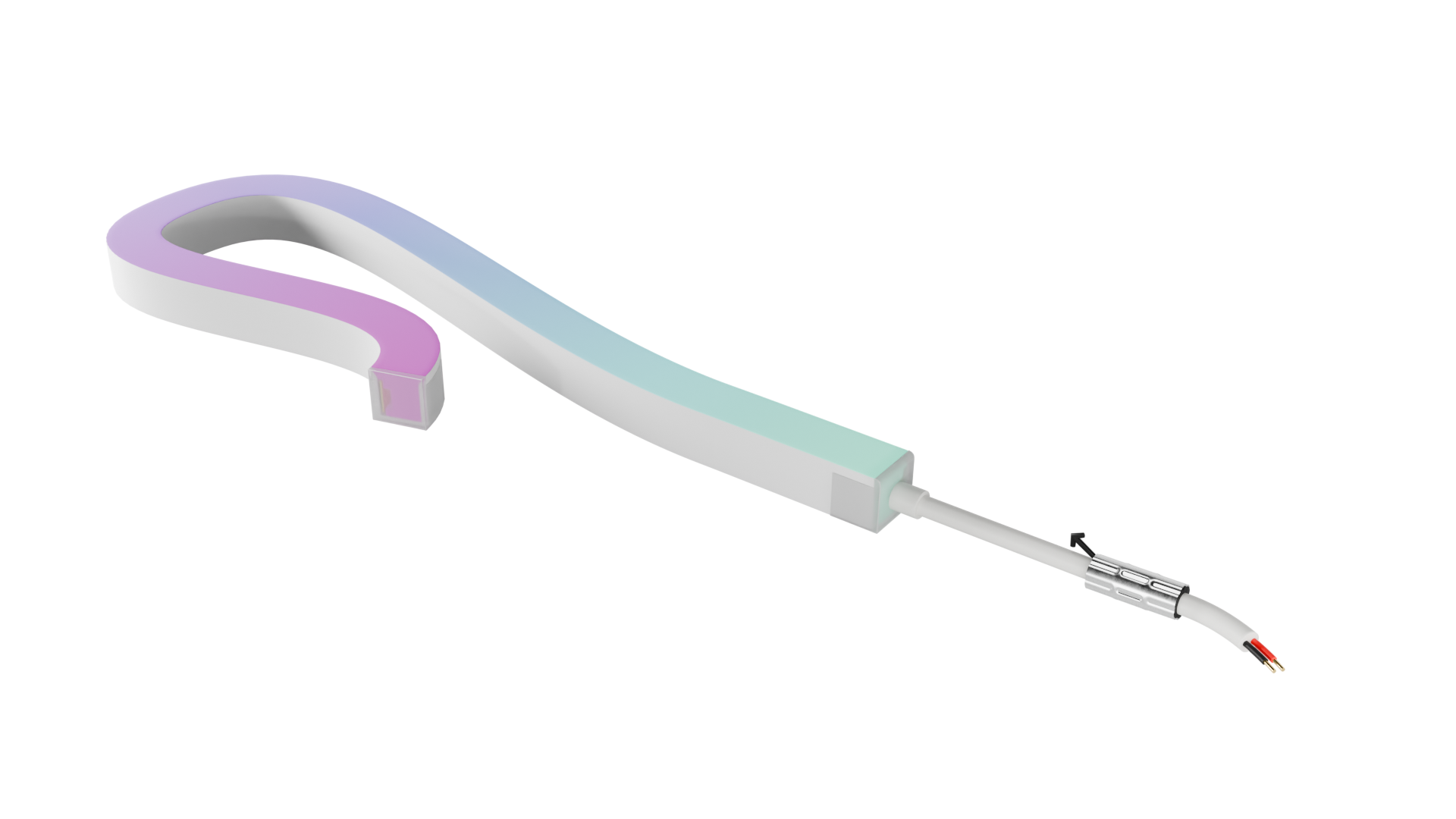

Flexible Silicone Strip

F N 2222

The FXN 2222 is a versatile, flexible LED lighting solution for architectural and commercial applications. With vibrant RGBW output and a durable, bendable silicone design, it offers IP67 water resistance and IK10 impact protection. Its flexible installation options and even illumination make it ideal for dynamic lighting designs.

Colour RGBW · RGB · DW · W
Build IP67 · IK10 · Silicone
Pixel 6 px/m · 10 px/m · 12 px/m
Control X-Stream · DMX · SPI

Configure Your Product View Specifications

Specifications Downloads Accessories Configurator

Key Specifications — FXN 2222 Flexible Neon

Electrical
Power Consumption	SPI – 16.5 W/m (RGB) · 22 W/m (RGBW) · DMX – 12 W/m (DW, RGB) · 15 W/m (W, RGBW) · X-Stream – 15 W/m
Operating Voltage	24 V DC
Operating Temperature	−40°C to +45°C (−40°F to +113°F)
Physical
Fixture Dimensions	(L) 1000 mm × (H) 22 mm × (W) 22 mm
Fixture Bending	Horizontal Bending
LEDs Qty / Unit	SPI – 7 LEDs/unit (RGBW, RGB) · DMX – 12 LEDs/unit (RGBW, RGB, DW, W) · X-Stream – 28 LEDs/unit
LEDs Qty / m	SPI – 84 LEDs/m (RGBW, RGB) · DMX – 72 LEDs/m (RGBW, RGB) · 84 LEDs/m (DW, W) · X-Stream – 280 LEDs/m
Min. Cutting Length	SPI – 83.3 mm (RGBW, RGB) · DMX – 166.7 mm (RGBW, RGB, DW, W) · X-Stream – 100 mm
Min. Bending Diameter	Ø300 mm (Horizontal Bend)
Pixel Density	SPI – 12 px/m (RGBW, RGB) · DMX – 6 px/m (RGBW, RGB, DW, W) · X-Stream – 10 px/m
Optical
Beam Angle	120°
Colour Range
White CCT	2200K 2700K 3000K 3500K 4000K 5700K
LED Type	EPISTAR SMD LED
LED Distance	16.67 mm
Control
Control Protocols	X-Stream DMX SPI
Ratings
Protection Ratings	IP67 IK10

Note: Standard specification summary for quick evaluation. Exact electrical values vary by colour option and power supply configuration. Contact us for full datasheet and variant-specific performance data.
