F N 1617

16 × 17 mm flexible neon with vertical bend (Ø300 mm) creates smooth architectural contours and continuous, dot-free illumination with robust performance for exterior applications.

  • Optics 16×17 mm · Dot-free
  • Bend Vertical · Ø300 mm
  • Build IP67 · IK10
  • Control RGBW · DMX/SPI

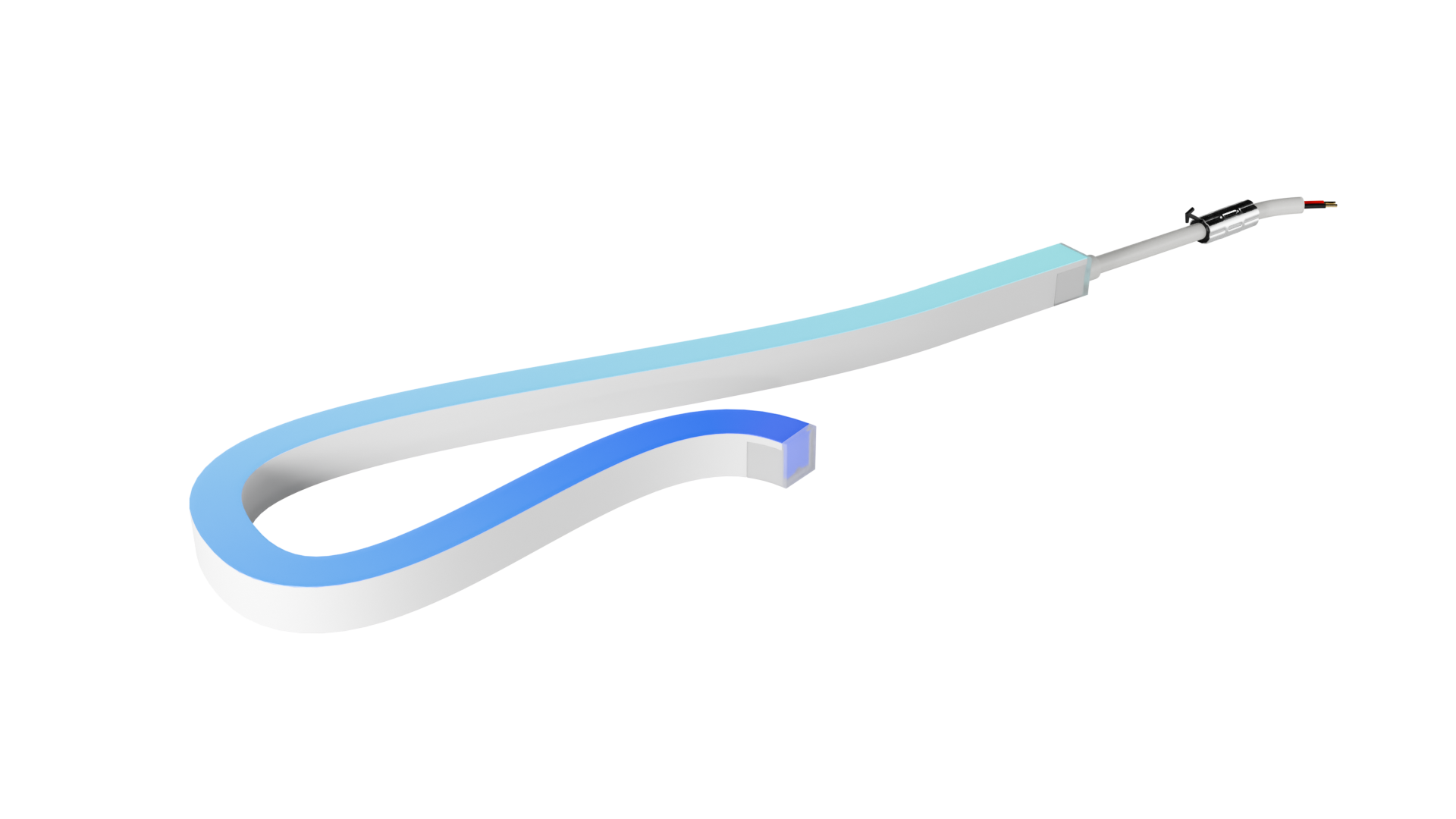

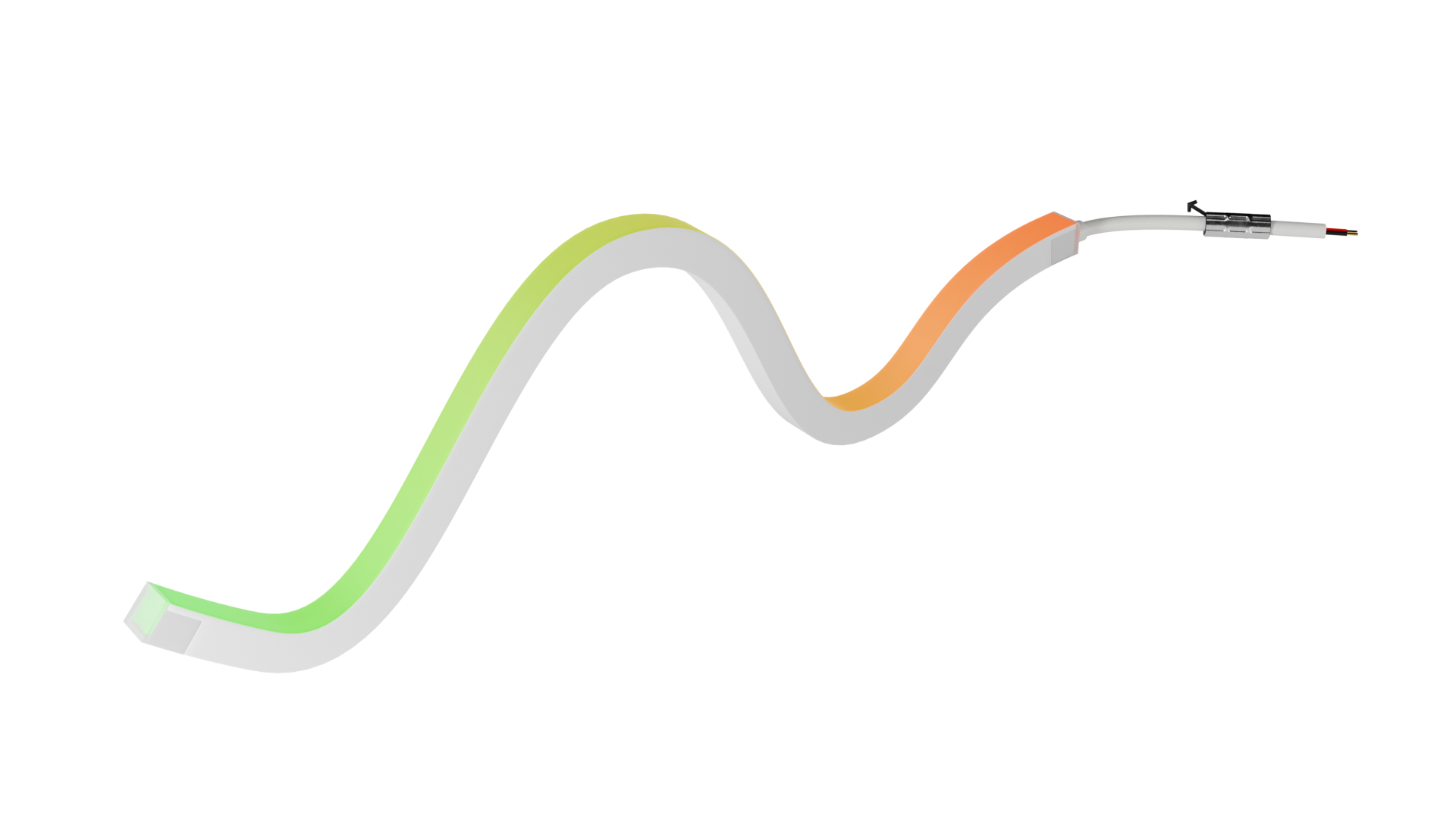

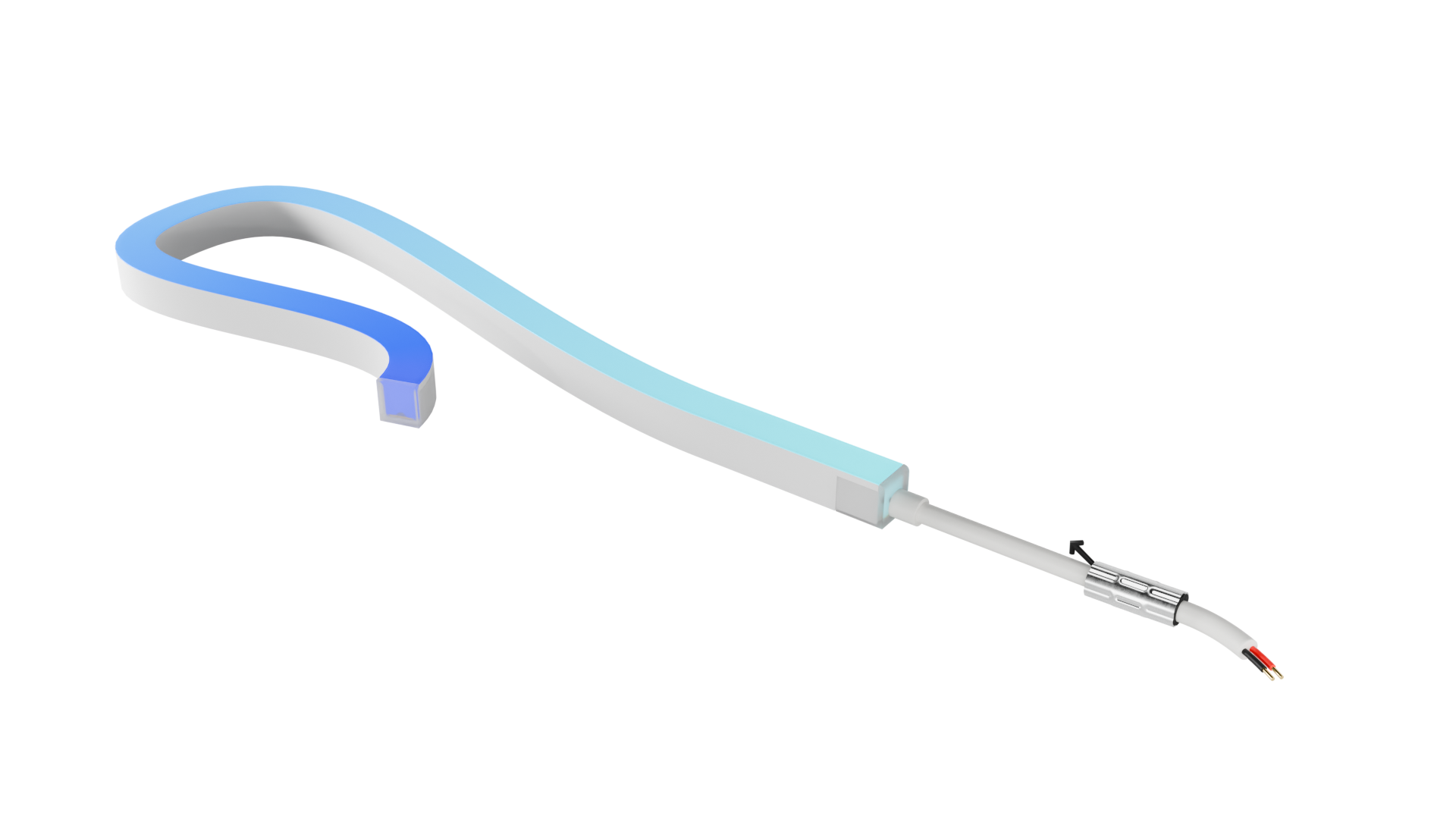

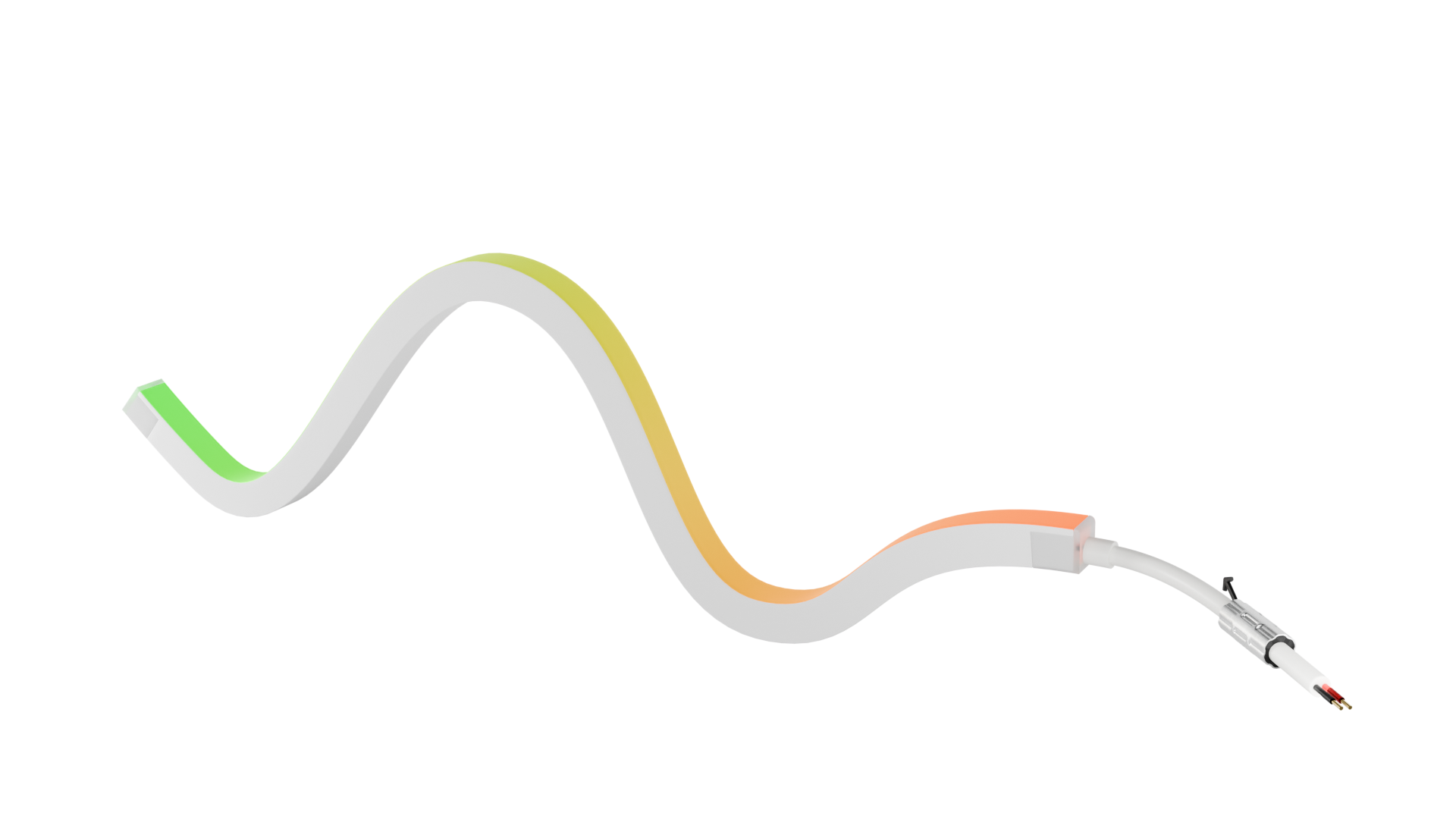

FXN 1617 flexible neon render

FXN 1617 Flexible Neon Key Specifications

FXN 1617 At a Glance Overview
  • Dimensions: 1000mm (L) × 16mm (W) × 17mm (H)
  • LED Colours: RGBW, RGB, White (2700K–5700K)
  • Beam Angle: 120° direct-view diffusion extrusion
  • Mounting Options: Aluminium, spring clip, hybrid, recessed & bendable profiles
  • Control Protocols: X-Stream SPI with redundancy, DMX512, SPI
FXN 1617 Dimensions
FXN 1617 Minimum Bend Diameter Inside
FXN 1617 Minimum Bend Diameter Outside

FXN 1617 Flexible Neon Key Specifications

FXN 1617 At a Glance Overview
  • Dimensions: 1000mm (L) × 16mm (W) × 17mm (H)
  • LED Colours: RGBW, RGB, White (2700K–5700K)
  • Beam Angle: 120° direct-view diffusion extrusion
  • Mounting Options: Aluminium, spring clip, hybrid, recessed & bendable profiles
  • Control Protocols: X-Stream SPI with redundancy, DMX512, SPI
FXN 1617 Dimensions
FXN 1617 Minimum Bend Diameter Inside
FXN 1617 Minimum Bend Diameter Outside

FXN 1617 Flexible Neon Key Specifications

FXN 1617 At a Glance Overview
  • Dimensions: 1000mm (L) × 16mm (W) × 17mm (H)
  • LED Colours: RGBW, RGB, White (2700K–5700K)
  • Beam Angle: 120° direct-view diffusion extrusion
  • Mounting Options: Aluminium, spring clip, hybrid, recessed & bendable profiles
  • Control Protocols: X-Stream SPI with redundancy, DMX512, SPI
FXN 1617 Dimensions
FXN 1617 Minimum Bend Diameter Inside
FXN 1617 Minimum Bend Diameter Outside

FXN 1617 Flexible Neon Downloads

Specifications

FXN1617_Neon_Specifications_Sheet.pdf

Installation Guide

FXN1617_Neon_Installation_Guide.pdf

User Manual

FXN1617_Neon_User_Manual(VB).pdf FXN1617_Neon_User_Manual(HB).pdf FXN1617_Neon_Waterproof_User_Guide.pdf

Optical Data

FXN1617_Neon_IES_Files.zip FXN1617_Neon_Photometric_Files.zip FXN1617_Neon_Shpere_Files.zip

Resources

FXN1617_Neon_Standard_Packaging.pdf FXN1617_Neon_Operating_Instructions_Profile.pdf

FXN 1617 Flexible Neon Accessories

Profiles, connectors, and hardware designed for clean installs and long service life.

FXN 1617 Mounting Profiles

Aluminium Profile

Aluminium Profile

Rigid base channel for clean, aligned runs.
Flange Aluminium Profile

Flange Aluminium Profile

Slim flange for surface-finish integration.
Thickened Plastic Profile

Thickened Plastic Profile

Impact-resistant profile for lightweight installs.
Stainless Steel Profile

Stainless Steel Profile

Durable stainless channel for demanding sites.
Self-clinching Aluminium Profile

Self-clinching Aluminium Profile

Fast self-clinch mounting for secure retention.
Bendable Self-clinching Aluminium Profile

Bendable Self-clinching Aluminium Profile

Curvable self-clinch track for gentle radii and arcs.
Serrated Aluminium Profile

Serrated Aluminium Profile

Positive-lock serrations for stable aiming.
Flange Serrated Aluminium Profile

Flange Serrated Aluminium Profile

Flanged edges for tidy reveals and trims.
Bendable Serrated Aluminium Profile

Bendable Serrated Aluminium Profile

Curvable track for arcs and transitions.
Surface-mounted Raceway Aluminium Profile

Surface-mounted Raceway Aluminium Profile

Low-profile raceway for neat surface runs.
Suspended Raceway Aluminium Profile

Suspended Raceway Aluminium Profile

Clean overhead suspension channel for long runs.
Bendable Anole Profile

Bendable Anole Profile

Flexible profile for creative routing.

FXN 1617 Connectors

Swivel Connector

Swivel Connector

Adjustable angle for neat transitions.
Snap Connector

Snap Connector

Quick snap-fit for fast on-site assembly.
Socket Connector

Socket Connector

Positive-fit socket for reliable joins.
Silicone Injection-moulded Connector IP68-UL676

Silicone Injection-moulded Connector (IP68, UL-676)

Silicone-sealed system for robust weatherproofing.
Dual Injection-moulded Connector IP68 UL-676

Dual Injection-moulded Connector (IP68, UL-676)

Dual-seal construction for sealed outdoor joins.

FXN 1617 Accessories

Pivot Mounting Bracket

Pivot Mounting Bracket

Smooth tilt for directional accents.
Rotary Locking Bracket

Rotary Locking Bracket

Quick set-and-lock angle control.
Side Mounting Bracket

Side Mounting Bracket

Edge mounting for tight clearances.
Linear Joining Clip

Joining Bracket

Linear clips for continuous runs.
Ceiling Mounting Clip

Ceiling Mounting Clip

Low-profile clip for ceiling mounting.
Suspended Mounting Clip

Suspended Mounting Clip

Fast clip for suspended installations.
Cable-exit Mounting Clip

Cable-exit Mounting Clip

Neat cable egress for clean finishes.
Suspended Mounting Wire

Suspended Mounting Wire

Tidy overhead suspension hardware.
