B S 10

A compact, high-performance architectural spotlight delivering precise illumination for façades, signage, and structural accents. Built from anodised aluminium with tempered glass and rated IP66/IK07, it offers versatile optics, colour options, and control protocols for reliable, dynamic outdoor lighting.

  • Beam angles 10°, 25°, 40°, 20°×40°, 10°×35°, 10°×60°, 30°×60°
  • Beam angles
    10°, 25°, 40°, 20°×40°
    10°×35°, 10°×60°, 30°×60°
  • Controls: SPI / DMX / PWM / DALI / X-Stream
  • Outdoor build: IP66 / IK07 · anodised aluminium · tempered lens
  • Mounts & accessories: Bracket / Landscape Spike

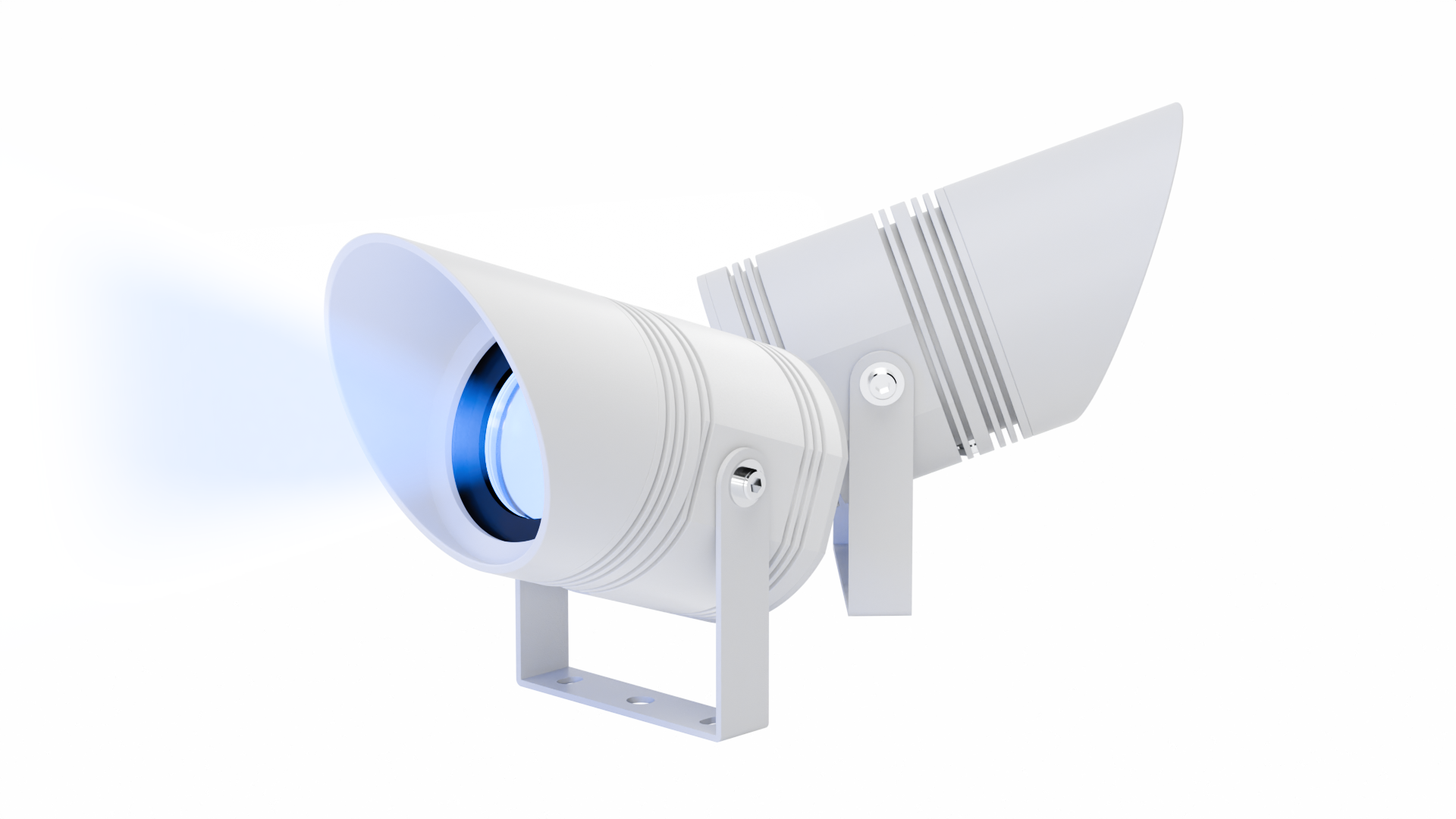

BXS 10 Spotlight render

BXS10 Spotlight Key Specifications

BXS10 At a Glance Overview
  • Dimensions: Ø85mm × 93mm body, excluding mounting and accessories.
  • LED Colours: RGB, RGBW, RGBA, Dynamic White (2200K–5000K), Static White (2400K–6000K).
  • Beam Angles: 10°, 25°, 40°, 20×40°, 10×35°, 10×60°, 30×60° lens options.
  • Mounting Options: Bracket or Landscape Spike, customisable by project.
  • Control Protocols: X-Stream, SPI, DMX, PWM, or DALI (depending on variant).
BXS10 Full Snoot Dimensions
BXS10 No Snoot Dimensions
BXS10 Half Snoot Dimensions

BXS10 Spotlight Key Specifications

BXS10 At a Glance Overview
  • Dimensions: Ø85mm × 93mm body, excluding mounting and accessories.
  • LED Colours: RGB, RGBW, RGBA, Dynamic White (2200K–5000K), Static White (2400K–6000K).
  • Beam Angles: 10°, 25°, 40°, 20×40°, 10×35°, 10×60°, 30×60° lens options.
  • Mounting Options: Bracket or Landscape Spike, customisable by project.
  • Control Protocols: X-Stream, SPI, DMX, PWM, or DALI (depending on variant).
BXS10 Full Snoot Dimensions
BXS10 No Snoot Dimensions
BXS10 Half Snoot Dimensions

BXS10 Spotlight Key Specifications

BXS10 At a Glance Overview
  • Dimensions: Ø85mm × 93mm body, excluding mounting and accessories.
  • LED Colours: RGB, RGBW, RGBA, Dynamic White (2200K–5000K), Static White (2400K–6000K).
  • Beam Angles: 10°, 25°, 40°, 20×40°, 10×35°, 10×60°, 30×60° lens options.
  • Mounting Options: Bracket or Landscape Spike, customisable by project.
  • Control Protocols: X-Stream, SPI, DMX, PWM, or DALI (depending on variant).
BXS10 Full Snoot Dimensions
BXS10 No Snoot Dimensions
BXS10 Half Snoot Dimensions

BXS 10 Spotlight Downloads

Specifications

BXS10_Spotlight_Specifications_Sheet.pdf

BXS10 Accessories

Mounting and glare-control accessories designed for the BXS10 Architectural Spotlight.

BXS10 — Adjustable Surface Bracket

Adjustable Surface Bracket

BXS10 — Multi-angle mounting for walls or ceilings.
BXS10 — Ground Spike

Ground Spike

BXS10 — Compact in-ground spike for landscape use.

BXS10 — Half Snoot

Half Snoot

BXS10 — Directional glare shield for controlled beam edges.
BXS10 — Full Snoot

Full Snoot

BXS10 — Full-depth glare snoot for narrow beam control.
