Corridor Light

B C IG

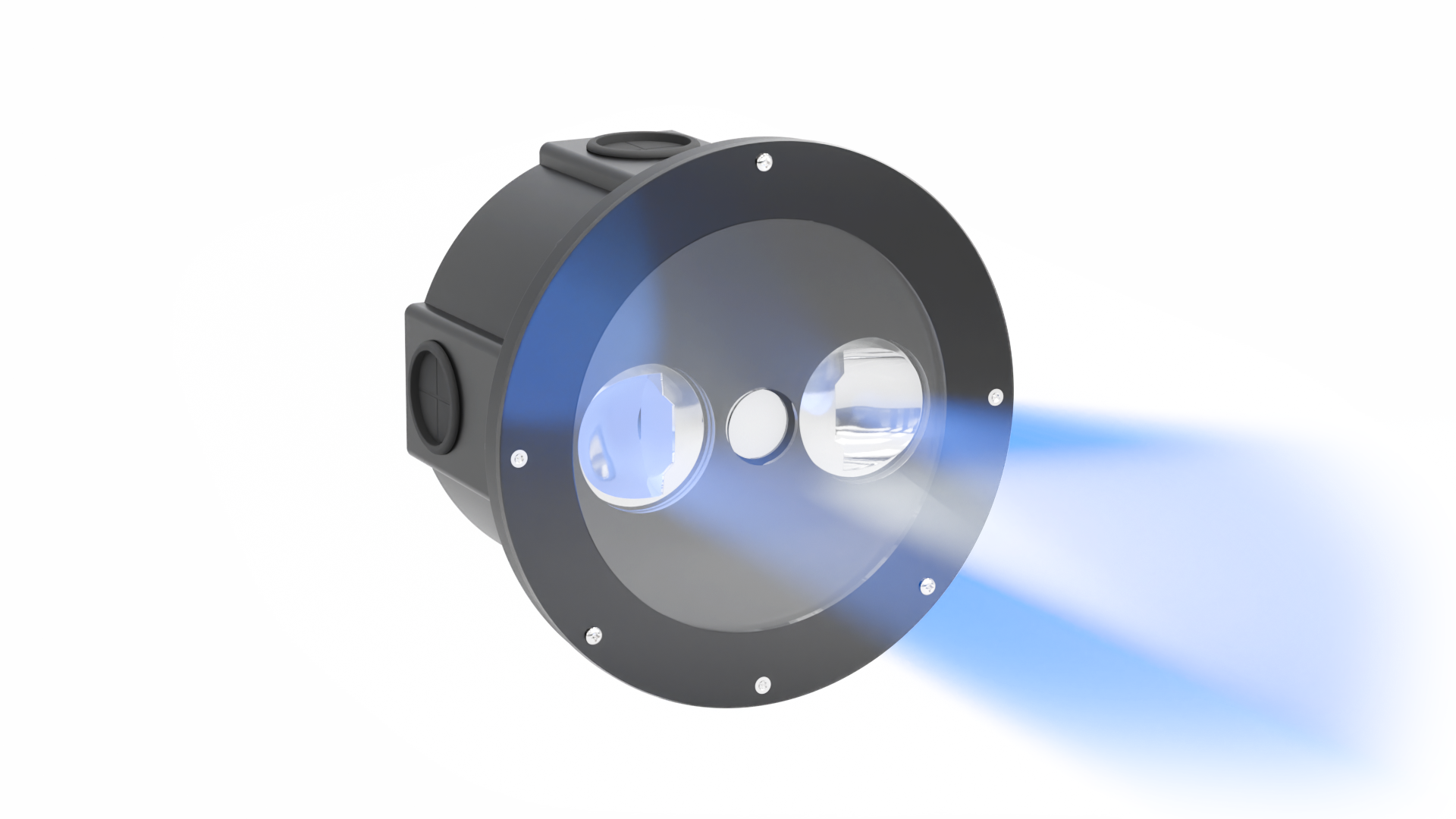

The BXC In-Ground Corridor Light is engineered for discreet integration along pathways, entrances, and public-realm edges, delivering seamless illumination without visible fixtures. A tri-optic system combines dual wall-wash outputs with a defined centre beam for clear directional guidance. Die-cast aluminium with tempered glass, IP67 rated.

Colour RGBW, RGBA, RGBL
Optics Wall Wash · Spot
Build IP67
Control X-Stream · DMX · DALI

Configure Your Product View Specifications

1 / 2

Specifications Downloads Configurator

Key Specifications · BXC IG Corridor Light

Electrical
Power Consumption	15 W or 30 W
Driver Input	100–277 V AC (Corridor Driver)
Operating Temperature	−20°C to +50°C (−4°F to +122°F)
Storage Temperature	−20°C to +70°C (−4°F to +158°F)
Physical
Fixture Dimensions	Ø260 mm × 154 mm (H)
Housing	Die-cast Aluminium with Tempered Glass
Driver Dimensions	189 mm (L) × 65 mm (W) × 52 mm (H)
Source Life	50,000–70,000 hours / L70 at 25°C
Connection	8-pin cable (fixture) · 6-pin AC/DMX cable input (driver)
Optical
Beam Angle	Left / Right — Wall Wash · Centre — Spot
Left / Right Side Colour
Centre Colour	Amber 2400K 2700K 3000K 4000K 6000K
White CCT	2400K 2700K 3000K 4000K 6000K
Control
Control Protocols	X-Stream DMX DALI
Ratings
Ingress Rating	IP67
Warranty	5 Years (Extendable Warranty Available)

Note: Specification summary for quick evaluation and layout planning. Left/centre/right colour, CCT, control, and power are configurable to suit your in-ground corridor installation.
